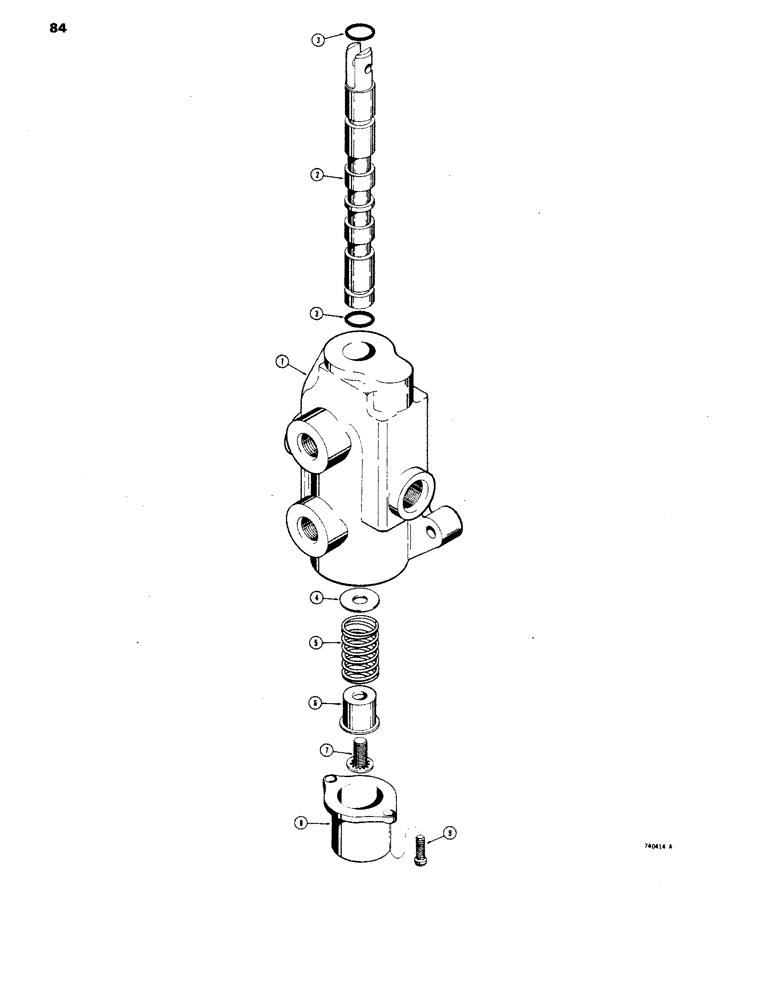

Запчасти Case 1816 (84) - D58594 AUXILIARY HYDRAULIC VALVE - 1 SPOOL (35) - HYDRAULIC SYSTEMS

D58594

SPARE PART

VALVE ASSEMBLY, one spool, Includes: Ref. 1 - 9

1шт.

1

NSS

NOT SOLD SEPARAT

BODY valve

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL valve

1шт.

3

D40816

O-RING

SEAL "o"ring

2шт.

4

195-521

WASHER,5/16", SAE

KIT, spring, Includes: Ref. 5 - 8

1шт.

5

C18850

VALVE SPRING

WASHER flat, plated, 5/16"

1шт.

6

C13200

SPACER

RETAINER spring

1шт.

7

193-524

SCREW AND LOCK WASHER slotted round head, external tooth, plated, 10 - 32 NC x 3/8" SEMS, Hex Soc Hd, #10-32 x 3/8"

1шт.

8

C18847

CAP

spool

1шт.

9

169-114

SCREW,Sl Fil Hd, #12 - 24 x 3/8"

round head, fillister slotted, 12 - 24 NC x 3/8"

2шт.
