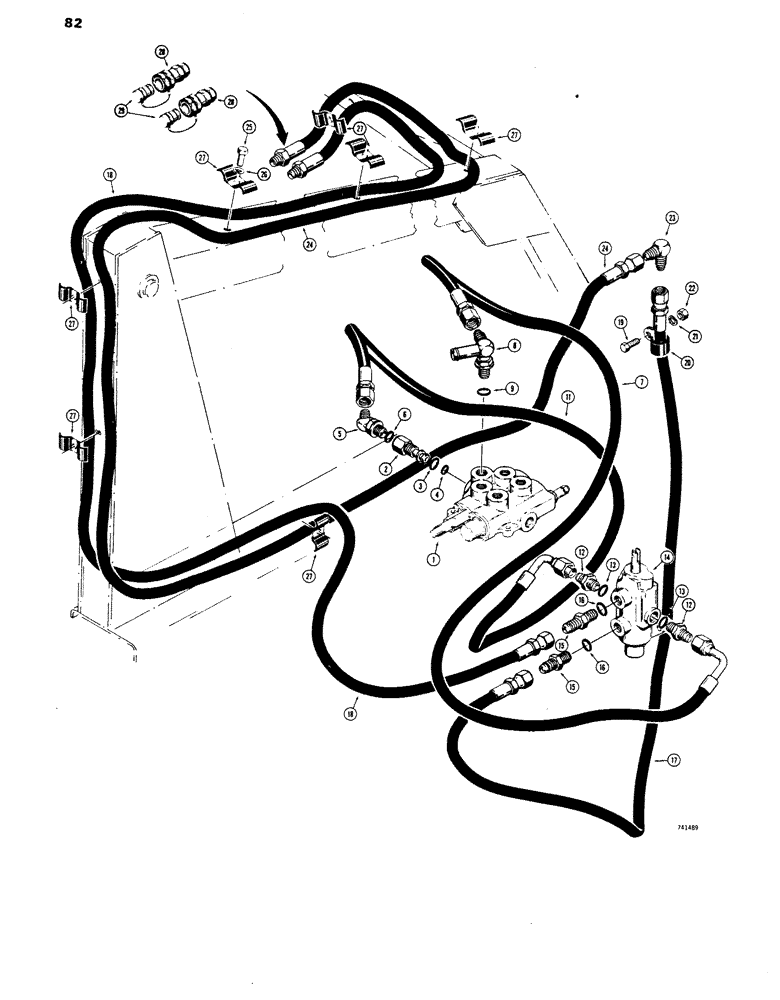

Запчасти Case 1816 (82) - AUXILIARY HYDRAULIC CIRCUITS, USED TRACTOR SERIAL NO. 9826660 AND AFTER (35) - HYDRAULIC SYSTEMS

1

D61409

CONTROL VALVE

VALVE loader control, See Figure 73A

1шт.

2

D61619

CONNECTOR, ELEC

CONNECTOR power beyond, Includes: Ref. 3 - 4

1шт.

3

A30097

O-RING,0.549" ID x 0.755" OD x 0.103"

SEAL "o"ring, large

1шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL "o"ring, small

1шт.

5

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

adjustable, male, 45 degree, Incl. Ref 6

1шт.

7

D65682

HOSE

ASSEMBLY, 38" long

1шт.

8

D60793

FITTING

TEE special, Includes: Ref. 9

1шт.

10

NSS

NOT SOLD SEPARAT

RESERVED

1шт.

11

D65682

HOSE

hydraulic

1шт.

12

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

CONNECTOR straight, Includes: Ref. 13

2шт.

13

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, seal

1шт.

14

L58594

VALVE auxiliary, See Figure 84

1шт.

15

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR straight, male, Incl. Ref. 16

2шт.

16

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, seal

1шт.

17

D62398

HOSE

hydraulic, at valve, lower port, 22" long

1шт.

18

D64488

HOSE

hydraulic, at valve, upper port, 62" long

1шт.

19

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

20

C15525

CLIP

CLAMP hose

1шт.

21

92-5

LOCK WASHER,5/16"

1шт.

22

9635082

NUT,5/16" - 18, Gr 5

hex, 5/16" - 18 NC

1шт.

23

218-473

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male JIC

male, 90 degree

1шт.

24

D62400

HOSE hydraulic, to valve, lower port, 38" long

1шт.

25

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

8шт.

26

92-5

LOCK WASHER,5/16"

8шт.

27

R17319

CLAMP

hose

8шт.

28

D60707

COUPLING, BREAK AWAY

COUPLING quick disconnect, female

2шт.

29

D62402

PLUG

dust

2шт.

6

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL "o"ring

1шт.

9

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL "o"ring

1шт.
