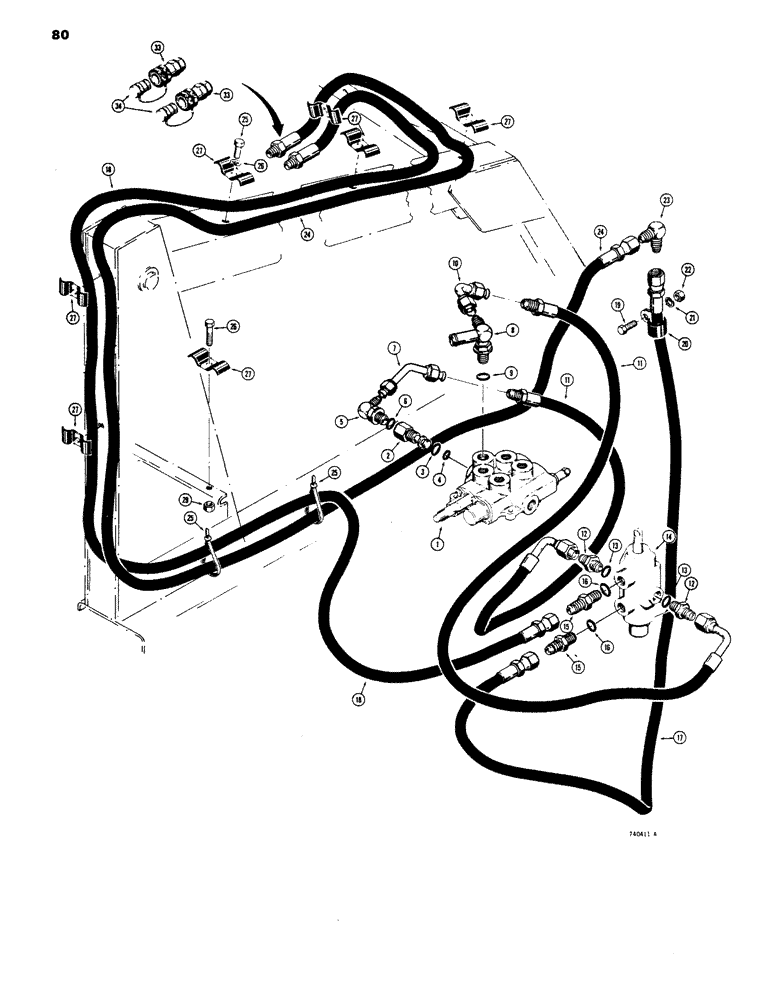

Запчасти Case 1816 (80) - AUXILIARY HYDRAULIC CIRCUITS, USED BEFORE TRACTOR SERIAL NO. 9826660 (35) - HYDRAULIC SYSTEMS

1

D61409

CONTROL VALVE

VALVE loader control, See Figure 73A

1шт.

2

D61619

CONNECTOR, ELEC

CONNECTOR power beyond, Includes: Ref. 3 - 4

1шт.

3

A30097

O-RING,0.549" ID x 0.755" OD x 0.103"

SEAL "o"ring, large

1шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL "o"ring, small

1шт.

5

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

adjustable, male, 90 degree, Includes: Ref. 6

1шт.

7

D65794

TUBE

hydraulic, power beyond

1шт.

8

D60793

FITTING

TEE special, Includes: Ref. 9

1шт.

10

D65796

TUBE

hydraulic, return

1шт.

11

D65682

HOSE

ASSEMBLY, 38" long

2шт.

12

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

CONNECTOR straight, male, Includes: Ref. 13

2шт.

13

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, seal

1шт.

14

D58594

SPARE PART

VALVE auxiliary, See Figure 84

1шт.

15

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR straight, male, Incl. Ref. 16

2шт.

16

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, seal

1шт.

17

D62398

HOSE

hydraulic, at valve, lower port, 22" long

1шт.

18

D60841

HOSE

hydraulic, at valve, upper port, 175" long

1шт.

19

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

20

C15525

CLIP

CLAMP hose

1шт.

21

92-5

LOCK WASHER,5/16"

1шт.

22

9635082

NUT,5/16" - 18, Gr 5

hex, 5/16" - 18 NC

1шт.

23

218-473

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male JIC

male, 90 degree

1шт.

24

D62399

HOSE

hydraulic to valve, lower port, 95" long

1шт.

Ref 24 - Is 144" Long

1шт.

25

L11541

CABLE TIE,203.2mm L, Nylon

STRAP tie

2шт.

26

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

5/16"-18 NC x 1-1/2"

1шт.

27

R17319

CLAMP

hose

1шт.

28

NSS

NOT SOLD SEPARAT

RESERVED

1шт.

29

131-651

NUT,5/16"-18, GB

HUT hex, lock, 5/16" - 18 NC

1шт.

30

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

7шт.

31

92-5

LOCK WASHER,5/16"

7шт.

32

R17319

CLAMP

hose

7шт.

33

D60707

COUPLING, BREAK AWAY

COUPLING quick disconnect, female

2шт.

34

D62402

PLUG

dust

2шт.

6

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL "o"ring

1шт.

9

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL "o"ring

1шт.
