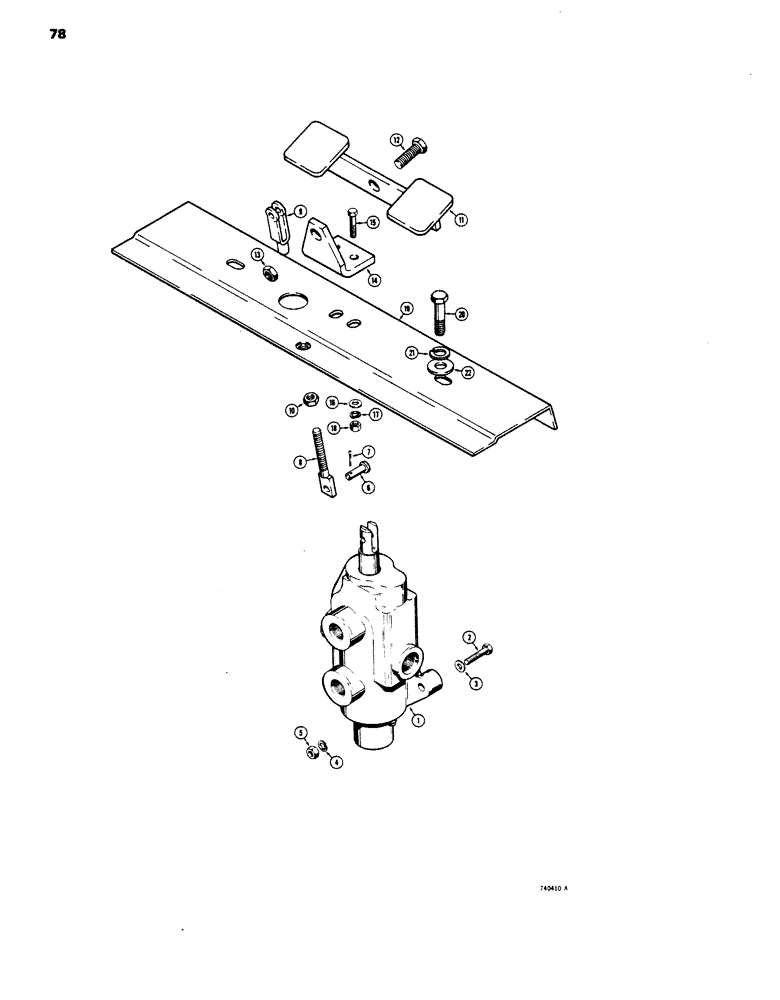

Запчасти Case 1816 (78) - AUXILIARY HYDRAULIC CONTROLS (35) - HYDRAULIC SYSTEMS

1

D58594

SPARE PART

VALVE auxiliary, See Figure 84

1шт.

2

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.

3

195-18

WASHER,1/4"

plain, 1/4"

2шт.

4

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

5

25-104

NUT,1/4"-20, G5

2шт.

6

141-2

CLEVIS PIN,1/4" x .770"

PIN clevis, 1/4" diameter

2шт.

7

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

2шт.

8

D59100

ROD

, Serial Range: valve-pedal

1шт.

9

213-2

ADJUSTABLE CLEVIS,1/4"-28 x 2"

YOKE clevis

1шт.

10

25-114

NUT,1/4"-28, G5

hex, 1/4" - 28 NF

1шт.

11

D60812

PEDAL

control

1шт.

12

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

13

131-654

LOCK NUT,1/2"-13, GB

NUT hex, lock, 1/2" - 13 NC

1шт.

14

D59099

BRACKET

pedal mounting

1шт.

15

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

16

195-21

WASHER,5/16"

- flat, 5/16

2шт.

17

92-5

LOCK WASHER,5/16"

2шт.

18

9635082

NUT,5/16" - 18, Gr 5

hex, 5/16" - 18 NC

2шт.

19

D76056

LARGE PLATE

PLATE floor, models with auxiliary hydraulics only

1шт.

20

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

21

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

22

195-104

WASHER,3/8"

plain, zinc plated, 3/8"

2шт.
