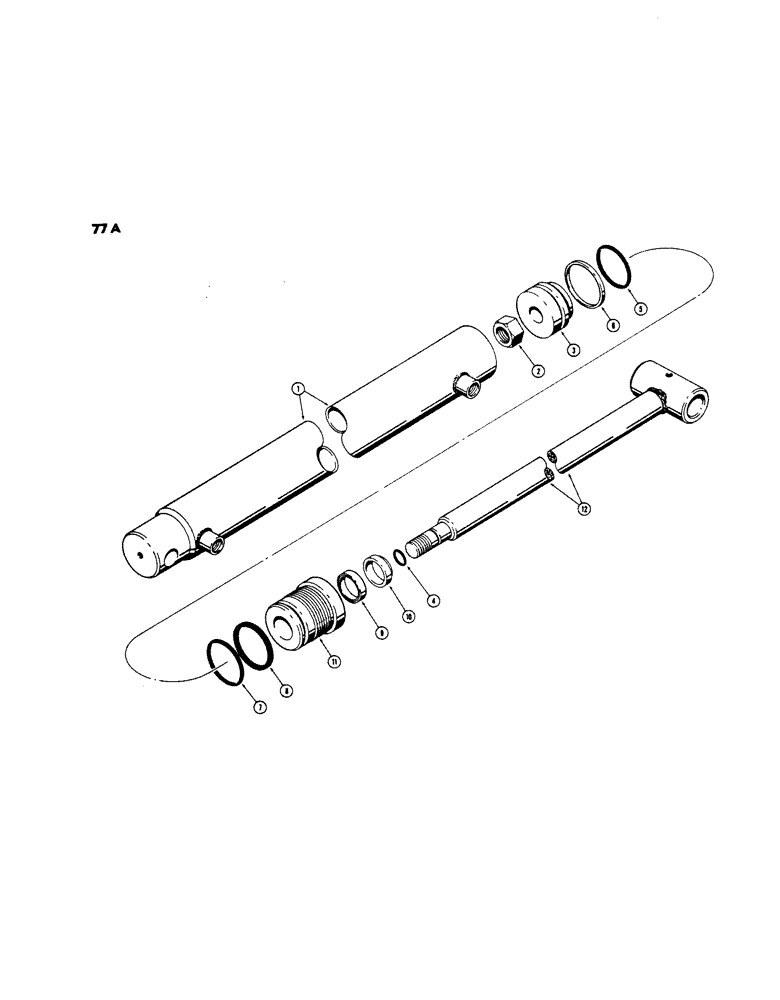

Запчасти Case 1816 (77A) - D58574 BUCKET CYLINDER, RODGERS CYLINDER, HAS SPUDS AT HYDRAULIC PORTS (35) - HYDRAULIC SYSTEMS

D58574

CYLINDER BLOCK

CYLINDER hydraulic, dump, 2" I.D. x 13" stroke, Includes: Ref. 1 - 12

2шт.

1

D61000

TUBE

cylinder

1шт.

2

25-1512

JAM NUT,Jam, 3/4"-10, G5

hex, jam, 3/4" - 16 NF

1шт.

3

D60996

PISTON

tube

1шт.

D61006

GASKET KIT

KIT, seal, cylinder, Includes: Ref. 4 - 10

1шт.

4

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

SEAL "o"ring, piston, inner

1шт.

5

D26820

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

SEAL "o"ring, piston, outer

1шт.

6

D60995

RING

piston

1шт.

7

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

SEAL "o"ring, gland

1шт.

8

D60998

WASHER

back up

1шт.

9

D60999

WIPER SEAL

WIPER "u" cup, inner gland

1шт.

10

D60997

WIPER SEAL

WIPER rod, outer gland

1шт.

11

D61002

GLAND

cylinder

1шт.

12

D61001

ROD

cylinder, 1" O.D.

1шт.
