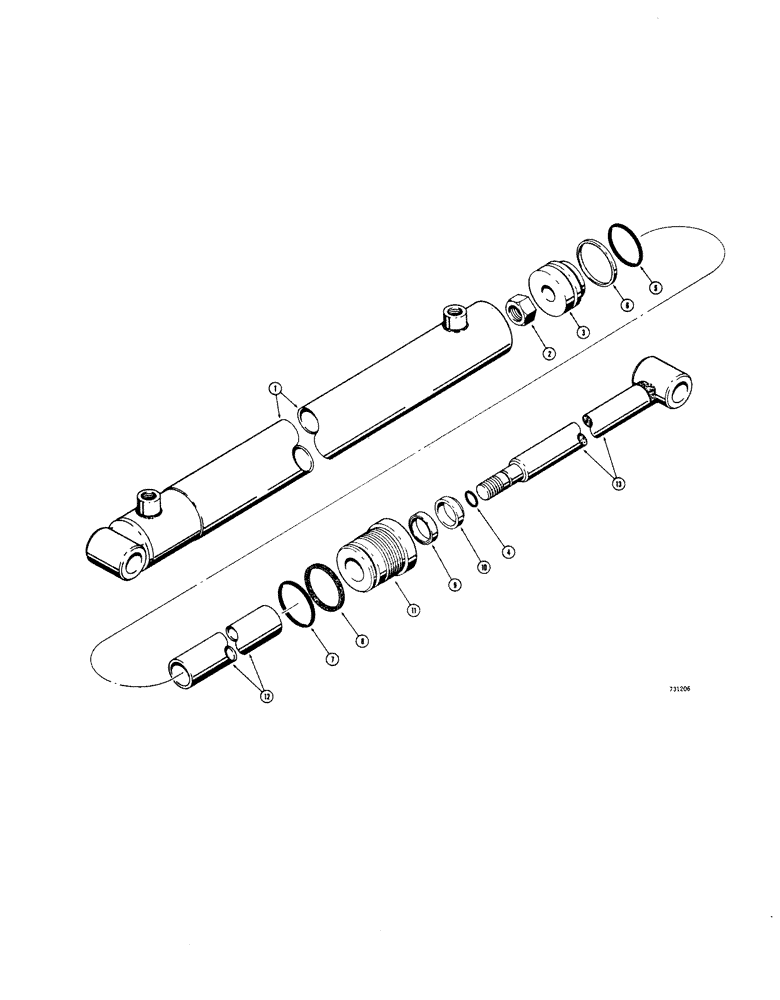

Запчасти Case 1816 (77A[1]) - D58575 AND D63235 LOADER LIFT CYLINDERS RODGERS CYLINDER HAS SPUDS AT HYDRAULIC PORTS (35) - HYDRAULIC SYSTEMS

D58575

CYLINDER

hydraulic, lift, 2" I.D. x 27" stroke, used before tractor serial number 9823189

2шт.

D63235

CYLINDER BLOCK

CYLINDER hydraulic, lift, 2" I.D. x 27" stroke, used tractor serial number 9823189, Includes: Ref. 1 - 13

2шт.

1

D61003

TUBE

D58575 cylinder

1шт.

1

D63360

TUBE

D63235 cylinder

1шт.

2

25-1512

JAM NUT,Jam, 3/4"-10, G5

hex, jam, 3/4" - 16 NF

1шт.

3

D60996

PISTON

tube

1шт.

D61006

GASKET KIT

KIT, seal, cylinder, Includes: Ref. 4 - 10

1шт.

4

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

SEAL "o"ring, piston, inner

1шт.

5

D26820

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

SEAL "o"ring, piston, outer

1шт.

6

D60995

RING

piston

1шт.

7

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

SEAL "o"ring, gland

1шт.

8

D60998

WASHER

back up

1шт.

9

D60999

WIPER SEAL

WIPER "u" cup, inner gland

1шт.

10

D60997

WIPER SEAL

WIPER rod, outer gland

1шт.

11

D61002

GLAND

cylinder

1шт.

12

D61005

SPACER

STOP tube

1шт.

13

D61004

PISTON ROD

ROD, D58575 cylinder, 1" O.D.

1шт.

13

D63359

PISTON

ROD, D63360 cylinder 1" O.D.

1шт.
