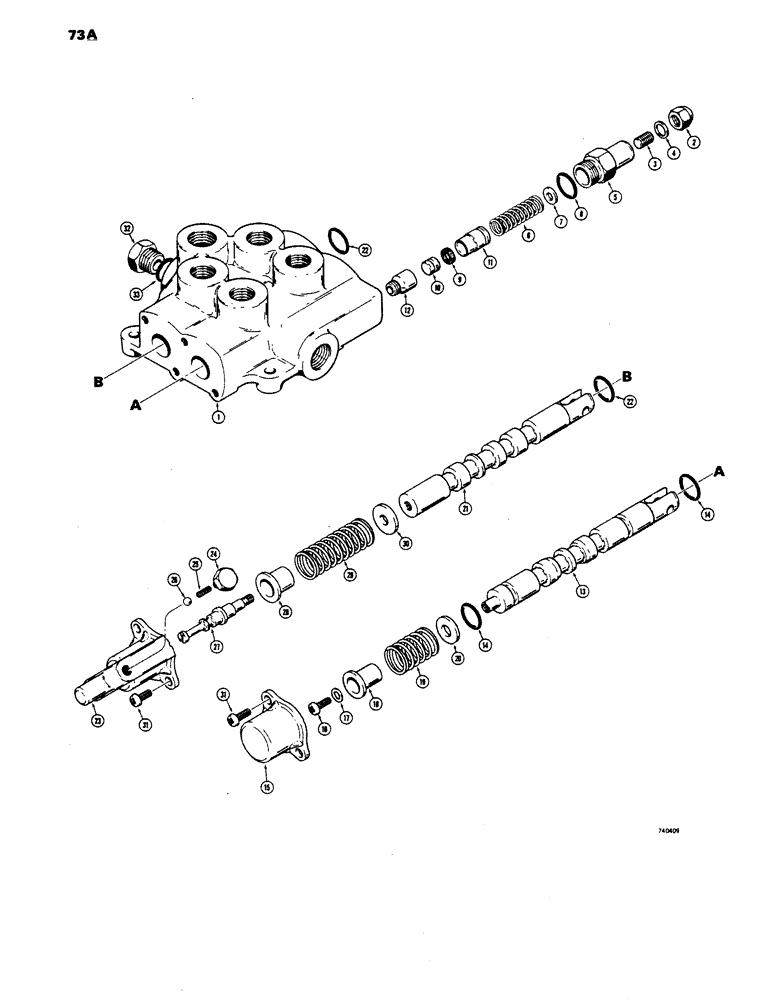

Запчасти Case 1816 (73A) - D61409 HYDRAULIC CONTROL VALVE, USED TRACTOR SERIAL NO. 9823151 AND AFTER (35) - HYDRAULIC SYSTEMS

D61409

CONTROL VALVE

VALVE ASSEMBLY, 2 spool. DUKES DV20-JS-EH-16NB, Includes: Ref. 1 - 33

1шт.

1

NSS

NOT SOLD SEPARAT

BODY valve

1шт.

2

D59380

NUT

acorn

1шт.

3

D59379

SCREW

set

1шт.

4

D59378

WASHER

special

1шт.

Part of Seal Kit P/N D61920

1шт.

5

D59377

HEAD (CYLINDER)

HEAD relief valve

1шт.

6

D59375

SPRING

poppet

1шт.

7

D59658

WASHER

Teflon

1шт.

8

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

SEAL "o"ring

1шт.

Part of Seal Kit P/N D61920

1шт.

9

A27358

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

SEAL pin

1шт.

Part of Seal Kit P/N D61920

1шт.

10

D59371

LARGE PIN

PIN poppet

1шт.

11

D59369

VALVE POPPET

POPPET relief valve

1шт.

12

D59370

SEAT

poppet

1шт.

13

NSS

NOT SOLD SEPARAT

SPOOL letter A, 1

1шт.

14

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

SEAL spool

2шт.

Part of Seal Kit P/N D61920

1шт.

C18846

KIT

spring, centering, Includes: Ref. 15 - 20

1шт.

15

C18847

CAP

spool end

1шт.

16

193-524

SCREW round head slotted, 10 - 32 NF x 3/8", external tooth SEMS, Hex Soc Hd, #10-32 x 3/8"

1шт.

17

195-510

WASHER,#8

plain, plated, 5/16"

1шт.

18

C13200

SPACER

RETAINER spring

1шт.

19

C18850

VALVE SPRING

SPRING spool return

1шт.

20

195-521

WASHER,5/16", SAE

plain, plated, 5/16"

1шт.

21

NSS

NOT SOLD SEPARAT

SPOOL letter B, detent, 2

1шт.

22

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

SEAL spool

2шт.

Part of Seal Kit P/N D61920

1шт.

D60880

SPRING

KIT, spring, centering, Includes: Ref. 23 - 30

1шт.

23

C17438

COVER

CAP spool end

1шт.

24

C17443

SCREW,5/16" - 24 x 3/16"

special, detent

2шт.

25

C17444

SPRING

detent

2шт.

26

211-7

BALL,1/4" Dia

- steel 1/4" Dia

2шт.

27

C17439

VALVE

DETENT spool

1шт.

28

C13200

SPACER

RETAINER spring

1шт.

29

C17441

SPRING

spool return

1шт.

30

C17440

WASHER

special

1шт.

31

169-114

SCREW,Sl Fil Hd, #12 - 24 x 3/8"

fillister head, slotted, 12 - 24 NC x 3/8"

4шт.

32

D61919

PLUG

hex

1шт.

33

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL "o"ring

1шт.

Part of Seal Kit P/N D61920

1шт.

D61920

SEAL

KIT, seal, Includes: Ref. 4, 8, 9, 14, 22 and 33

1шт.
