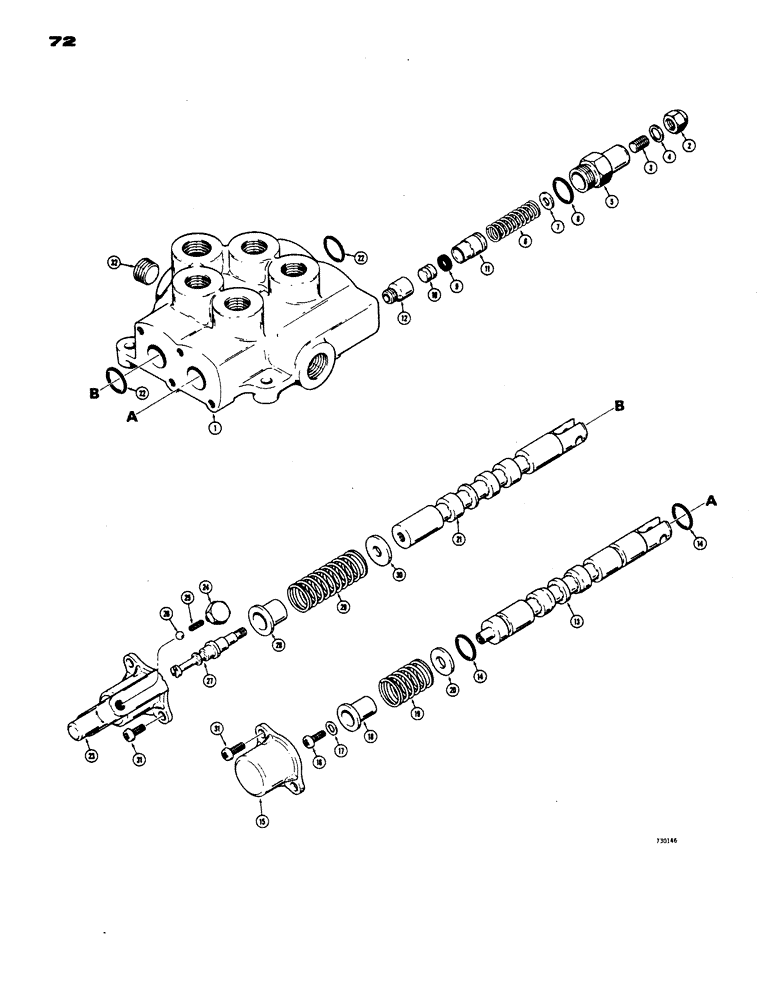

Запчасти Case 1816 (72) - D57212 HYDRAULIC CONTROL VALVE, USED BEFORE TRACTOR SERIAL NO. 9823151 (35) - HYDRAULIC SYSTEMS

D57212

VALVE

ASSEMBLY, 2 spool, DUKES DV20-JS-FH-11-N, Includes: Ref. 1 - 32

1шт.

1

NSS

NOT SOLD SEPARAT

BODY valve

1шт.

2

D59380

NUT

acorn

1шт.

3

D59379

SCREW

set

1шт.

4

D59378

WASHER

special

1шт.

5

D59377

HEAD (CYLINDER)

HEAD relief valve

1шт.

6

D59375

SPRING

poppet

1шт.

7

D59658

WASHER

RING Glvd

1шт.

8

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

SEAL "o"ring

1шт.

9

A27358

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

SEAL pin

1шт.

10

D59371

LARGE PIN

PIN poppet

1шт.

11

D59369

VALVE POPPET

POPPET relief valve

1шт.

12

D59370

SEAT

poppet

1шт.

13

NSS

NOT SOLD SEPARAT

SPOOL letter A, 1

1шт.

14

D61007

SEAL

spool

2шт.

C18846

KIT

spring, centering, Includes: Ref. 15 - 20

1шт.

15

C18847

CAP

spool end

1шт.

16

193-524

SCREW round head slotted, 10 - 32 NF x 3/8", external tooth SEMS, Hex Soc Hd, #10-32 x 3/8"

1шт.

17

195-510

WASHER,#8

plain, plated, 5/16"

1шт.

18

C13200

SPACER

RETAINER spring

1шт.

19

C18850

VALVE SPRING

SPRING spool return

1шт.

20

195-521

WASHER,5/16", SAE

plain, plated, 5/16"

1шт.

21

NSS

NOT SOLD SEPARAT

SPOOL letter B, detent, 2

1шт.

22

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

SEAL spool

2шт.

D60880

SPRING

KIT, spring, centering, Includes: Ref. 23 - 30

1шт.

23

C17438

COVER

CAP spool end

1шт.

24

C17443

SCREW,5/16" - 24 x 3/16"

special, detent

2шт.

25

C17444

SPRING

detent

2шт.

26

211-7

BALL,1/4" Dia

- steel 1/4" Dia

2шт.

27

C17439

VALVE

DETENT spool

1шт.

28

C13200

SPACER

RETAINER spring

1шт.

29

C17441

SPRING

spool return

1шт.

30

C17440

WASHER

special

1шт.

31

169-114

SCREW,Sl Fil Hd, #12 - 24 x 3/8"

fillister head, slotted, 12 - 24 NC x 3/8"

4шт.

32

221-843

PLUG,Hex Soc, 3/8"-18

square socket head, 3/8" pipe

1шт.
