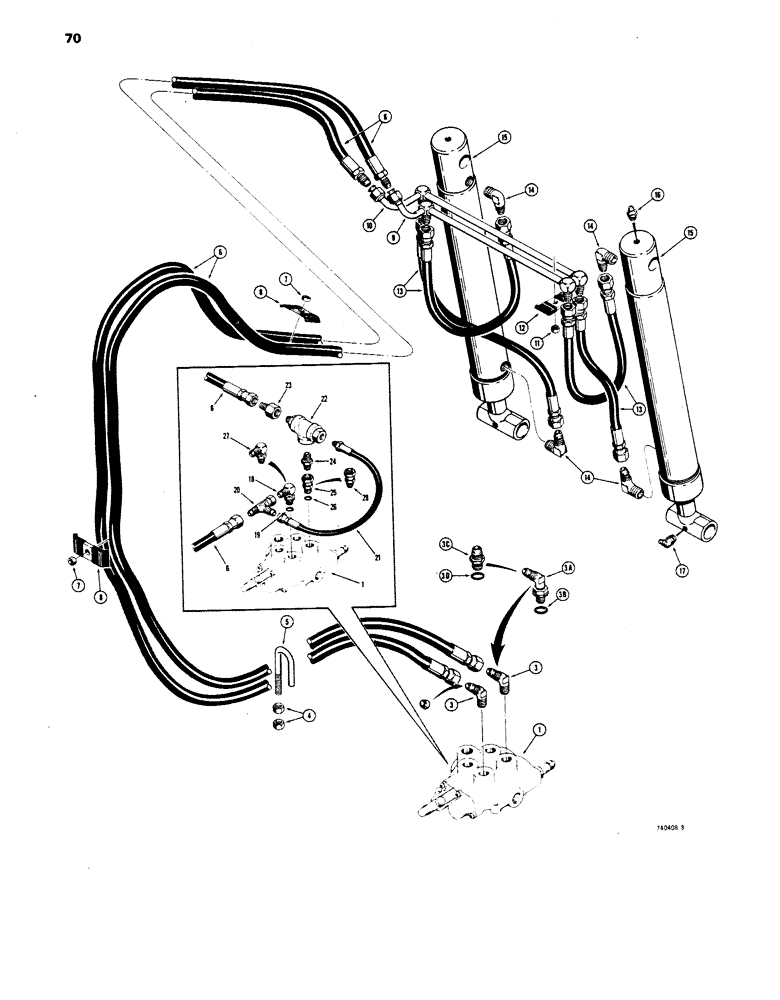

Запчасти Case 1816 (70) - LOADER BUCKET HYDRAULICS (35) - HYDRAULIC SYSTEMS

1

D57212

VALVE

hydraulic control, before serial number 9823151, See Figure 72

1шт.

1

D61409

CONTROL VALVE

VALVE hydraulic control, serial number 9823151 and after, See Figure 73A

1шт.

2

D57031

RESTRICTOR

hydraulic, port B

1шт.

3

218-1095

ELBOW,45 Degree, 9/16-18" 37 Degree x 3/8"-18, NPTF

male, 45 degree, D57212 valve

2шт.

3a

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

male, 45 degree, D61409 valve, before serial number 9826660, Includes: Ref. 3B

2шт.

3c

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

CONNECTOR straight, male, D61409 valve, serial number 9826660 and after

2шт.

4

25-106

NUT,3/8"-16, G5

hex, lock, 3/8" - 16 NC

2шт.

5

D57857

BRACKET

"u", hose retaining

1шт.

6

D57692

HOSE

valve to cylinder, 125" long

2шт.

7

131-4

LOCK NUT,5/16"-18, GB

NUT hex, lock, 5/16" - 18 NC

6шт.

8

R17319

CLAMP

hose

6шт.

9

D57606

TUBE

hydraulic, inner

1шт.

10

D57608

TUBE

hydraulic, outer

1шт.

11

131-4

LOCK NUT,5/16"-18, GB

NUT hex, lock, 5/16" - 18 NC

2шт.

12

R17319

CLAMP

tube

2шт.

13

D57693

HOSE

at cylinder, 16" long

4шт.

14

218-1053

ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/8"-18, NPTF

male, 90 degree

4шт.

15

REF

INSTRUCTION

CYLINDER dump, See Figures 76 and 77A for proper cylinders

2шт.

16

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING grease, straight, 1/4" - 28 NF

2шт.

17

219-400

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28

FITTING grease, 45 degree 1/4" - 28 NF

2шт.

D18064

KIT

bucket load check, Includes: Ref. 18 - 28

1шт.

18

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

adjustable, male, 90 degree, D61409 valve, Includes: Ref. 19

1шт.

19

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, seal

1шт.

20

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

adjustable, male-female 37º, 9/16"-18, x 9/16"-18, Fem Sw Run

1шт.

21

D69416

HOSE

12" long

1шт.

22

D69752

VALVE

check, pilot

1шт.

23

218-1082

HYD CONNECTOR,9/16"-18, 37 Degree x 1/2"-14, Fem Pipe

ELBOW male - female, 90 degree

1шт.

24

217-1072

HYD CONNECTOR,1/2" - 14 NPTF

CONNECTOR straight, male

1шт.

25

218-5256

HYD CONNECTOR,7/8"-14 Male ORB x 3/4" NPSM Fem Sw

CONNECTOR straight, adjustable, D61409 valve, Includes: Ref. 26

1шт.

26

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

27

218-1053

ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/8"-18, NPTF

90 degree, D57212 valve

1шт.

28

217-1008

ADAPTER,3/8" - 18 Male NPTF x 1/2" - 14 Female NPTF

straight, D61409 valve

1шт.

3b

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL "o"ring

1шт.

3d

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL "o"ring

1шт.
