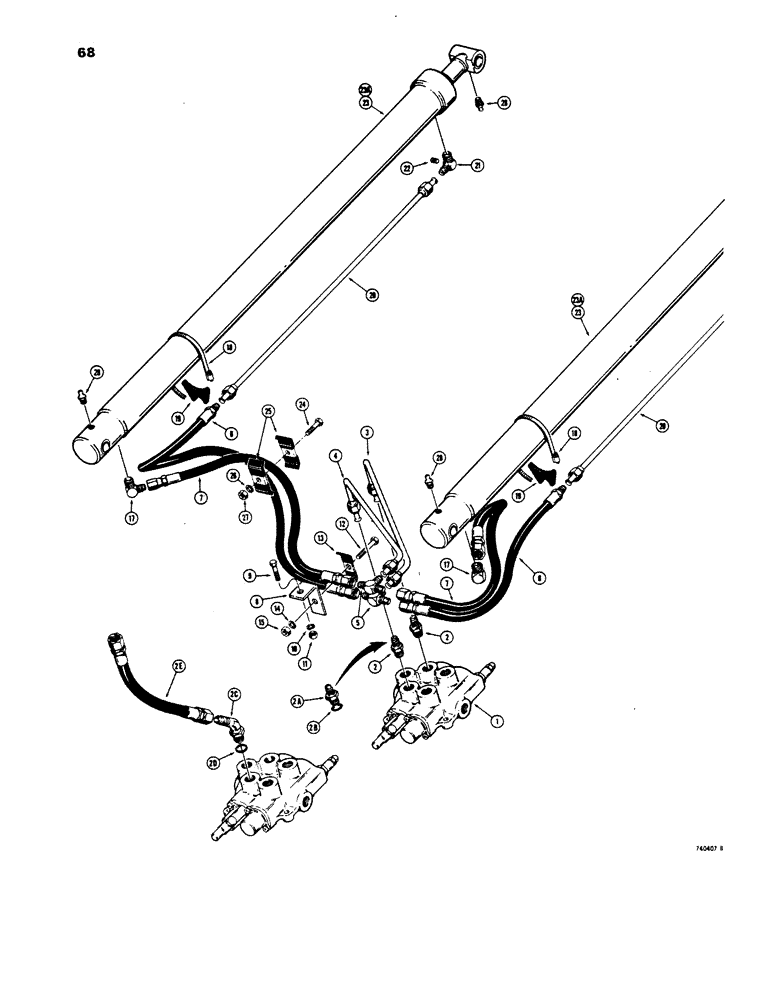

Запчасти Case 1816 (68) - LOADER LIFT HYDRAULICS (35) - HYDRAULIC SYSTEMS

1

D57212

VALVE

hydraulic control, See Figure 72 before serial number 9823151

1шт.

1

D61409

CONTROL VALVE

VALVE hydraulic control, See Figure 73A, serial number 9823151 and after

1шт.

2

218-444

HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

CONNECTOR straight, male, D57212 valve

2шт.

2a

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

CONNECTOR straight, male, D614097 valve, used before serial number 9826660, Includes: Ref. 2B

2шт.

2c

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

adjustable, 45 degree, D61409 valve, used serial number 9826660 and after, Includes: Ref. 2D

2шт.

2e

D64265

HOSE

at valve, 15", serial number 9826660 and after

2шт.

3

D58753

TUBE

at valve, port A, before serial number 9821352

1шт.

3

D61284

TUBE at valve, port A, serial number 9821352 thru 9821350

1шт.

3

D61799

TUBE

at valve, port A, serial number 9823151 thru 9826660

1шт.

4

D58755

TUBE at valve, port B, before serial number 9821352

1шт.

4

D61286

TUBE

at valve, port B, serial number 9821352 thru 9823150

1шт.

4

D61801

TUBE

at valve, port B, serial number 9823151 thru 9826660

1шт.

5

218-594

TEE,3/4"-16, 37 Degree

male

2шт.

6

D58811

HOSE

at cylinder, rod end, 24" long

2шт.

7

D58812

HOSE

at cylinder, closed end, 19" long

2шт.

8

D58810

BRACKET

hose retaining before serial number 9821352

2шт.

8

D60696

BRACKET

hose retaining, serial number 9821352 and after

2шт.

9

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

HHCS, 5/16" - 18 NC x 1-1/4"

2шт.

10

92-5

LOCK WASHER,5/16"

2шт.

11

9635082

NUT,5/16" - 18, Gr 5

hex, 5/16" - 18 NC

2шт.

12

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS, 5/16" - 18 NC x 1-3/4"

2шт.

13

R17319

CLAMP

hose

2шт.

14

92-5

LOCK WASHER,5/16"

2шт.

15

9635082

NUT,5/16" - 18, Gr 5

hex, 5/16" - 18 NC

2шт.

17

218-1053

ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/8"-18, NPTF

male, 90 degree

3шт.

18

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP hose

2шт.

19

D38648

BLOCK

SADDLE rubber, hose

2шт.

20

D60509

TUBE

at cylinder, rod end

2шт.

21

D57732

ELBOW UNION

ELBOW male, 90 degree

1шт.

22

221-849

PLUG,Hex Soc, 1/8"-27

hed, head, 1/8" NPT

1шт.

23

D56774

CYLINDER

lift, before serial number 9823189, See Figure 74 service with D58575 cylinder and D60509 tube, See Figure 74 for identification

2шт.

23a

D58575

CYLINDER

lift, before serial number 9823189, See Figure 77A See Figure 77A for identification, use D17550 kit for service

2шт.

23a

D63235

CYLINDER BLOCK

CYLINDER lift, serial number 9823189 and after, See Figure 77A

2шт.

24

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS, 5/16" - 18 NC x 1-3/4"

2шт.

24a

D33551

BUSHING

SPACER valve

1шт.

25

R17319

CLAMP

hose

4шт.

26

92-5

LOCK WASHER,5/16"

2шт.

27

9635082

NUT,5/16" - 18, Gr 5

hex, 5/16" - 18 NC

2шт.

28

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING grease, straight, 1/4" - 28 NF

4шт.

D17550

CYLINDER

KIT, lift cylinder, consists of D63235 cylinder and instructions, when servicing D56774 cylinder also order D60509 tube

2шт.

2b

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL "o" ring

1шт.

2d

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL "o" ring

1шт.
