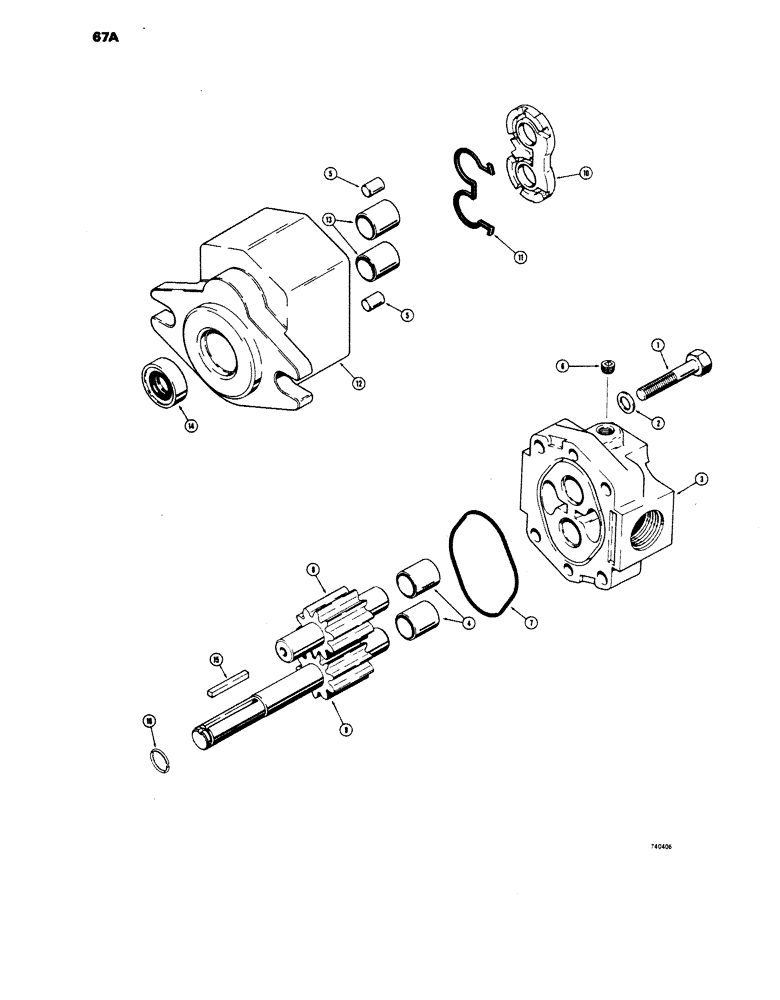

Запчасти Case 1816 (67A) - D61866 HYDRAULIC EQUIPMENT PUMP, USED TRACTOR SERIAL NO. 9823688 AND AFTER (35) - HYDRAULIC SYSTEMS

D61866

PUMP

ASSEMBLY, side ported, Warner Gear S12S-50AK5-3-R, Includes: Ref. 1 - 16

1шт.

1

13-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

Hex, 1/4"-20 x 1 1/2", G5

4шт.

2

D58189

WASHER

flat, special

4шт.

3

D61896

COVER

ASSEMBLY, rear, Includes: Ref. 4

1шт.

4

NSS

NOT SOLD SEPARAT

BUSHING cover

2шт.

5

D58188

PIN

dowel, 1/4" x 5/8"

2шт.

6

221-849

PLUG,Hex Soc, 1/8"-27

socket head, square 1/8" NPT

1шт.

7

D58196

O-RING,1.989" ID x 0.67" OD

SEAL "o"ring

1шт.

8

D61898

GEAR

driven

1шт.

9

D61897

GEAR

drive

10шт.

10

C20462

PLATE ASSY.

PLATE wear

1шт.

11

C20463

SEAL ASSY.

SEAL pressure

1шт.

11C20463 SUBS TO N9708/N9709 ONE OF EACH NEEDED ON NEWER PUMP S1250AK55R. SHAFT SEAL 14 - C20464 SUBS TO A N9707

1шт.

12

D61895

BODY

COVER ASSEMBLY, front, Includes: Ref. 13

1шт.

13

NSS

NOT SOLD SEPARAT

BUSHING cover

2шт.

14

C20464

SEAL ASSY.

SEAL shaft

1шт.

15

D60879

KEY

straight

1шт.

16

A11538

SNAP RING,#50, Ext

Ring, Snap, , replaces O10323AB #50, Ext

1шт.

C24334

SEAL

KIT, seal

1шт.
