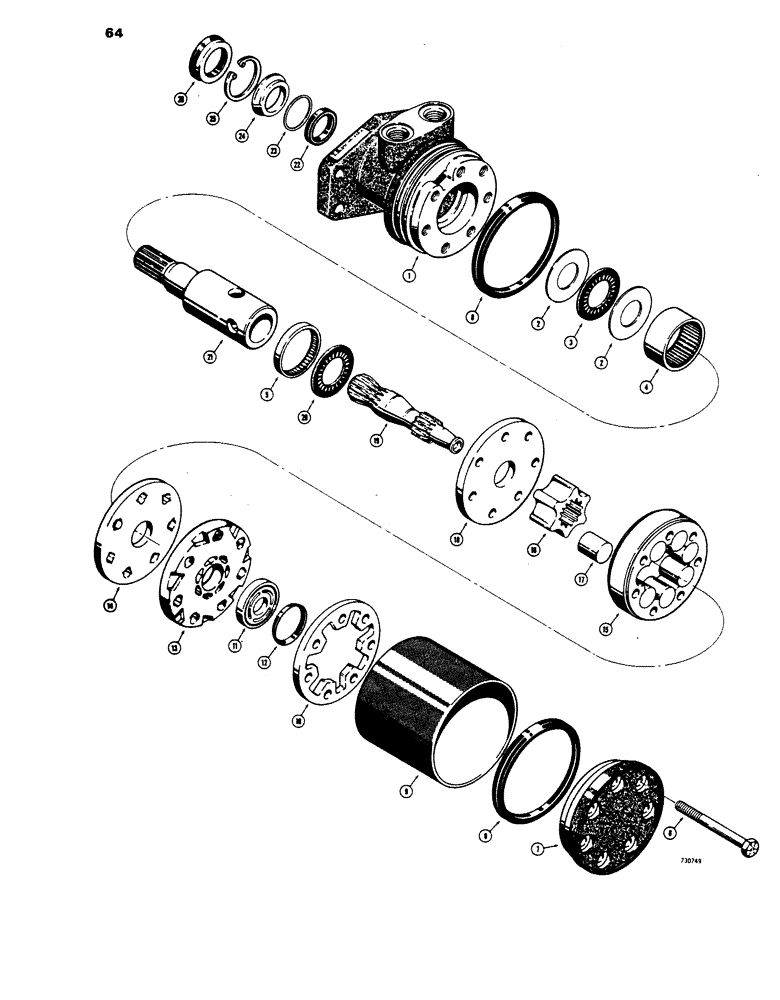

Запчасти Case 1816 (64) - D58412 HYDRAULIC MOTOR (35) - HYDRAULIC SYSTEMS

D58412

HYDRAULIC MOTOR

MOTOR hydraulic MAB 16012, Includes: Ref. D59696, 1 - 26

2шт.

D59696

COVER

ASSEMBLY, mounting, Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING cover

1шт.

2

D60861

WASHER

thrust

2шт.

3

D60860

THRUST BEARING,1.366" ID x 2.24" OD x 0.125"

BEARING thrust

1шт.

4

D60862

NEEDLE BEARING

BEARING needle, short

1шт.

5

A32424

NEEDLE BEARING,1.875" ID x 2.2505" OD x 1"

BEARING needle, long

1шт.

6

28-662

BOLT,Hex, 3/8" - 24 x 3-7/8", Gr 8

HHCS, 3/8" - 24 NF x 3-7/8"

7шт.

7

D60858

COVER

end

1шт.

8

C18382

RING

SEAL "o"ring

2шт.

Part of Seal Kit P/N C19037

1шт.

9

C18092

SLEEVE

HOUSING center

1шт.

D60857

COMMUTATOR

ASSEMBLY, matched set, Includes: Ref. 10 - 11

1шт.

10

NSS

NOT SOLD SEPARAT

RING bonded

1шт.

11

NSS

NOT SOLD SEPARAT

COMMUTATOR rotor

1шт.

12

N6709

RING,39.47mm ID x 42.67mm OD x 1.65mm Thk

bonded

1шт.

Part of Seal Kit P/N C19037

1шт.

13

C14833

TUBE

MANIFOLD motor

1шт.

14

C14832

PLATE

manifold

1шт.

C18110

ROTOR

ASSEMBLY, set, Includes: Ref. 15 - 17

1шт.

15

NSS

NOT SOLD SEPARAT

HOUSING rotor

1шт.

16

NSS

NOT SOLD SEPARAT

ROTOR

1шт.

17

NSS

NOT SOLD SEPARAT

ROLLER

7шт.

18

C14830

PLATE

wear

1шт.

19

D59699

SHAFT

drive, link

1шт.

20

D59698

THRUST BEARING,1.25" ID x 2.247" OD x 0.1094"

BEARING thrust

1шт.

21

D59697

SHAFT

coupling

1шт.

22

NSS

NOT SOLD SEPARAT

SEAL inner, oil

1шт.

Part of Seal Kit P/N C19037

1шт.

23

N9516

SHIM

seal

1шт.

Part of Seal Kit P/N C19037

1шт.

24

N6702

RING

SPACER seal

1шт.

Part of Seal Kit P/N C19037

1шт.

25

G109044

SNAP RING,1.75", Int, #175

Ring, Snap, 1.75", Int, #175

1шт.

Part of Seal Kit P/N C19037

1шт.

26

N9544

SEAL

outer, dirt

1шт.

Part of Seal Kit P/N C19037

1шт.

C19037

SEAL

KIT, seal, Includes: Ref. 8, 12, 22 - 26

1шт.
