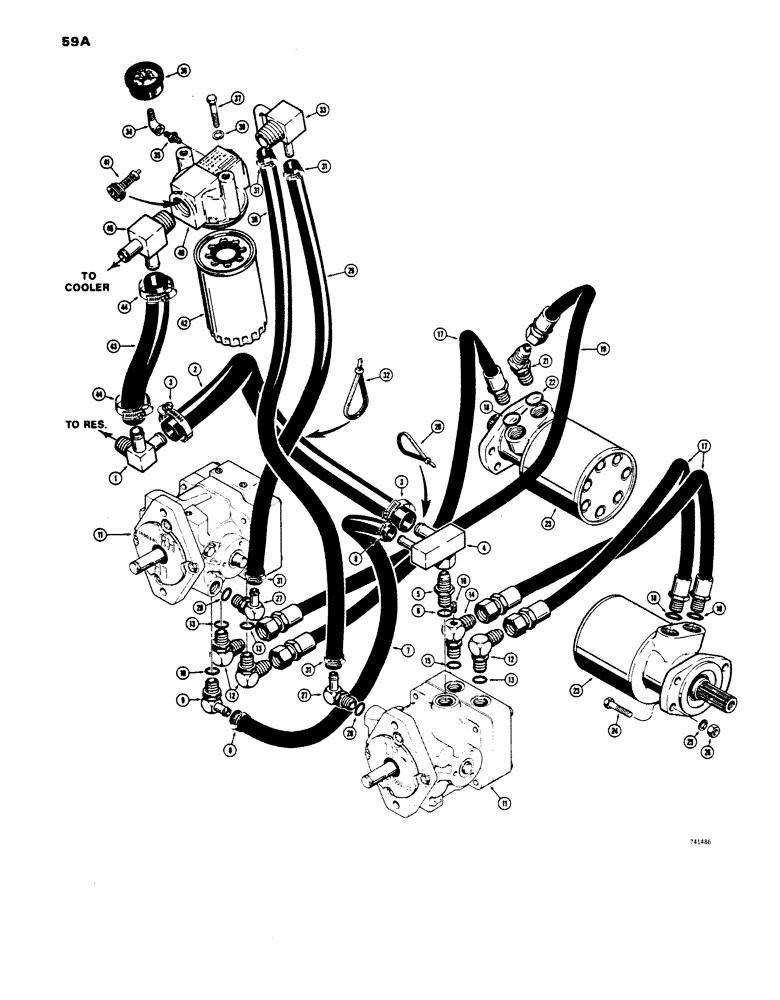

Запчасти Case 1816 (59A) - DRIVE HYD., HYD. TANK TO MOTORS TO VARIABLE DISPLACEMENT PUMPS USED TRAC, S/N 9826660 AND AFTER (35) - HYDRAULIC SYSTEMS

1

D64786

FITTING

TEE special

1шт.

2

D95239

LARGE HOSE

HOSE at hydraulic tank, 3/4" I.D. x 28" long

1шт.

3

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP hose

2шт.

4

D63834

MANIFOLD

case drain

1шт.

5

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR straight, male, Incl. Ref 6

1шт.

7

D64932

HOSE

manifold to pump, 21-1/2" long x 1/2" I.D.

1шт.

8

214-252

HOSE CLAMP,#08, 0.5" - 0.91", Type F Worm

CLAMP hose

2шт.

9

217-348

FITTING,90 Degree Elbow, 1/2" Hose Barb x 3/4" - 16 Male ORB

ELBOW hose barb, 90 degree, Includes: Ref. 10

1шт.

11

REF

INSTRUCTION

PUMP variable displacement, See Figure 63A

2шт.

12

218-5117

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

adjustable, 90 degree, Includes: Ref. 13

1шт.

14

D64395

FITTING

ELBOW adjustable, 90 degree, Includes: Ref. 15

3шт.

16

221-849

PLUG,Hex Soc, 1/8"-27

square head 1/8" NPT

1шт.

17

D64783

HOSE

pump to motor, 20" long, Includes: Ref. 18

3шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL "o"ring

1шт.

19

D64000

HOSE

pump to motor, R.H., 20" long

1шт.

20

L11541

CABLE TIE,203.2mm L, Nylon

TIE hose

1шт.

21

D63865

ELBOW

special, 45 degree, Includes: Ref. 22

1шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL "o"ring

1шт.

23

D58412

HYDRAULIC MOTOR

MOTOR hydraulic, See Figure 64

2шт.

24

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS, 1/2" - 20 NF x 1-1/2"

6шт.

25

92-8

LOCK WASHER,1/2"

6шт.

26

25-118

NUT,1/2"-20, G5

hex, 1/2" - 20 NF

6шт.

27

D64144

STEM

ELBOW barbed, 90 degree, Includes: Ref. 28

2шт.

29

D65486

HOSE

at L.H. pump, 3/4" x 26" long

1шт.

30

D65486

HOSE

at R.H. pump, 3/4" L.D. x 26" long

1шт.

31

214-252

HOSE CLAMP,#08, 0.5" - 0.91", Type F Worm

CLAMP hose

4шт.

32

L18331

CABLE TIE,375.9mm L, Nylon, Black

TIE hose

2шт.

33

D64266

ELBOW UNION

TEE special

1шт.

34

221-11

PLUG,Sq Hd, 1/8"-27

ELBOW street, 90 degree

1шт.

35

217-1079

HYD CONNECTOR,1/8" - 27 NPTF

CONNECTOR male, straight

1шт.

36

D58835

ELECTRICAL GAUGE

GAUGE oil pressure

1шт.

37

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

HHCS, 1/2" - 13 NC x 2"

2шт.

38

92-8

LOCK WASHER,1/2"

2шт.

D58834

FILTER

hydraulic oil, Includes: Ref. 40 - 42

1шт.

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

used with D58834 hydraulic oil filter

1шт.

40

D59063

COVER

BASE filter, Includes: Ref. 41

1шт.

41

D59064

VALVE

relief

1шт.

42

D59062

FILTER, ELEMENT

ELEMENT ASSEMBLY, filter

1шт.

43

D95236

HOSE

low pressure, 3/4" I.D. x 9" long

1шт.

44

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP hose

2шт.

45

D65489

FITTING

TEE special

1шт.

6

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL "o"ring

1шт.

10

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL "o"ring

1шт.

13

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL "o"ring

1шт.

15

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL "o"ring

1шт.

28

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL "o"ring

1шт.
