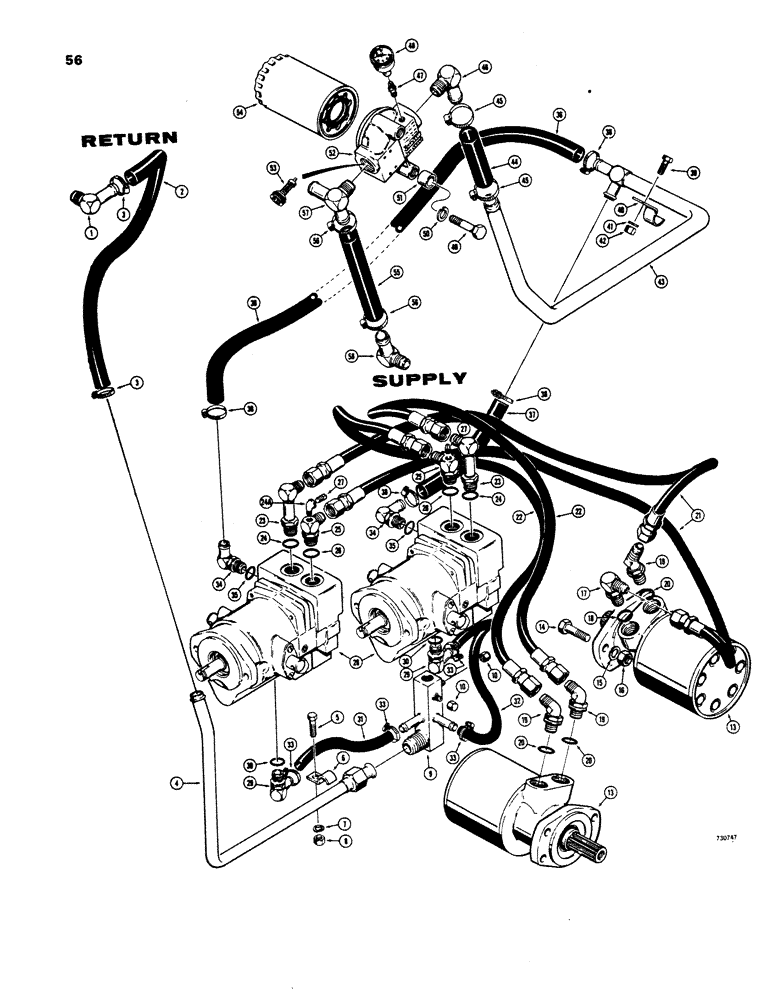

Запчасти Case 1816 (56) - DRIVE HYDRAULICS, HYDRAULIC TANK TO MOTORS VARIABLE DISPLACEMENT PUMPS USED BEFORE TRAC. S/N 9826660 (35) - HYDRAULIC SYSTEMS
№
Артикул
Название
Примечание
Количество
1
217-135
ELBOW,90 Degree Elbow, 3/4" Hose Barb x 3/4" Male NPTF
hose barb, 90 degree
1шт.
2
D95235
HOSE
at hydraulic tank, 3/4" I.D. x 14" long
1шт.
3
214-254
HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm
CLAMP hose
2шт.
4
D58832
TUBE
at manifold
1шт.
5
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
1шт.
6
D41165
CLAMP,19mm ID, 10.5mm Bolt Hole, J Type
tube
1шт.
7
92-6
LOCK WASHER,3/8"
1шт.
8
25-106
NUT,3/8"-16, G5
hex, 3/8" - 16 NC
1шт.
9
D58090
MANIFOLD case drain
1шт.
10
218-752
CAP,37 Degree, 7/16"-20
Plug 37º, 7/16"-20
2шт.
13
D58412
HYDRAULIC MOTOR
MOTOR hydraulic, See Figure 64
2шт.
14
13-824
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd
6шт.
15
195-33
WASHER,1/2"
plain, 1/2"
6шт.
17
218-5107
90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB
adjustable, 90 degree, Incl. Ref. 18
1шт.
18
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
SEAL "o"ring
1шт.
19
218-5137
ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB
adjustable, 45 degree, Incl. Ref 20
3шт.
20
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
SEAL "o"ring
1шт.
21
D57699
HOSE
pump to motor, L.H., 18" long
2шт.
22
D57700
HOSE
pump to motor, R.H., 23-1/2" long
2шт.
23
D25136
FITTING
ELBOW special, 90 degree, Includes: Ref. 24
2шт.
24
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
SEAL "o"ring
1шт.
24a
217-1014
ELBOW,1/8" - 27 Female x 1/8" - 27 Male
Street 90º, 1/8"-27 Female x 1/8"-27 Male
1шт.
25
R19576
FITTING
ELBOW special, 90 degree, Includes: Ref. 26
2шт.
26
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
SEAL "o"ring
1шт.
27
221-849
PLUG,Hex Soc, 1/8"-27
square head, 1/8" NPT
2шт.
28
D65642
PUMP
variable displacement, See Figure 60
2шт.
29
217-348
FITTING,90 Degree Elbow, 1/2" Hose Barb x 3/4" - 16 Male ORB
ELBOW hose barb, 90 degree, Includes: Ref. 30
2шт.
31
D58120
HOSE ASSY.
HOSE pump to manifold, L.H., 1/2" I.D. x 8" long
1шт.
32
D56708
HOSE
pump to manifold, R.H., 1/2" I.D. x 16" long
1шт.
33
214-253
HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm
CLAMP hose
4шт.
36at
D95234
HOSE,1.25" ID x 19.00", SAE 100R3
at Left Hand Pump 1.25" ID x 19.00", SAE 100R3
1шт.
37
D95236
HOSE
at R.H. pump, 3/4" I.D. x 9" long
1шт.
38
214-254
HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm
CLAMP hose
4шт.
39
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
1шт.
40
D55880
CLAMP
tube
1шт.
41
92-6
LOCK WASHER,3/8"
1шт.
42
25-106
NUT,3/8"-16, G5
hex, 3/8" - 16 NC
1шт.
43
D58757
TUBE at filter
1шт.
44
D38435
HOSE,1" ID x 1 1/2" OD 3.5" L
low pressure, 1" I.D. x 3-1/2" long
1шт.
45
214-256
HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm
CLAMP hose
2шт.
46
217-136
ELBOW,90 Degree Elbow, 1" Hose Barb x 1" Male NPTF
hose barb, 90 degree
1шт.
47
217-1079
HYD CONNECTOR,1/8" - 27 NPTF
CONNECTOR male, straight
1шт.
48
D58835
ELECTRICAL GAUGE
GUAGE oil pressure
1шт.
49
13-832
BOLT,Hex, 1/2" - 13 x 2", Gr 5
2шт.
50
92-8
LOCK WASHER,1/2"
2шт.
51
D48528
SPACER
filter
2шт.
D58834
FILTER
hydraulic oil, Includes: Ref. 52 - 54
1шт.
52
D59063
COVER
BASE filter, Includes: Ref. 53
1шт.
53
D59064
VALVE
relief
1шт.
54
D59062
FILTER, ELEMENT
ELEMENT ASSEMBLY, filter
1шт.
55
D95237
LARGE HOSE
HOSE low pressure, 3/4" I.D. x 6"
1шт.
56
214-256
HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm
CLAMP hose
2шт.
57
D59868
ELBOW UNION
TEE special
1шт.
58
217-135
ELBOW,90 Degree Elbow, 3/4" Hose Barb x 3/4" Male NPTF
hose barb, 90 degree
1шт.
30
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
SEAL "o"ring
1шт.
35
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
SEAL "o"ring
1шт.
Выбрано товаров: 58
