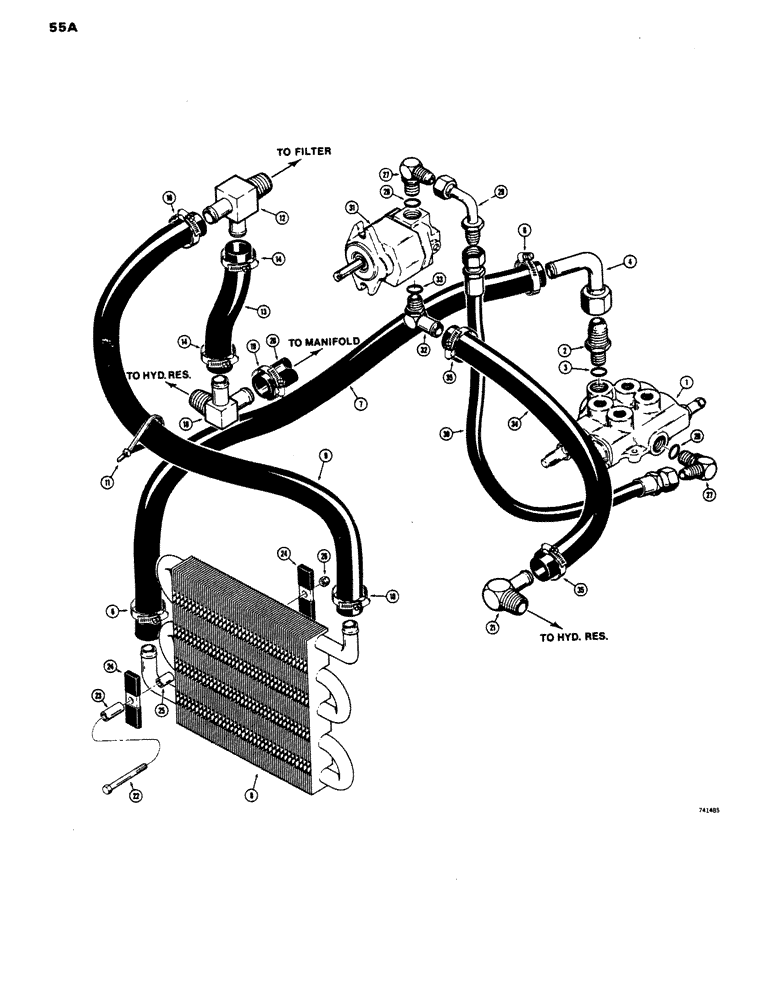

Запчасти Case 1816 (55A) - COOLING CIRCUIT AND BASIC EQUIPMENT HYDRAULICS, USED TRACTOR SERIAL NO. 9826660 AND AFTER (35) - HYDRAULIC SYSTEMS

1

D61409

CONTROL VALVE

VALVE loader, See Figure 73A

1шт.

2

218-5353

HYD CONNECTOR,1 1/16"-12, 37 Degree x 3/4"-16, O-Ring

CONNECTOR straight, male, Includes: Ref. 3

1шт.

4

D63870

TUBE

at, Serial Range: valve-cooler

1шт.

6

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP hose

2шт.

7

D65488

HOSE,0.75" ID x 40.00"

1шт.

8

D57600

COOLER

hydraulic oil

1шт.

9

D65487

HOSE,0.75" ID x 30.00"

Cooler to Tank 0.75" ID x 30.00"

1шт.

10

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP hose

2шт.

11

L18331

CABLE TIE,375.9mm L, Nylon, Black

TIE hose

1шт.

12

D65489

FITTING

TEE special

1шт.

13

D95236

HOSE

at tank, 3/4" I.D. x 9" long

1шт.

14

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP hose

2шт.

18

D64786

FITTING

TEE special

1шт.

19

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP hose

2шт.

20

D95239

LARGE HOSE

HOSE crossover, 3/4" I.D. x 28" long

1шт.

21

217-135

ELBOW,90 Degree Elbow, 3/4" Hose Barb x 3/4" Male NPTF

hose stem, 90 degree

1шт.

22

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

HHCS, 3/8" - 16 NC x 3-1/2"

1шт.

23

D34632

BUSHING

SPACER clamp, short

1шт.

24

D54416

CLAMP

tube

2шт.

25

D36040

BUSHING

SPACER clamp, short

1шт.

26

131-652

LOCK NUT,3/8"-16, GB

NUT hex, lock, 3/4" - 16 NC

1шт.

27

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

male, 90 degree, Includes: Ref. 28

2шт.

29

218-995

FITTING,90 Degree, 37 Degree Fl, 3/4"-16 Male x 3/4"-16 Fem

90 degree, used with D63958

1шт.

30

D63958

HOSE

valve to pump, 18" long, 457 mm

1шт.

31

D75439

HOSE

valve to pump, 19" long, 483 mm

1шт.

32

217-361

FITTING,90 Degree Elbow, 3/4" Hose Barb x 7/8" - 14 Male ORB

ELBOW hose barb, 90 degree, Includes: Ref. 33

1шт.

33

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL "o"ring

1шт.

34

D64064

LARGE HOSE

HOSE pump to hydraulic tank, 3/4" I.D. x 27" long

1шт.

35

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP hose

2шт.

3

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL "o"ring

1шт.

28

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL "o"ring

1шт.
