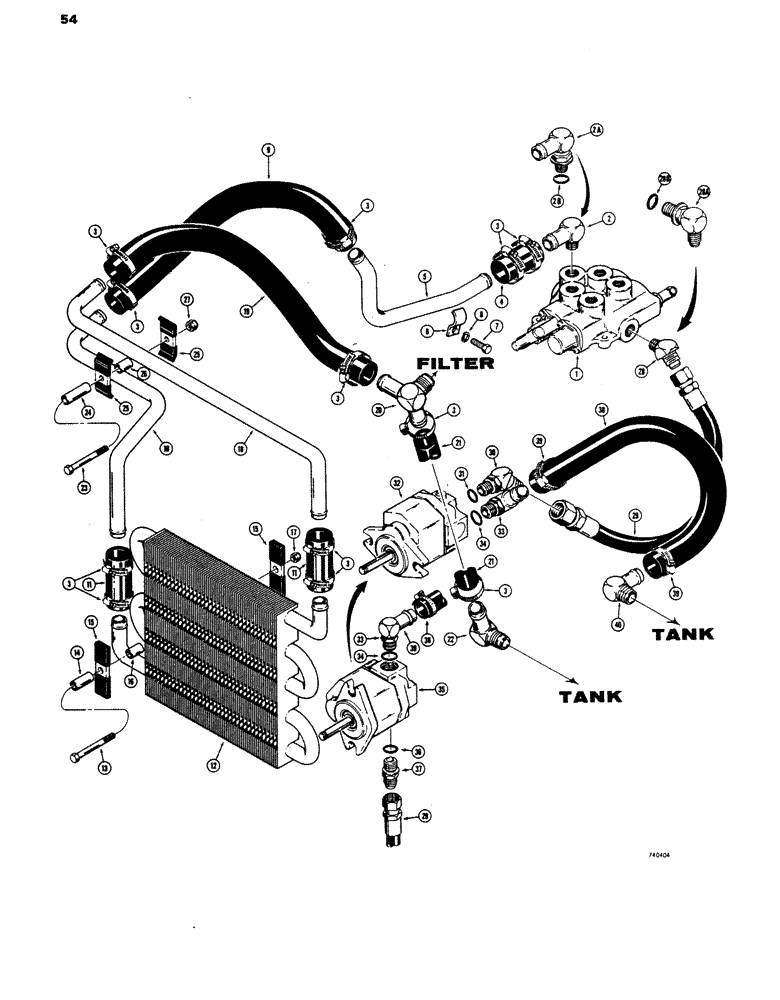

Запчасти Case 1816 (54) - COOLING CIRCUIT AND BASIC EQUIPMENT HYDRAULIC, USED BEFORE TRACTOR SERIAL NO. 9816660 (35) - HYDRAULIC SYSTEMS

1

D57212

VALVE

loader, before serial number 9823151, See Figure 72

1шт.

1

D61409

CONTROL VALVE

VALVE loader, serial number 9823151 and after, See Figure 73A

1шт.

2

217-129

ELBOW,90 Degree Elbow, 3/4" Hose Barb x 1/2" Male NPTF

barbed, 90 degree, D57212 valve

1шт.

2a

217-364

FITTING,90 Degree Elbow, 3/4" Hose Barb x 3/4" - 16 Male ORB

ELBOW barbed, 90 degree, D61409 valve, Includes: Ref. 2B

1шт.

3

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP hose

12шт.

4

R20804

HOSE,19.00 mm ID x 76.20 mm, SAE 100R3

at Valve 19.00 mm ID x 76.20 mm, SAE 100R3

1шт.

5

D60617

TUBE valve to cooler, before serial number 9821352

1шт.

5

D60668

TUBE

valve to cooler, serial number 9821352 and after

1шт.

6

D41165

CLAMP,19mm ID, 10.5mm Bolt Hole, J Type

tube

1шт.

7

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

8

92-6

LOCK WASHER,3/8"

1шт.

9

D95232

LARGE HOSE

HOSE valve to cooler, 24" long x 3/4" I.D.

1шт.

10

D57707

TUBE, Serial Range: valve-cooler

1шт.

11

R20804

HOSE,19.00 mm ID x 76.20 mm, SAE 100R3

2шт.

12

D57600

COOLER

hydraulic oil

1шт.

13

13-556

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

- hex, 5/16"-18 NC x 3-1/2"

2шт.

14

D34632

BUSHING

SPACER clamp, long

2шт.

15

D54416

CLAMP

tube

4шт.

16

D36040

BUSHING

SPACER clamp, short

2шт.

17

131-351

LOCK NUT,5/16"-18, GA

NUT hex, lock, 5/16" - 18" NC

2шт.

18

D57706

TUBE oil, Serial Range: cooler-tank

1шт.

19

D95239

LARGE HOSE

HOSE at hydraulic tank, 3/4" I.D. x 28" long

1шт.

20

D59868

ELBOW UNION

TEE special

1шт.

21

D95235

HOSE

at hydraulic tank, 3/4" I.D. x 14" long

1шт.

22

217-135

ELBOW,90 Degree Elbow, 3/4" Hose Barb x 3/4" Male NPTF

90 degree, hose stem

1шт.

23

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

HHCS, 3/8" - 16 NC x 3-1/2"

1шт.

24

D34632

BUSHING

SPACER clamp, long

1шт.

25

D40236

CLAMP

tube

2шт.

26

D36040

BUSHING

SPACER clamp, short

1шт.

27

131-652

LOCK NUT,3/8"-16, GB

NUT hex, lock, 3/8" - 16 NC

1шт.

28

218-1098

ELBOW,45 Degree, 3/4-14" 37 Degree x 1/2"-14, NPTF

male, 45 degree, D57212 valve, hydraulic valve and pump to hydraulic tank

1шт.

28a

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

male, 90 degree, D61409 valve, hydraulic valve and pump to hydraulic tank

1шт.

29

D57698

HOSE ASSY.

HOSE valve to pump, 17" long, hydraulic to hydraulic tank

1шт.

30

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

male, 45 degree, adjustable, D59950 pump, hydraulic valve and pump to hydraulic tank

1шт.

32

D59950

FILTER

PUMP equipment, rear ports, See Figure 66, use D61866 pump and 2185059 connector for service, hydraulic valve and pump to hydraulic tank

1шт.

33

217-361

FITTING,90 Degree Elbow, 3/4" Hose Barb x 7/8" - 14 Male ORB

ELBOW hose barb, 90 degree, hydraulic valve and pump to hydraulic tank

1шт.

34

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL "o"ring, hydraulic valve and pump to hydraulic tank

1шт.

35

D60567

PUMP, HYDRAULIC

PUMP equipment, side port, before serial number 9823688, See Figure 66, hydraulic valve and pump to hydraulic tank

1шт.

35

D61866

PUMP

equipment, side port, before serial number 9823688 and after, See Figure 67A, hydraulic valve and pump to hydraulic tank

1шт.

36

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR straight, male, D60567 and D61866 pump, hydraulic valve and pump to hydraulic tank

1шт.

37

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL "o"ring, hydraulic valve and pump to hydraulic tank

1шт.

38

D95232

LARGE HOSE

HOSE pump to tank, 3/4" I.D. x 24" long, hydraulic valve and pump to hydraulic tank

1шт.

39

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP hose, hydraulic valve and pump to hydraulic tank

2шт.

40

217-135

ELBOW,90 Degree Elbow, 3/4" Hose Barb x 3/4" Male NPTF

hose barb, 90 degree, hydraulic valve and pump to hydraulic tank

1шт.

2b

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL "o"ring

1шт.

28b

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL "o"ring, hydraulic valve and pump to hydraulic tank

1шт.

31

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL "o"ring, hydraulic valve and pump to hydraulic tank

1шт.
