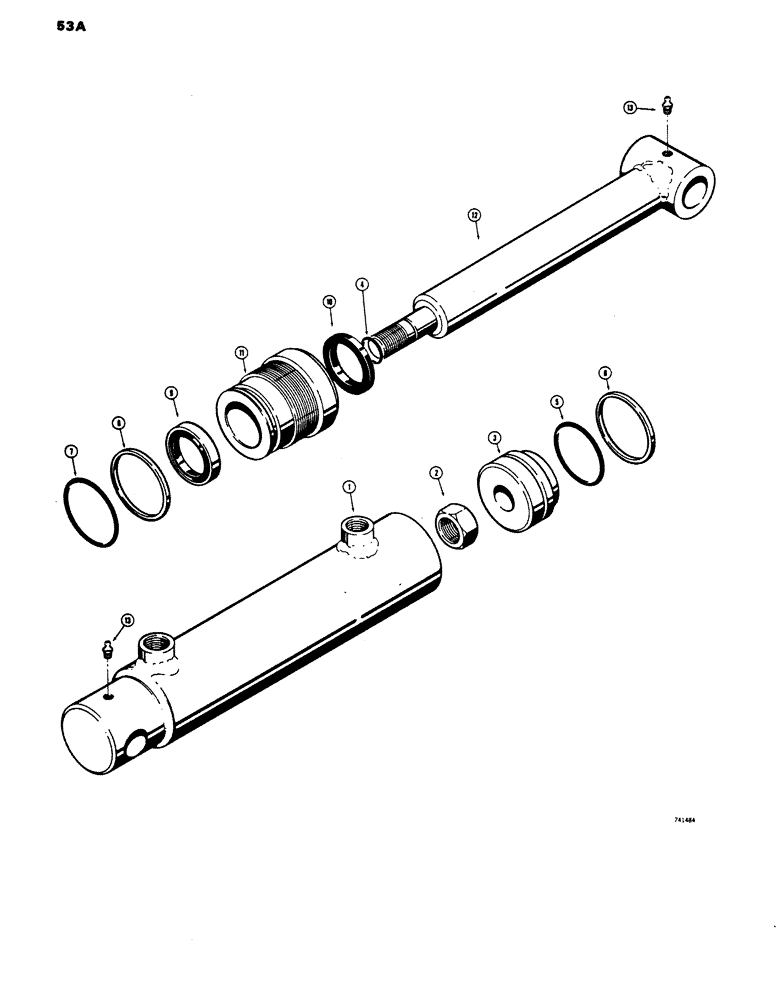

Запчасти Case 1816 (53A) - D58638 GRAPPLE CYLINDER (35) - HYDRAULIC SYSTEMS

D58638

CYLINDER

grapple, 5-1/2" stroke x 2" I.D., Includes: Ref. 1 - 12

1шт.

1

D63374

TUBE

cylinder

1шт.

2

25-1512

JAM NUT,Jam, 3/4"-10, G5

hex, jam, 3/4" - 16 NF

1шт.

3

D60996

PISTON

tube

1шт.

D61006

GASKET KIT

KIT, seal, cylinder, Includes: Ref. 4 - 10

1шт.

4

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

SEAL "o"ring, piston, inner

1шт.

5

D26820

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

SEAL "o"ring, piston, outer

1шт.

6

D60995

RING

piston

1шт.

7

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

SEAL "o"ring, gland

1шт.

8

D60998

WASHER

backup

1шт.

9

D60999

WIPER SEAL

WIPER "u" cup, inner gland

1шт.

10

D60997

WIPER SEAL

WIPER rod, outer gland

1шт.

11

D61002

GLAND

cylinder

1шт.

12

D63373

ROD

cylinder, 1" O.D.

1шт.

13

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING grease, straight, 1/4" - 28 NF

2шт.
