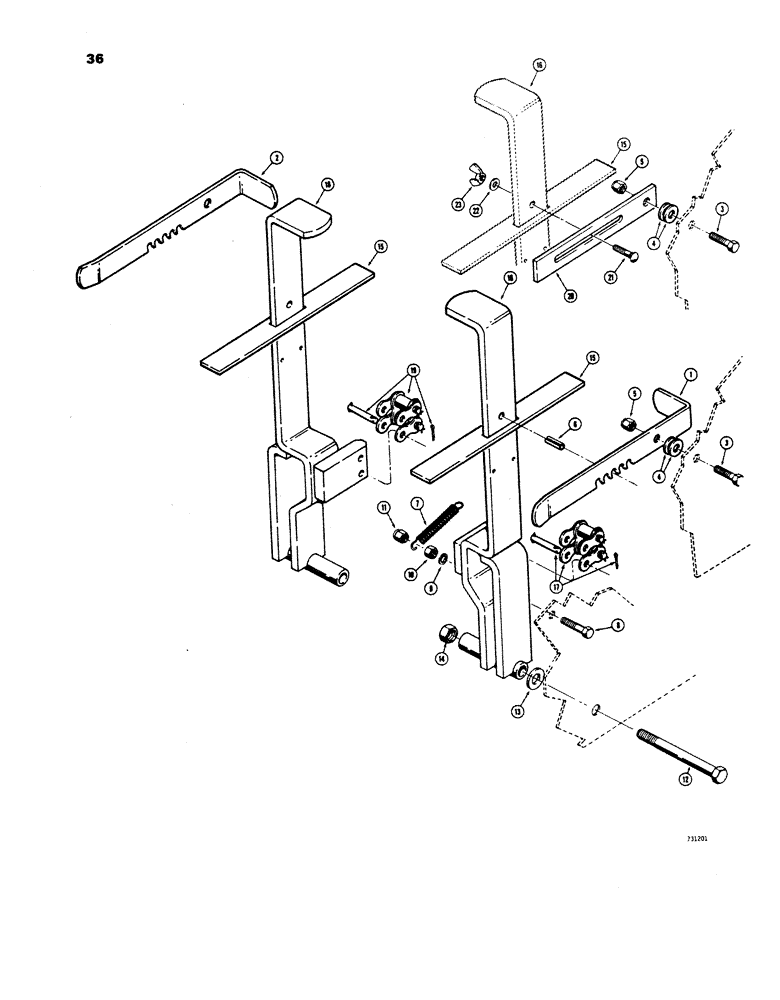

Запчасти Case 1816 (36) - BRAKES, HAND (33) - BRAKES & CONTROLS

1

D57726

RATCHET

brake. R.H., used before serial number 9819680, service with D17338 kit

1шт.

2

D57727

RATCHET

brake, L.H., used before serial number 9819680, service with D17338 kit

1шт.

3

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

HHCS, 3/8" - 16 NC x 1"

2шт.

4

195-25

WASHER,3/8"

flat, 3/8"

4шт.

5

131-652

LOCK NUT,3/8"-16, GB

NUT hex lock, 3/8" - 16 NC

2шт.

6

138-130

LOCK PIN,1/4" x 3/4", Slotted

PIN, , Used before S/N 9819680 1/4" x 3/4", Slotted

1шт.

7

A37005

SPRING

return

2шт.

8

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

9

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

10

25-104

NUT,1/4"-20, G5

2шт.

11

131-650

NUT,1/4"-20, GB

NUT hex, lock, 1/4" - 20 NC

2шт.

12

13-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

HHCS, 3/8" - 16 NC x 4-1/2"

2шт.

13

195-25

WASHER,3/8"

flat, 3/8"

1шт.

14

131-652

LOCK NUT,3/8"-16, GB

NUT hex, lock, 3/8" - 16 NC

2шт.

15

D57294

COVER

lever, brake, used before serial 9819680

2шт.

15

D62403

PROTECTIVE COVER

COVER lever, brake, used serial number 9819680 and after

2шт.

16

D60543

LEVER

brake R.H., before serial number 9819680, service with D61163 lever and D17338 kit

1шт.

D61163

LEVER

ASSEMBLY, brake, R. H., serial number 9819680 and after, Includes: Ref. 16 - 17

1шт.

16

NSS

NOT SOLD SEPARAT

LEVER brake, R.H.

1шт.

17

D57269

CHAIN (AG)

CHAIN, 60, 3 pitches

1шт.

18

D60544

LEVER

brake L.H., before serial number 9819680, service with D61164 lever and D17338 kit

1шт.

D61164

LEVER

ASSEMBLY, brake L.H., serial number 9819680 and after, Includes: Ref. 18 - 19

1шт.

18

NSS

NOT SOLD SEPARAT

LEVER brake, L.H.

1шт.

19

D57269

CHAIN (AG)

CHAIN, 60, 3 pitches

1шт.

D17338

KIT

parking brake, locking, Includes instructions, Includes: Ref. 20 - 23

1шт.

20

D61136

PLATE ASSY.

PLATE brake

2шт.

21

111-371

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", Full Thd

2шт.

22

195-25

WASHER,3/8"

flat, 3/8"

2шт.

23

129-410

WING NUT,3/8"-16

NUT winged, 3/8" - 16 NC

2шт.
