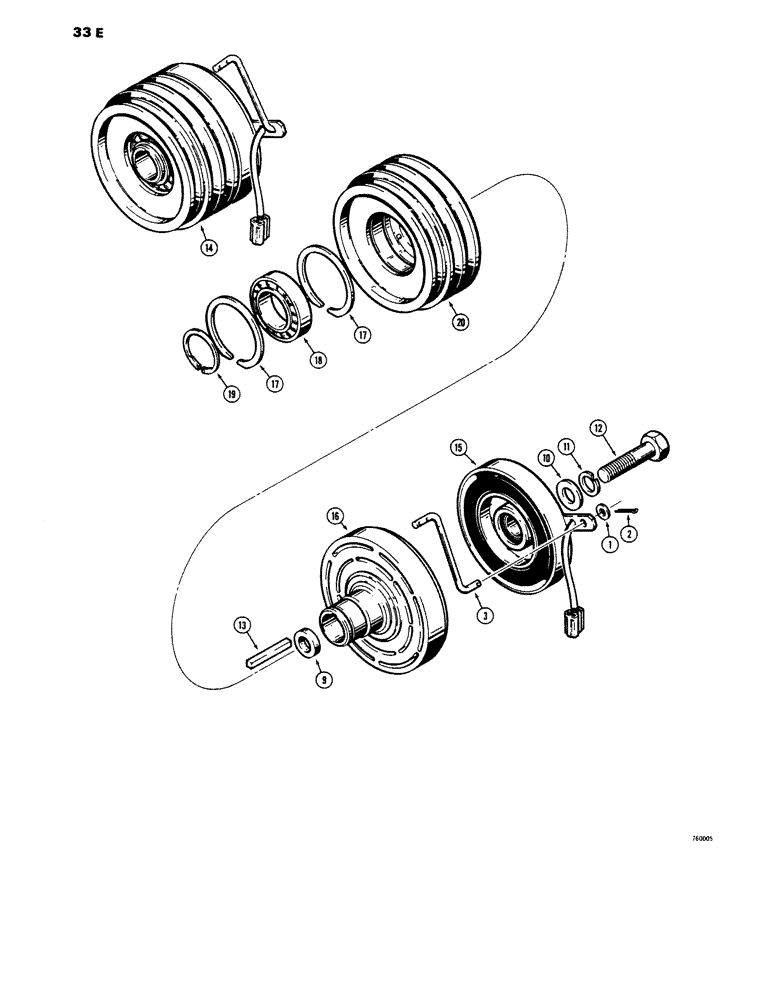

Запчасти Case 1816 (33E) - D69368 CLUTCH, ELECTRIC (18) - CLUTCH

1

195-21

WASHER,5/16"

- flat, plated, 5/16"

1шт.

2

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

2шт.

3

D73186

ROD

clutch retaining

1шт.

9

D71884

BUSHING

SPACER clutch

1шт.

10

95-7

WASHER,7/16"

flat, 9/16"

1шт.

11

280248

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

1шт.

12

114-328

BOLT,Hex, 7/16" - 20 x 2-1/2", Gr 5

HHCS plated, 9/16" - 12 NC x 2-1/2"

1шт.

13

A31136

KEY

square, 1/4" x 2-1/8"

1шт.

D74782

CLUTCH

KIT, clutch, Includes instruction, Includes: Ref. 14 - 20

1шт.

14

NSS

NOT SOLD SEPARAT

CLUTCH electrical, Includes: Ref. 15 - 20

1шт.

15

D71484

COIL

FIELD ASSEMBLY, Includes: Ref. 16 - 20

1шт.

D71483

TORQ CONV IMPELLER

ROTOR ASSEMBLY, Includes: Ref. 16 - 20

1шт.

16

NSS

NOT SOLD SEPARAT

ROTOR

1шт.

17

D71485

RING

retaining

2шт.

18

D71486

BEARING

1шт.

19

D71487

RING,#156, Ext

Snap, #156, Ext

1шт.

20

NSS

NOT SOLD SEPARAT

PULLEY

1шт.
