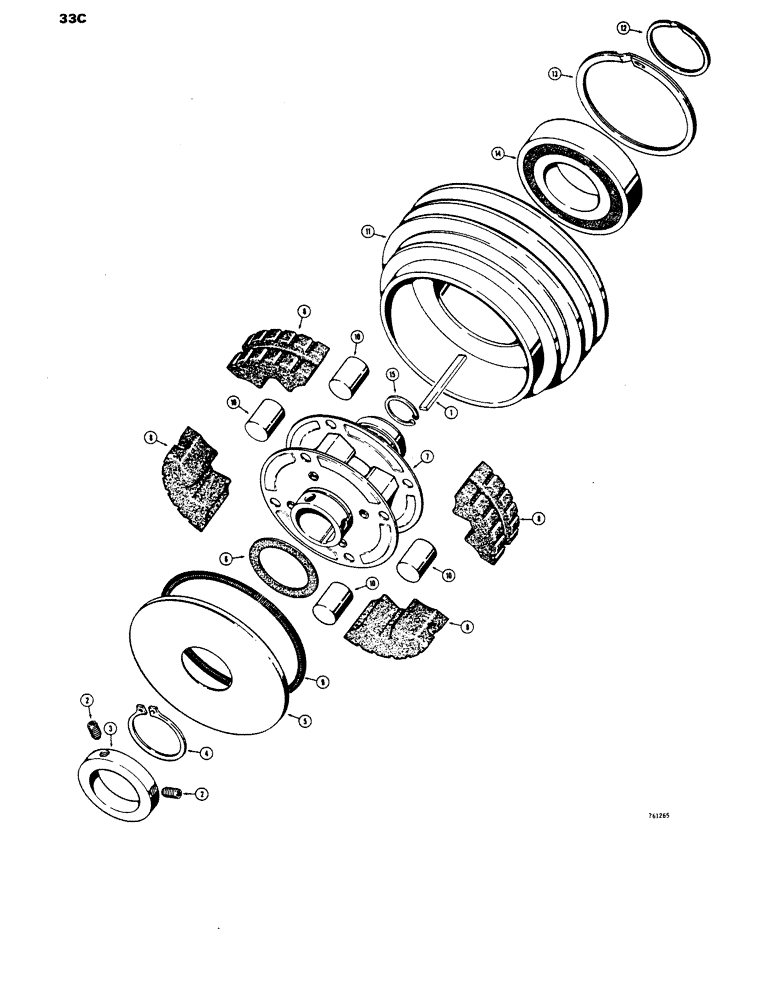

Запчасти Case 1816 (33C) - D60593 CLUTCH, CENTRIFUGAL (18) - CLUTCH

D60593

CLUTCH

centrifugal, Includes: Ref. 1 - 15

1шт.

197773A1 is subbed from the D60593.The complete clutch is interchangable, but the primes are not.

1шт.

1

D60888

KEY

square

1шт.

2

178-871

SET SCREW,Hex Soc, 5/16"-24 x 1/2"

SCREW hex, socket head, self locking, 5/16" - 24 NF x 1/2"

2шт.

3

D60884

COLLAR CLAMP

COLLAR retaining

1шт.

4

R13338

SNAP RING,#150, Ext

Ring, Snap, #150, Ext

1шт.

5

D60887

COVER ASSY

COVER clutch

1шт.

6

D60886

WASHER

thrust

1шт.

7

D72770

ROTOR

ASSEMBLY, clutch

1шт.

D61012

SHOE

KIT, shoe and spring

1шт.

8

NSS

NOT SOLD SEPARAT

SHOE friction

4шт.

9

D60882

SPRING

shoe

1шт.

10

D60883

WEIGHT

shoe

4шт.

11

D61013

HOUSING

pulley

1шт.

12

D60993

SNAP RING,#177, 1.690", Ext Spiral

RING snap, inner

1шт.

13

D60890

SNAP RING,#334, 3.479, Int, Spiral

RING snap, outer

1шт.

14

D60885

BALL BEARING,1.7715" ID x 3.3462" OD x 0.745"

BEARING sealed

1шт.

15

A30975

SNAP RING,1.188", Int, #118

1шт.
