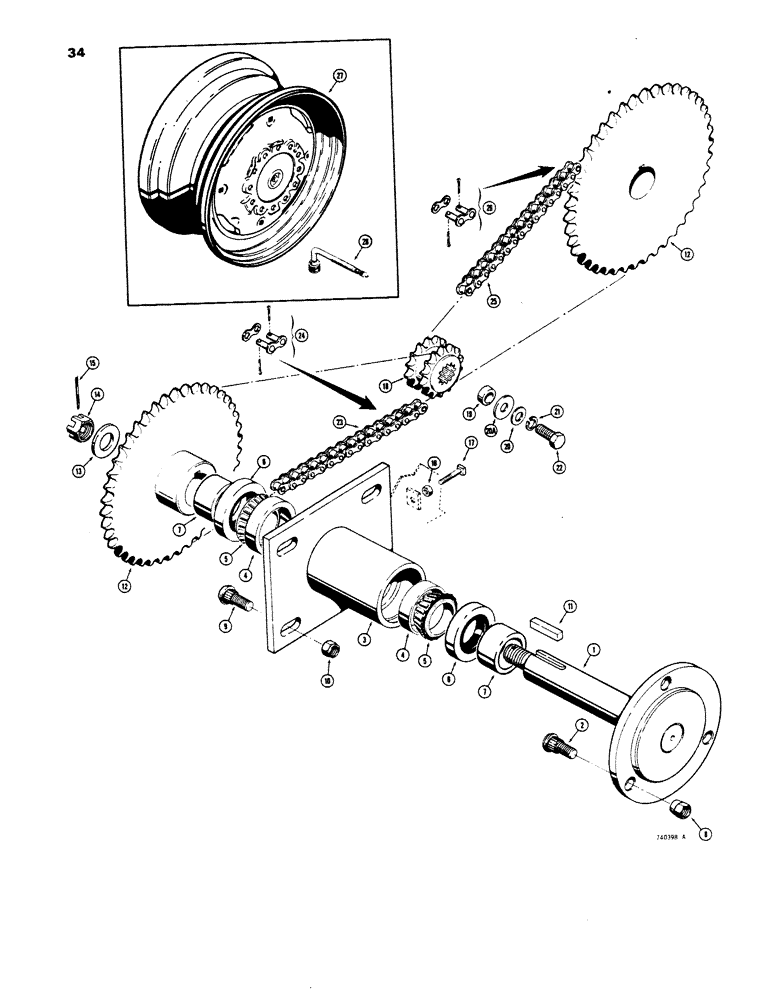

Запчасти Case 1816 (34) - AXLES AND DRIVE CHAINS (14) - MAIN GEARBOX & DRIVE
№
Артикул
Название
Примечание
Количество
REF
INSTRUCTION
AXLE AND HUB ASSEMBLY, Includes: Ref. D76714, 1 - 7
4шт.
D76714
SHAFT
AXLE ASSEMBLY, Includes: Ref. 1 - 2
1шт.
1
NSS
NOT SOLD SEPARAT
AXLE wheel
1шт.
2
T40045
WHEEL BOLT
BOLT special, wheel
3шт.
D57755
HUB
ASSEMBLY, Includes: Ref. 3 - 4
1шт.
3
NSS
NOT SOLD SEPARAT
HUB axle
1шт.
4
H751370
BEARING CUP
2шт.
5
H747758
TAPERED BEARING,38.1 mm ID x 18.034 mm
BEARING ASSEMBLY cone
2шт.
6
D56800
SEAL
grease
2шт.
7
D56799
SPACER
bearing
2шт.
8
F23214
WHEEL NUT
special, wheel
12шт.
9
E16592
WHEEL BOLT
BOLT special, 1/2" - 20 NF x 1-7/8"
16шт.
10
131-913
FLANGE NUT,Flg, USR, 1/2"-20
hex, lock, 1/2" - 20 NF
16шт.
11
A29408
KEY
square, 3/8" x 1-1/4"
4шт.
12
D56805
SPROCKET ASSY.
SPROCKET driven
4шт.
13
195-549
WASHER,7/8", SAE
flat, zinc plated, 7/8"
8шт.
14
25-1314
SLOTTED NUT,7/8"-14, G5
NUT hex, sloted, 7/8" - 14 NF
4шт.
15
132-52
COTTER PIN,1/8" x 1 1/2"
Pin, Split (Cotter), 1/8" x 1 1/2"
4шт.
16
25-106
NUT,3/8"-16, G5
hex, 3/8" - 16 NC
4шт.
17
181-650
SET SCREW,Sq Hd, 3/8"-16 x 1 3/4"
SCREW square head, set, 3/8" - 16 NC x 1-3/4"
4шт.
18
D56569
DRIVE SPROCKET
SPROCKET drive
2шт.
19
D60602
SPACER
sprocket
2шт.
20
195-33
WASHER,1/2"
plain, 1/2"
2шт.
20a
95-8
WASHER,1/2"
plain 1/2"
2шт.
21
92-8
LOCK WASHER,1/2"
2шт.
22
14-816
BOLT,Hex, 1/2" - 20 x 1", Gr 5
HHCS, 1/2" - 20 NF x 1"
2шт.
D56647
CHAIN (CE)
CHAIN, 60, rear drive, Includes: Ref. 23 - 24
2шт.
23
NSS
NOT SOLD SEPARAT
CHAIN, 60
1шт.
24
D66284
LINK,19.05mm Pitch
ASSEMBLY, link, clip and cotter pins
1шт.
D56648
CHAIN (CE)
CHAIN, 60, front drive, Includes: Ref. 25 - 26
2шт.
25
NSS
NOT SOLD SEPARAT
CHAIN, 60
1шт.
26
D66284
LINK,19.05mm Pitch
ASSEMBLY, link, clip and cotter pins
1шт.
27
D58595
WHEEL
rim, 27 x 8:50 x 15" tire only, wheels
4шт.
27
D56868
WHEEL
rim 5:70 and 5:90 x 15" tires, wheels
4шт.
28
D48692
VALVE
STEM valve, tubeless wheels only
4шт.
Ref. 28A - N7178 Plug, Valve Stem
1шт.
