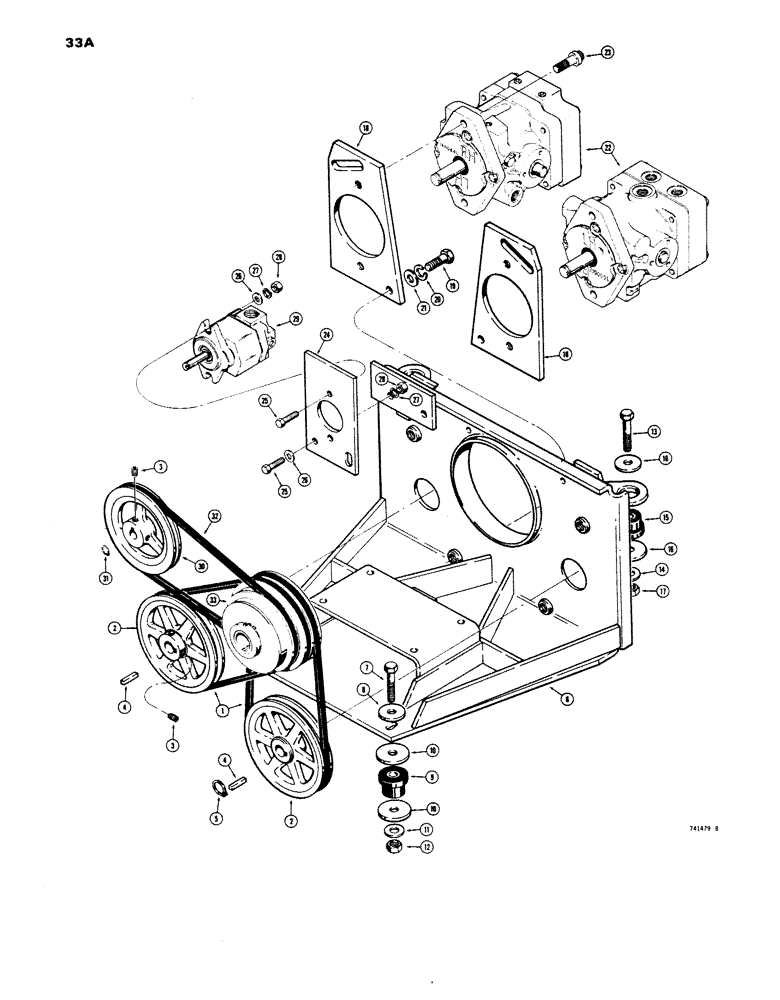

Запчасти Case 1816 (33A) - SHEAVES, DRIVE BELTS AND PUMP MOUNTING, USED TRACTOR SERIAL NO. 9826660 AND AFTER (14) - MAIN GEARBOX & DRIVE
№
Артикул
Название
Примечание
Количество
1
D60083
V-BELT,0.50" W x 33.00" L
to Variable Displacement Pump 0.50" W x 33.00" L
2шт.
2
D59808
SHEAVE
driven, Includes: Ref. 3
2шт.
3
178-442
SET SCREW,Hdls Hex Skt, 5/16" - 18 x 1/2", Flat Pt
SCREW set, hex, socket, 5/16" - 18 NC x 1/2"
2шт.
4
D59803
KEY
square, 3/16" x 3/16"
2шт.
5
T25683
SNAP RING,#75, Ext
Ring, Snap, #75, Ext
2шт.
6
D73171
PLATE pump and engine mounting
1шт.
7
13-736
BOLT,Hex, 7/16" - 14 x 2-1/4", Gr 5
2шт.
8
195-2042
WASHER,.469" x 1 1/2" x .134"
plain, 7/16"
2шт.
9
D59838
MOUNTING PARTS
MOUNT engine, front
2шт.
10
D63892
WASHER
hardened
4шт.
11
195-2042
WASHER,.469" x 1 1/2" x .134"
flat, 7/16"
2шт.
13
13-736
BOLT,Hex, 7/16" - 14 x 2-1/4", Gr 5
2шт.
14
195-2042
WASHER,.469" x 1 1/2" x .134"
flat, 7/16"
2шт.
15
D66016
SPARE PART
MOUNT rubber, front
2шт.
16
D63892
WASHER
hardened
2шт.
18
D61640
PLATE
variable displacement pumps
2шт.
19
13-820
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd
4шт.
20
92-8
LOCK WASHER,1/2"
4шт.
21
195-33
WASHER,1/2"
plain, 1/2"
4шт.
22
REF
INSTRUCTION
PUMP variable displacement, See Figure 63A
2шт.
23
166-85
12 PT SCREW,Flg, 1/2" - 13 x 1", Gr 8
BOLT ferry cap, flanged, 1/2" - 13 NC x 1"
4шт.
24
D61639
BRACKET
equipment pump
1шт.
25
13-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd
4шт.
26
195-25
WASHER,3/8"
plain, 3/8"
4шт.
27
92-6
LOCK WASHER,3/8"
4шт.
28
25-106
NUT,3/8"-16, G5
hex, 3/8" - 16 NC
4шт.
29
D61866
PUMP
equipment, See Figure 67A
1шт.
30
D60531
SHEAVE
driven, equipment pump, Includes: Ref. 30A
1шт.
30a
REF
INSTRUCTION
SCREW set, 5/16" - 18 NC
2шт.
31
A11538
SNAP RING,#50, Ext
Ring, Snap, #50, Ext
1шт.
32
D59867
V-BELT,0.38" W x 36.50" L
Clutch to Equipment Pump 0.38" W x 36.50" L
1шт.
33
REF
INSTRUCTION
CLUTCH See Figures 33C and 33E for clutches
1шт.
