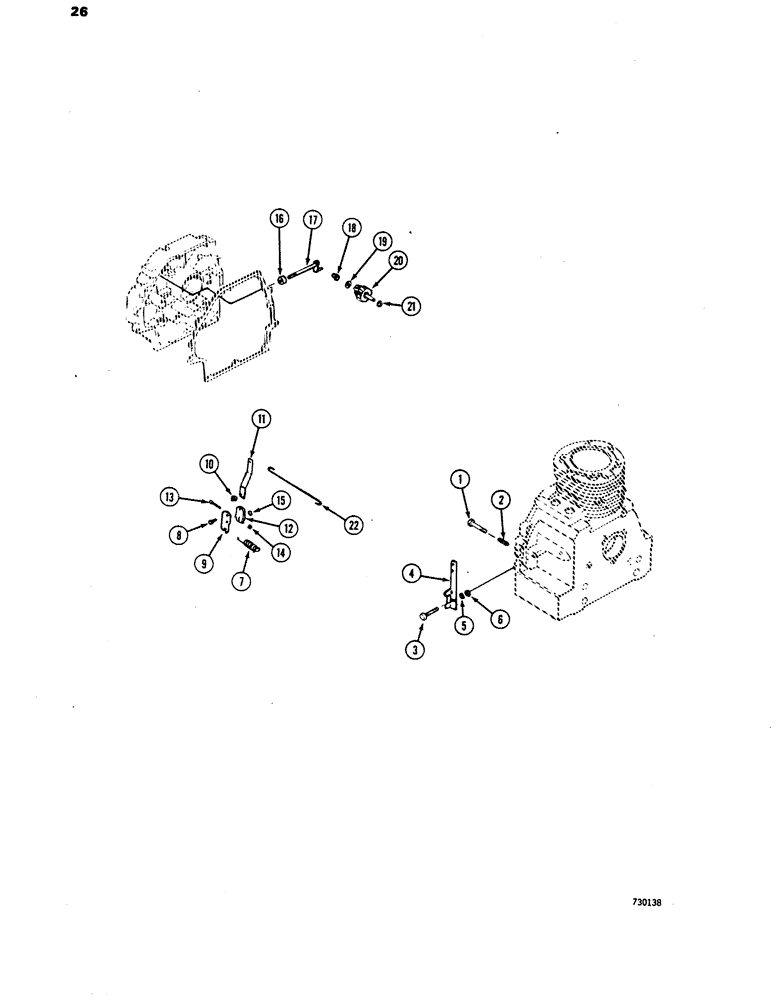

Запчасти Case 1816 (26) - ENGINE, THROTTLE, IDLE SPEED AND GOVERNOR (10) - ENGINE

1

169-107

SCREW,Sl Fil Hd, #10 - 24 x 2"

slotted head, machine, 10 - 24 NC x 2"

1шт.

2

D59432

VALVE SPRING

SPRING stop

1шт.

3

163-21

SCREW,Hex Wshr Hd, #10 - 24 x 5/8"

hex, washer head, 10 - 24 NC x 5/8"

1шт.

4

D59428

LEVER speed control, idle

1шт.

5

D59429

WASHER

pressure, wave

1шт.

6

D59430

BUSHING

SPACER lever

1шт.

7

D59431

VALVE SPRING

SPRING governor

1шт.

8

163-20

SCREW,Sl Hex Wshr Hd, #10 - 32 x 1/2"

BOLT hex, slotted washer head, 10 - 32 NF x 1/2"

1шт.

9

D59427

PLATE governor spring

1шт.

10

193-6

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, Ext Tooth, #10

1шт.

11

D59425

LEVER governor

1шт.

12

D59426

CLAMP lever retaining

1шт.

13

182-128

BOLT fillister head, 10 - 24 NC x 7/8"

1шт.

14

129-47

NUT

square head, 10 - 24 NC

1шт.

15

C15986

RING

retaining

1шт.

16

D59412

SPACER

rod, governor

1шт.

17

D59411

ROD

governor

1шт.

18

D59408

SPOOL

governor

1шт.

19

D59407

WASHER

flat

1шт.

20

D59405

GOVERNOR

shaft and gear

1шт.

21

D59406

WASHER

flat

1шт.

22

D59424

LINK

, Serial Range: governor-carburetor

1шт.
