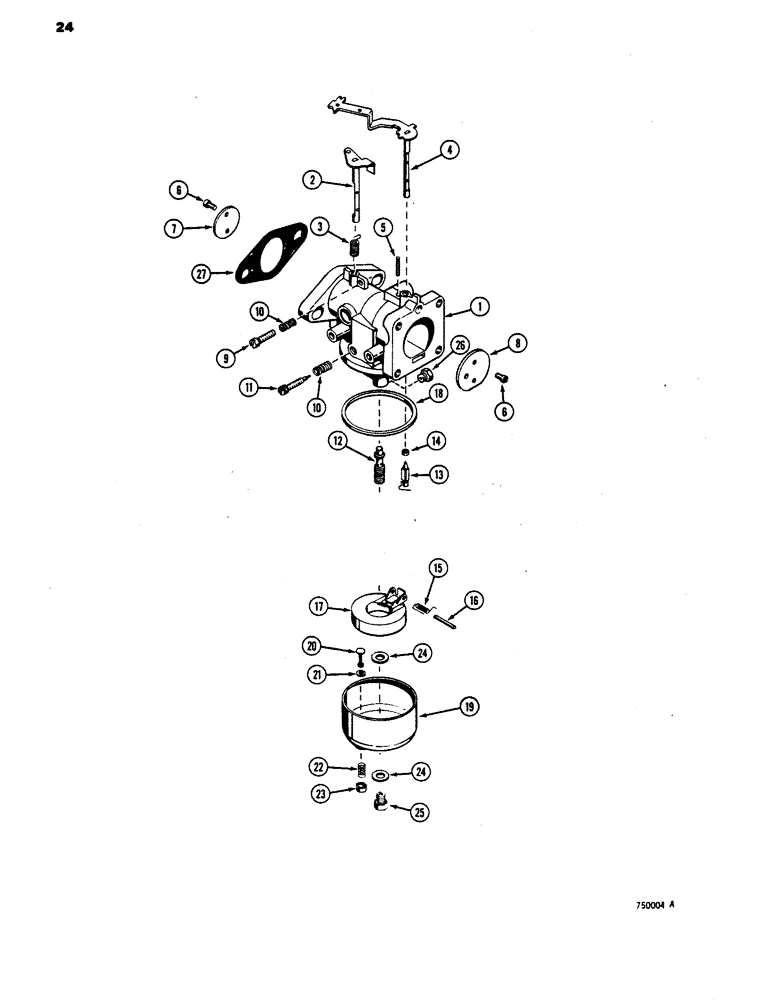

Запчасти Case 1816 (24) - CARBURETOR (10) - ENGINE

D59592

CARBURETOR

ASSEMBLY, fuel, Incl. Ref. 1 - 27

1шт.

On staked carburetors: order Ref, 6, 2 or 4 as needed.

1шт.

1

NSS

NOT SOLD SEPARAT

BASE carburetor

1шт.

2

D59630

SHAFT

THROTTLE control

1шт.

3

D59644

SPRING

throttle return

1шт.

4

D59632

SHAFT

CHOKE control

1шт.

5

D59633

VALVE SPRING

SPRING choke stop

1шт.

6

173-57

SCREW,Sl Rnd Hd, #6 - 32 x 1/4"

round head, slotted, 6 - 32 NC x 1/4"

4шт.

7

D59631

SHUTTER

PLATE throttle

1шт.

8

D59637

SHUTTER

PLATE choke

1шт.

9

D59634

SCREW

special, throttle adjusting

1шт.

10

D59636

VALVE SPRING

SPRING throttle and idle adjusting

2шт.

11

D59635

NEEDLE screw, idle adjusting

1шт.

Part of Repair Kit P/N D59648

1шт.

12

D61008

NOZZLE

fuel

1шт.

D59639

VALVE

SEAT AND SPRING ASSEMBLY, carburetor, Incl. Ref. 12 - 15

1шт.

Part of Repair Kit P/N D59648

1шт.

NSS

NOT SOLD SEPARAT

VALVE AND SEAT carburetor, Incl. Ref. 13 - 14

1шт.

13

NSS

NOT SOLD SEPARAT

VALVE carburetor

1шт.

14

NSS

NOT SOLD SEPARAT

SEAT valve

1шт.

15

D59646

VALVE SPRING

SPRING float

1шт.

16

D59641

SHAFT

float

1шт.

Part of Repair Kit P/N D59648

1шт.

17

D59640

FLOAT

carburetor bowl

1шт.

18

D59638

GASKET

, Serial Range: bowl-body

1шт.

Part of Repair Kit P/N D59648

1шт.

D59642

BOWL

ASSEMBLY, carburetor, Incl. Ref. 19 - 23

1шт.

19

NSS

NOT SOLD SEPARAT

BOWL carburetor

1шт.

C15898

PLUNGER

DRAIN ASSEMBLY, bowl, Incl. Ref. 20 - 23

1шт.

20

NSS

NOT SOLD SEPARAT

DRAIN bowl

1шт.

21

C15899

GASKET

drain

1шт.

Part of Repair Kit P/N D59648

1шт.

22

NSS

NOT SOLD SEPARAT

SPRING drain

1шт.

23

NSS

NOT SOLD SEPARAT

RETAINER spring

1шт.

24

C15900

GASKET

bowl

2шт.

Part of Repair Kit P/N D59648

1шт.

25

D59643

NUT

bowl retaining

1шт.

26

D66435

JET

fuel, main

1шт.

27

D59422

GASKET

1шт.

D59648

GASKET KIT

KIT, repair, Incl. Refs. 11, P/N D59639, Ref. 16, 18, 21 and 24

1шт.
