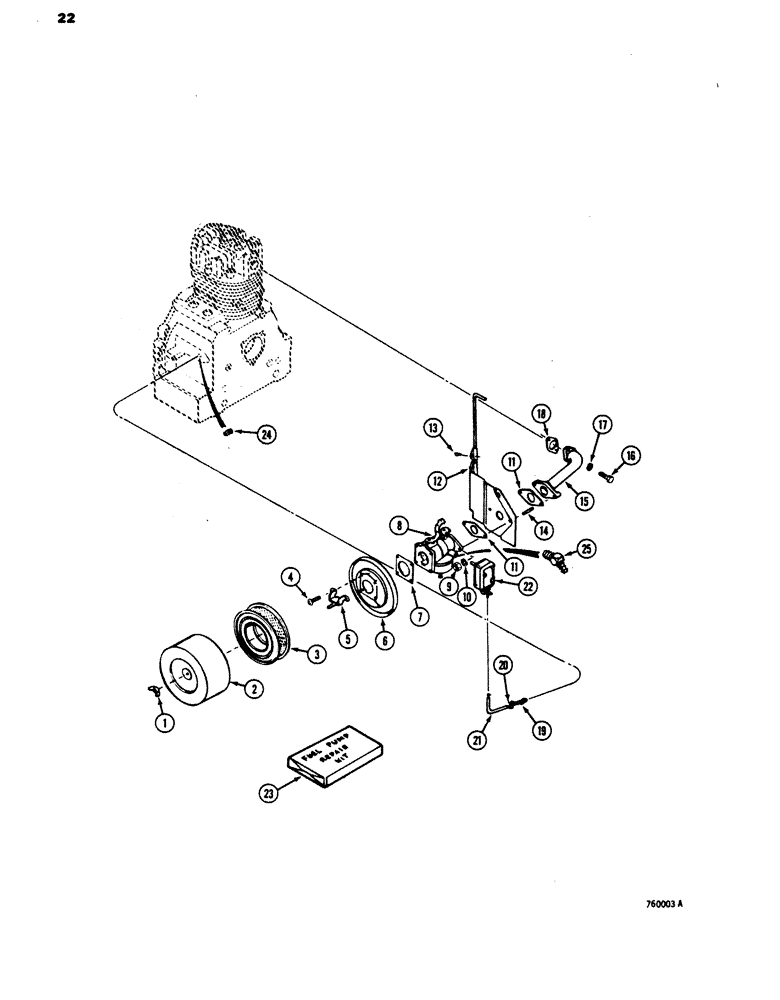

Запчасти Case 1816 (22) - ENGINE, FUEL SYSTEM AND AIR CLEANER (10) - ENGINE

1

129-404

WING NUT,1/4"-20

NUT wing, 1/4" - 20 NC

1шт.

2

D59462

COVER

air cleaner

1шт.

3

D66337

AIR CLEANER

ELEMENT air cleaner

1шт.

4

177-99

SCREW,Sl Fil Hd, #10 - 32 x 5/8"

fillister head, 10 - 32 NC x 5/8"

4шт.

5

D59461

BRACKET

cover retainer

1шт.

6

D59460

PLATE

air cleaner

1шт.

7

D59459

GASKET

air cleaner

1шт.

8

D59592

CARBURETOR

fuel, See Figure 24

1шт.

9

25-115

NUT,5/16"-24, G5

hex, 5/16"-24 NF

2шт.

10

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

2шт.

11

D59422

GASKET

carburetor

2шт.

12

D59423

BAFFLE

air extension, HH160-170008 Engine

1шт.

12

D66422

BAFFLE

air extension, HH160-170036 and HH160-170048 Engine

1шт.

13

REF

INSTRUCTION

SCREW self tapping, washer head, 1/4" - 20 NC x 5/8", use 182-509 screw and 193-7 washer

1шт.

14

D59421

STUD

carburetor mounting

2шт.

15

D59420

TUBE

PIPE intake

1шт.

16

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

2шт.

17

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER medium section lock, 5/16"

2шт.

18

D59419

GASKET

intake pipe

1шт.

19

D59577

FITTING

CONNECTOR hose barb, 45 degree, D59579 pump

1шт.

20

214-101

HOSE CLAMP,#6, 3/8", Spring

CLAMP hose

2шт.

21

D59578

LINE

HOSE fuel line, D59579 pump

1шт.

22

D59579

PUMP

fuel, impulse, if used, Incl. Ref. 23

1шт.

23

D59580

PUMP

KIT, pump repair

1шт.

24

221-11

PLUG,Sq Hd, 1/8"-27

square head, 1/8" NPT, if used

1шт.

25

217-281

FITTING,45 Degree Elbow, 1/4" Hose Barb x 1/8" Male NPTF

used with electric fuel pump 45º, 1/4" Hose x 1/8" NPTF, Barbed

1шт.
