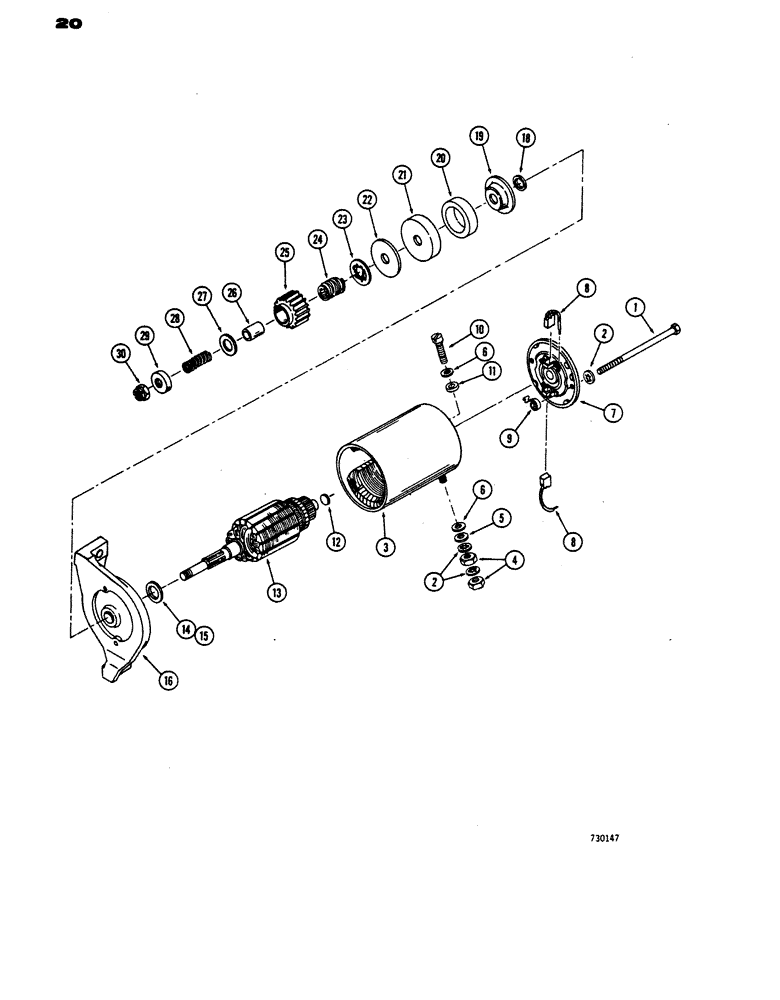

Запчасти Case 1816 (20) - D59591 STARTER, TECUMSEH #32817 - ROUND HOUSING (10) - ENGINE

D59591

MOTOR

STARTER motor, electrical, Incl. Ref. 1 - 30

1шт.

1

D59616

BOLT special

2шт.

D59617

HOUSING ASSEMBLY, starter, Incl. Ref. 2 - 6

1шт.

2

192-6

LOCK WASHER,#8

WASHER, LOCK, #8

4шт.

3

NSS

NOT SOLD SEPARAT

HOUSING starter

1шт.

4

C16064

NUT

hex, special

4шт.

5

C16069

WASHER

plain, special

1шт.

6

C16025

WASHER

INSULATOR washer

2шт.

7

D59615

CYLINDER END CAP

CAP ASSEMBLY, commutator end

1шт.

C16027

BRUSH

KIT, brush and spring, Incl. Ref. 8 - 9

1шт.

8

NSS

NOT SOLD SEPARAT

BRUSH starter

2шт.

9

C16028

SPRING

brush

2шт.

10

C16066

BOLT

special, terminal

1шт.

11

C16026

BUSHING

SPACER insulating

1шт.

12

C16072

WASHER

SPACER armature

1шт.

13

D59614

ARMATURE

starter

1шт.

14

D59612

SPACER armature, .039" thick

1шт.

15

D59613

SPACER armature, .008" thick

3шт.

16

D59611

CAP

ASSEMBLY, drive end, Incl. Ref. 17

1шт.

17

NSS

NOT SOLD SEPARAT

BEARING can, not shown

1шт.

D59610

DRIVE ASSY.

DRIVE ASSEMBLY, complete, Incl. Ref. 18 - 30

1шт.

18

D59628

BUSHING thrust

1шт.

19

D59627

WASHER thrust, inner

1шт.

20

D59626

CUSHION rubber

1шт.

21

D59625

CUP cushion

1шт.

22

D59624

WASHER thrust, outer

1шт.

23

D59629

STOP screw, washer

1шт.

D59623

MOTOR, ELECTRIC

GEAR AND SCREW ASSEMBLY, shaft, Incl. Ref. 24 - 25

1шт.

24

NSS

NOT SOLD SEPARAT

SCREW shaft

1шт.

25

NSS

NOT SOLD SEPARAT

GEAR shaft

1шт.

26

D59622

SLEEVE anti drift

1шт.

27

D59621

WASHER special, pinion

1шт.

28

D59620

SPRING

bendex

1шт.

29

D59619

STOP pinion, washer

1шт.

30

D59618

NUT hex, special

1шт.
