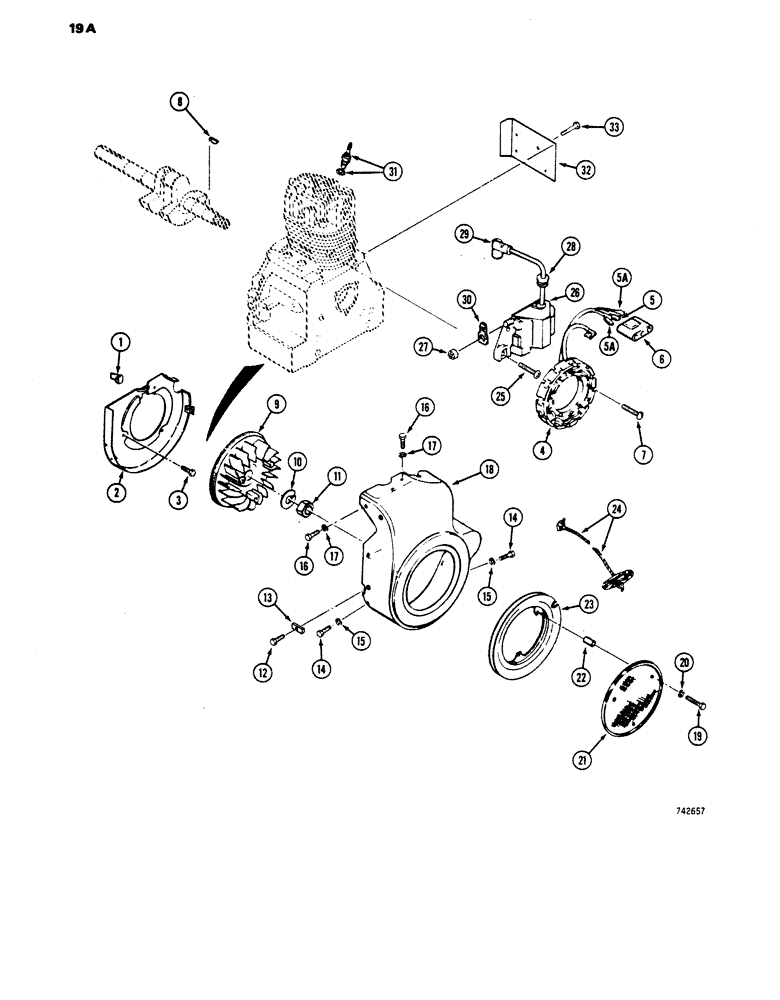

Запчасти Case 1816 (19A) - ENGINE FLYWHEEL, IGNITION AND HAND CRANKING SYSTEM, TECUMSEH ENGINE #HH160-170036 AND HH160-170048 (10) - ENGINE

1

D59584

CLIP

cable

1шт.

2

D59435

BAFFLE blower housing

1шт.

3

C16040

BOLT,Spcl, 1/4" - 20 x 5/8"

SCREW special, 1/4" - 20 NC x 5/8"

3шт.

D66429

COIL

AND ALTERNATOR ASSEMBLY, Incl. Ref. 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

COIL AND ALTERNATOR

1шт.

5

D66431

CLAMP

TERMINAL electrical

1шт.

5a

D66432

CLAMP

TERMINAL electrical

1шт.

6

D66430

CONNECTOR, ELEC

CONNECTOR electrical, flat

1шт.

7

174-215

SCREW,Sl Rnd Hd, #10 - 32 x 1"

round head, slotted, 10 - 32 NF x 1"

2шт.

8

126-19

WOODRUFF KEY,#11, 3/16" x 7/8"

KEY Woodruff, 3/16" x 7/8"

1шт.

9

D66423

FLYWHEEL

AND BLOWER

1шт.

10

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

11

25-1112

NUT,3/4"-16, G5

hex, 3/4" x 16 NF

1шт.

12

C16043

BOLT

hex head, slotted, 10 - 32 NF x 3/4"

1шт.

13

C15987

CLIP

CLAMP conduit

1шт.

14

14-56

SCREW,Hex, 5/16" - 24 x 3/8"

HHCS, 5/16" - 24 NF x 3/8"

2шт.

15

92-5

LOCK WASHER,5/16"

2шт.

16

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

HHCS, 1/4" - 20 NC x 7/16"

2шт.

17

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

18

D66426

HOUSING

flywheel and blower

1шт.

19

175-442

SCREW,Phil Truss Hd, 1/4" - 20 x 1 3/4"

truss head phillips, machine, 1/4" - 20 NC x 1-3/4"

3шт.

20

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

21

D59567

FILTER SCREEN

SCREW pulley and blower

1шт.

22

D59566

SPACER

screen

3шт.

23

D59446

PULLEY

start, HH160-170036 engine

1шт.

24

D59445

HANDLE

ROPE AND HANDLE starting, HH160-170036 engine

1шт.

25

193-550

SCREW,SEMS, Cross Fil Hd, 1/4"-20 x 3/4"

AND WASHER phillips head and conical spring lock washer, 1/4" - 20 NC x 3/4"

2шт.

D66424

MAGNET

O ASSEMBLY, solid state, Includes: Ref. 26 - 29

1шт.

26

NSS

NOT SOLD SEPARAT

MAGNETO solid state

1шт.

27

129-37

NUT,#10-32

1шт.

28

D59607

GROMMET wire

1шт.

29

C15854

COVER ASSY

BOOT spark plug insulator

1шт.

30

D66425

TERMINAL flat

1шт.

31

M20699

SPARK PLUG

PLUG spark, 14E2 Prestolite

1шт.

31

D76021

SPARK PLUG

PLUG spark, radio noise suppression

1шт.

32

D59440

EXTENSION blower housing

1шт.

33

C16048

SCREW,Phil Hex Hd, 1/4" - 20 x 1/2"

hex head phillips, 1/4" - 20 NC x 1/2"

2шт.
