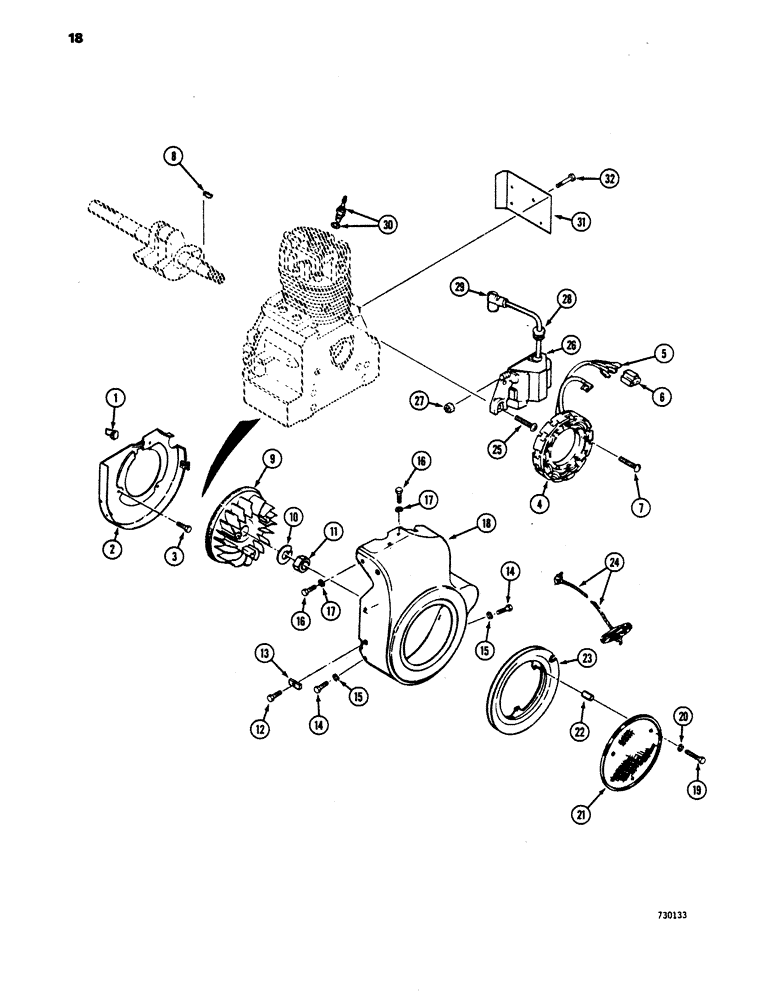

Запчасти Case 1816 (18) - ENGINE FLYWHEEL, IGNITION AND HAND CRANKING SYSTEM, TECUMSEH ENGINE # HH160-170008 (10) - ENGINE

1

D59584

CLIP

cable

1шт.

2

D59435

BAFFLE blower housing

1шт.

3

C16040

BOLT,Spcl, 1/4" - 20 x 5/8"

SCREW special, 1/4" - 20 NC x 5/8"

3шт.

D59583

COIL ASSY.

COIL AND ALTERNATOR ASSEMBLY, HH160-170008 Engine, Incl. Ref. 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

COIL AND ALTERNATOR

1шт.

5

D59609

TERMINAL STRIP

TERMINAL electrical

3шт.

6

D59608

CONNECTOR electrical, pyramid

1шт.

7

174-215

SCREW,Sl Rnd Hd, #10 - 32 x 1"

round head, slotted, 10 - 32 NF x 1"

2шт.

8

126-19

WOODRUFF KEY,#11, 3/16" x 7/8"

KEY WOODRUFF, 3/16" x 7/8"

1шт.

9

D59437

FLYWHEEL

AND BLOWER, HH160-170008 Engine

1шт.

10

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

11

25-1112

NUT,3/4"-16, G5

hex, 3/4" x 16 NF

1шт.

12

C16043

BOLT

hex, head, slotted, 10 - 32 NF x 3/8"

1шт.

13

C15987

CLIP

CLAMP conduit

1шт.

14

14-56

SCREW,Hex, 5/16" - 24 x 3/8"

HHCS, 5/16" - 24 NF x 3/8"

2шт.

15

92-5

LOCK WASHER,5/16"

2шт.

16

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

HHCS, 1/4" - 20 NC x 7/16"

2шт.

17

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

18

D59441

HOUSING

flywheel and blower, HH160-170008 Engine

1шт.

19

175-442

SCREW,Phil Truss Hd, 1/4" - 20 x 1 3/4"

truss head phillips, machine, 1/4" - 20 NC x 1-3/4"

3шт.

20

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

21

D59567

FILTER SCREEN

SCREEN pulley and blower

1шт.

22

D59566

SPACER

screen

3шт.

23

D59446

PULLEY

starter

1шт.

24

D59445

HANDLE

ROPE AND HANDLE starting

1шт.

25

193-550

SCREW,SEMS, Cross Fil Hd, 1/4"-20 x 3/4"

AND WASHER phillips head and conical spring lock washer 1/4" - 20 NC x 3/4"

2шт.

D59439

MAGNETO

ASSEMBLY, solid state, Includes: Ref. 26 - 29

1шт.

26

NSS

NOT SOLD SEPARAT

MAGNETO solid state

1шт.

27

129-37

NUT,#10-32

1шт.

28

D59607

GROMMET wire

1шт.

29

C15854

COVER ASSY

BOOT spark plug insulator

1шт.

30

M20699

SPARK PLUG

PLUG spark, 14E2 Prestolite

1шт.

30

D76021

SPARK PLUG

PLUG spark, radio noise suppression

1шт.

31

D59440

EXTENSION blower housing

1шт.

32

C16048

SCREW,Phil Hex Hd, 1/4" - 20 x 1/2"

hex head phillips 1/4" - 20 NC x 1/2"

2шт.
