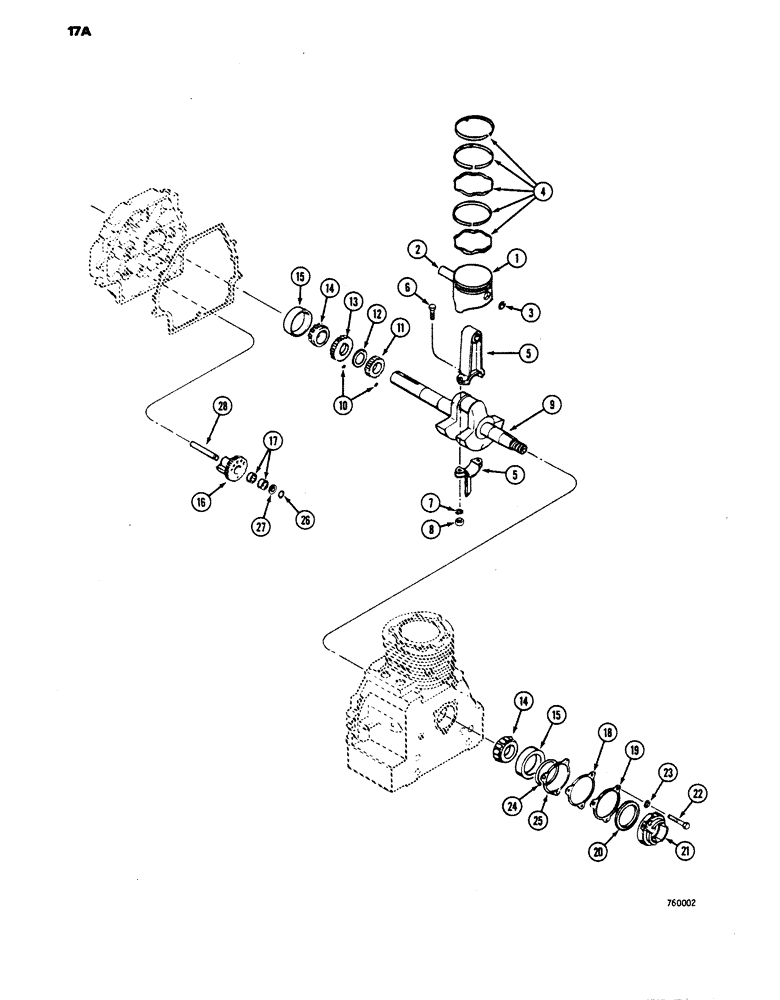

Запчасти Case 1816 (17A) - CRANKSHAFT, PISTON, CONNECTING ROD AND WEIGHT, TECUMSEH ENGINE #HH160-170036 AND HH160-170048 (10) - ENGINE

D59383

PISTON

AND PIN ASSEMBLY, standard, Incl. Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

PISTON standard

1шт.

2

NSS

NOT SOLD SEPARAT

PIN, Serial Range: rod-piston

1шт.

3

D59601

RING

retaining

2шт.

4

D59388

RING

SET piston, standard

1шт.

D59384

PISTON

AND PIN ASSEMBLY, .010" oversize, Incl. Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

PISTON .010" oversize

1шт.

2

NSS

NOT SOLD SEPARAT

PIN, Serial Range: rod-piston

1шт.

3

D59601

RING

retaining

2шт.

4

D59389

RING

SET piston, .010" oversize

1шт.

D59385

PISTON

AND PIN ASSEMBLY, .020" oversize, Incl. Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

PISTON, .020" oversize

1шт.

2

NSS

NOT SOLD SEPARAT

PIN, Serial Range: rod-piston

1шт.

3

D59601

RING

retaining

2шт.

4

D59390

RING

SET piston, .020" oversize

1шт.

D59386

SPARE PART

PISTON AND PIN ASSEMBLY, .030" oversize, Incl. Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

PISTON, .030" oversize

1шт.

2

NSS

NOT SOLD SEPARAT

PIN, Serial Range: rod-piston

1шт.

3

D59601

RING

retaining

2шт.

4

D59391

PISTON RING SET

RING SET piston, .030" oversize

1шт.

D59387

PISTON

AND PIN ASSEMBLY, .040" oversize, Incl. Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

PISTON, .040" oversize

1шт.

2

NSS

NOT SOLD SEPARAT

PIN, Serial Range: piston-rod

1шт.

3

D59601

RING

retaining

2шт.

4

D59392

RING, SET

RING SET piston, .040" oversize, Incl. Ref. 5 - 8

1шт.

D59393

ROD

ASSEMBLY, connecting

1шт.

5

NSS

NOT SOLD SEPARAT

ROD connecting

1шт.

6

D69602

BOLT

special

2шт.

7

D59603

WASHER

special

2шт.

8

131-572

NUT hex, lock, 5/16" x 24 NF

2шт.

D66417

CRANKSHAFT

ASSEMBLY, HH160-170036 engine

1шт.

D71501

CRANKSHAFT

ASSEMBLY, HH160-170048 engine, Incl. Ref. 9 - 17

1шт.

9

NSS

NOT SOLD SEPARAT

CRANKSHAFT engine

1шт.

10

C15830

PIN

gear, crankshaft

2шт.

11

D59597

GEAR

crankshaft

1шт.

12

D59600

SPACER

gear

1шт.

13

D66418

GEAR

counterbalance

1шт.

14

D59598

TAPERED BEARING

BEARING tappered roller

2шт.

15

D59595

TAPERED BEARING

CUP bearing

2шт.

16

D66427

WEIGHT

COUNTERBALANCE ASSEMBLY, weight, Incl. Ref. 17

2шт.

17

D59606

BEARING

needle

2шт.

18

D59587

SHIM,.0035" Thk

Gasket .0035" Thk

1шт.

19

D59588

SHIM

gasket, .005" to .007" thick

1шт.

20

D59589

BUSHING

SPACER seal, .010" thick

1шт.

21

D59582

COVER

crankshaft

1шт.

22

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

3шт.

23

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER medium section lock, 5/16"

3шт.

24

D59433

SEAL

o ring

1шт.

25

D59586

SHIM

gasket, .003" to .004" thick

1шт.

26

A11538

SNAP RING,#50, Ext

Ring, Snap, , replaces A39489 #50, Ext

2шт.

27

D59572

WASHER

thrust

2шт.

28

D59605

SHAFT

counterbalance

2шт.

D66451

KIT

gear and weight, service Replacement for HH160-170008 engine, Incl. Ref 13,14

1шт.
