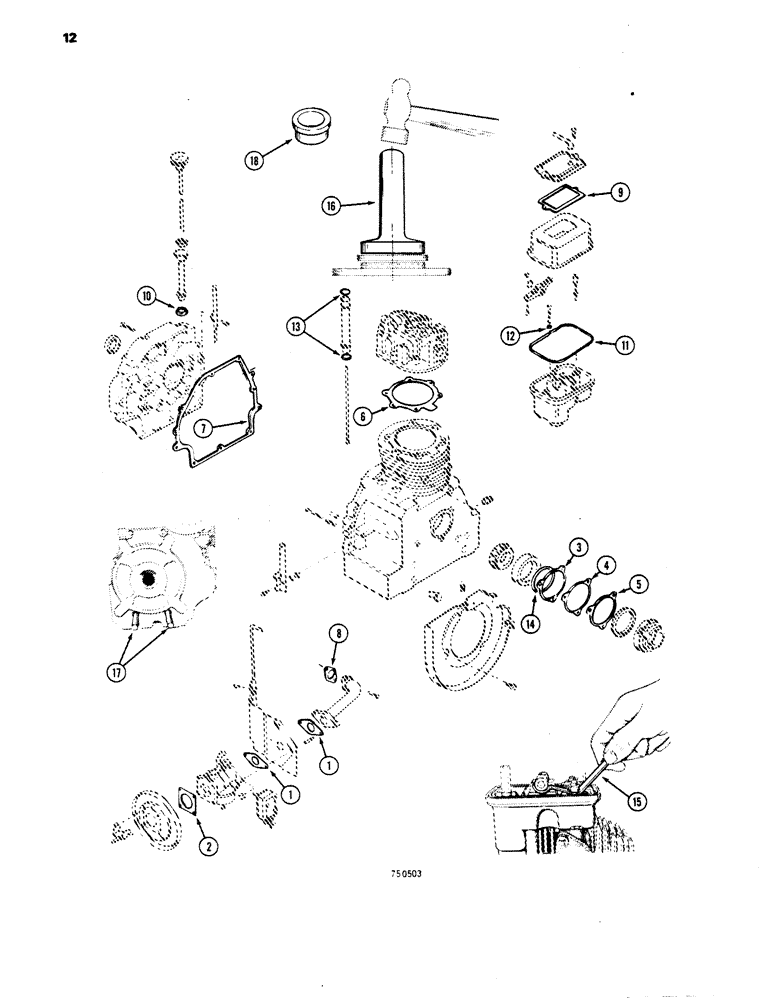

Запчасти Case 1816 (12) - ENGINE GASKET KIT (10) - ENGINE

D59593

GASKET KIT

KIT, gasket, Incl. Ref. 1 - 14

1шт.

1

D59422

GASKET

carburetor mounting

2шт.

2

D59459

GASKET

air cleaner mounting

1шт.

3

D59586

SHIM

gasket, .003 to .004" thick

1шт.

4

D59587

SHIM,.0035" Thk

Gasket .0035" Thk

1шт.

5

D59588

SHIM

gasket, .005" to .007" thick

1шт.

6

N6520

GASKET

cylinder head, Replaces D59414

1шт.

7

D59409

GASKET

cylinder cover

1шт.

8

D59419

GASKET

intake pipe

1шт.

9

D59456

GASKET

breather, valve

1шт.

10

C15979

GASKET

oil filler tube

1шт.

11

D59454

O-RING

SEAL o ring, valve cover

1шт.

12

D59447

O-RING

SEAL o ring, valve body

3шт.

13

D59443

O-RING

SEAL o ring, push rod tube

4шт.

14

D59433

SEAL

o ring, crankshaft

1шт.

15

D70630

COMPRESSOR

spring, tools

1шт.

16

D70631

SEAL

DRIVER seal, tools

1шт.

17

D70632

TOOL

ALIGNMENT tools

1шт.

18

D70633

SEAT

SLEEVE seat, tools

1шт.
