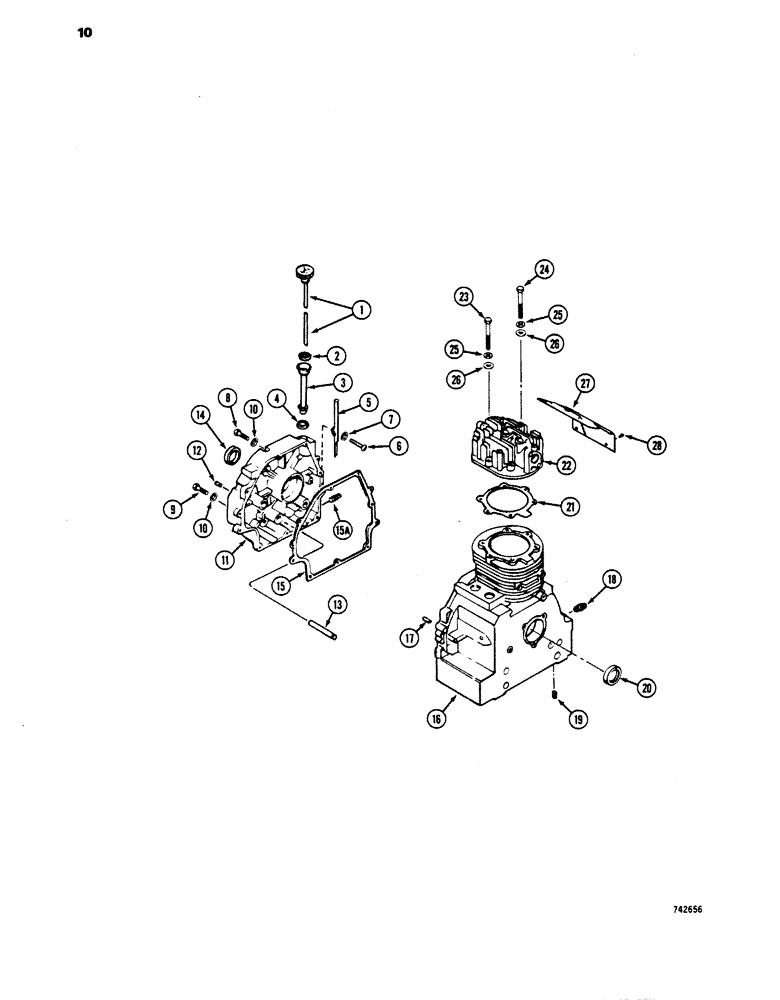

Запчасти Case 1816 (10) - ENGINE BLOCK AND HEAD (10) - ENGINE

1

D59413

DIPSTICK

oil, HH160-170008 and HH160-170048 engine, Incl. Ref. 2

1шт.

2

D59649

O-RING

SEAL o ring

1шт.

1

D66420

DIPSTICK

oil, HH160-170036 engine, Incl. Ref. 2

1шт.

2

D66421

O-RING

SEAL o ring

1шт.

3

D59575

TUBE

oil fill, HH160-170008 and HH160-170048 engine

1шт.

3

D66428

TUBE

oil fill, HH160-170036 engine

1шт.

4

C15979

GASKET

oil tube

1шт.

5

D59574

TUBE

extension, oil return

1шт.

6

182-133

SCREW machine, 10 - 24 NC x 7/8"

1шт.

7

193-6

LOCK WASHER,Ext Tooth, #10

WASHER medium section lock, 10

1шт.

8

13-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

1шт.

9

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

8шт.

10

193-8

LOCK WASHER,Ext Tooth, 1/4"

WASHER medium section lock, 1/4"

9шт.

D59410

COVER

ASSEMBLY, block, HH160-170008 and HH160-170048 engine

1шт.

D66419

COVER

ASSEMBLY, block, HH160-170036 engine, Incl. Ref. 11 - 15A

1шт.

11

NSS

NOT SOLD SEPARAT

COVER block

1шт.

12

221-1001

PLUG,Sq Hd, 1/8"-27 NPTF

pipe, square head, 1/8" NPT

2шт.

13

D59605

SHAFT

weight

2шт.

14

D59594

SEAL

oil

1шт.

15

D59409

GASKET

, Serial Range: cover-block

1шт.

15a

221-1003

PLUG pipe, square head, 3/8" NPT, D66419 cover

1шт.

D59381

SPARE PART

BLOCK ASSEMBLY, cylinder, Incl. Ref. 16 - 20

1шт.

16

NSS

NOT SOLD SEPARAT

BLOCK cylinder

1шт.

17

C15973

PIN

dowel

2шт.

18

221-1003

PLUG pipe, square head, 3/8" NPT

2шт.

19

221-1001

PLUG,Sq Hd, 1/8"-27 NPTF

pipe, square head, 1/8" NPT

1шт.

20

D59594

SEAL

oil

1шт.

21

N6520

GASKET

head, Replaces D59414

1шт.

22

D59415

HEAD (CYLINDER)

HEAD cylinder

1шт.

23

113-620

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

HHCS, 5/16" - 18 NC x 1-3/4"

4шт.

24

13-522

BOLT,Hex, 5/16" - 18 x 1-3/8", Gr 5

HHCS, 5/16" - 18 NC x 1-3/8"

2шт.

25

D59418

WASHER

flat, special

6шт.

26

D59417

WASHER

Belleville

6шт.

27

D59565

COVER

head, cylinder

1шт.

28

187-332

SCREW machine, 10 - 24 NC x 3/8"

2шт.
