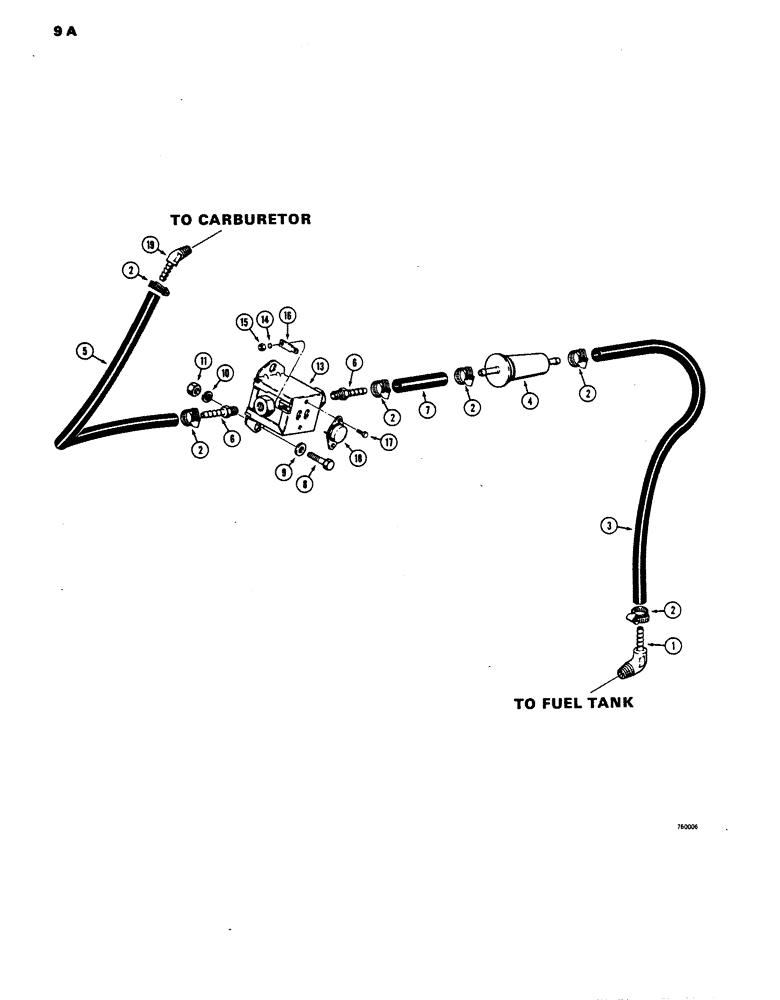

Запчасти Case 1816 (09A) - FUEL LINES, MODELS WITH ELECTRIC FUEL PUMP (10) - ENGINE

1

217-294

FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/4" Male NPTF

ELBOW hose barb, 90 degree

1шт.

2

214-335

HOSE CLAMP,#4, 0.25/0.62 Type M Worm

CLAMP worm screw type

6шт.

3

D72349

FUEL HOSE,0.25" ID x 20.00", SAE 30R6 or SAE 30R7

1шт.

4

D59949

FILTER

fuel

1шт.

5

D53521

FUEL HOSE

HOSE, 1/4" I.D. x 12-1/2"

1шт.

6

217-120

ELBOW,1/4" Hose Barb x 1/8" Male NPTF

CONNECTOR hose barb, straight

2шт.

7

D72352

FUEL HOSE,6.40 mm ID x 50.80 mm, SAE 30R6 or SAE 30R7

1шт.

8

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

9

195-18

WASHER,1/4"

flat, 1/4"

2шт.

10

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

11

25-104

NUT,1/4"-20, G5

2шт.

12

NSS

NOT SOLD SEPARAT

RESERVED

1шт.

D72347

PUMP

fuel, electric, Incl. Ref. 13 - 18

1шт.

13

NSS

NOT SOLD SEPARAT

BODY

1шт.

14

192-6

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

15

129-16

NUT,#8-32

1шт.

16

223-450

TERMINAL CONNECTOR

TERMINAL blade

1шт.

17

163-17

SCREW,Sl Hex Wshr Hd, #6 - 32 x 3/8"

HHCS, 6 - 32 NC x 3/8"

2шт.

18

D72785

TRANSISTOR

1шт.

19

217-281

FITTING,45 Degree Elbow, 1/4" Hose Barb x 1/8" Male NPTF

Elbow 45º, 1/4" Hose x 1/8" NPTF, Barbed

1шт.
