Запчасти Case 1700-SERIES (168) - D55217 DIFFERENTIAL RELIEF VALVE (35) - HYDRAULIC SYSTEMS

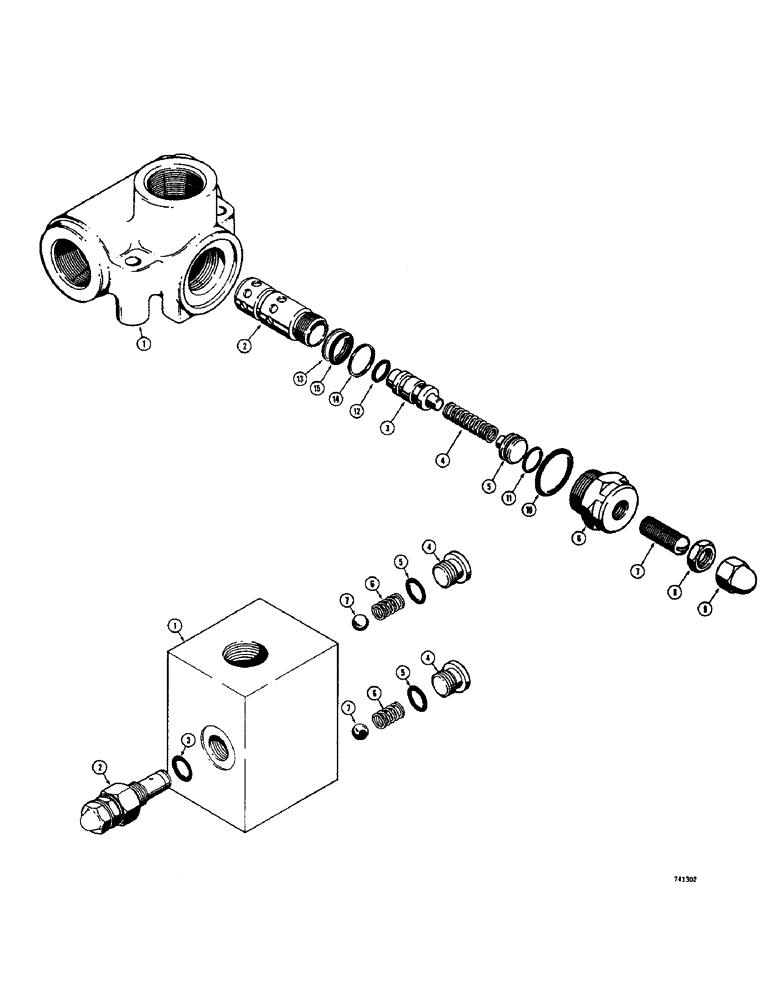

Схема запчастей Case 1700-SERIES - (168) - D55217 DIFFERENTIAL RELIEF VALVE (35) - HYDRAULIC SYSTEMS

Артикул

Название

Примечание

Количество

D55217

LOCK VALVE

VALVE - relief, differential (Cross #RD120), Includes: Ref. 1 - 15, Serial Range: -9816912

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve, Serial Range: -9816912

1шт.

NSS

NOT SOLD SEPARAT

RELIEF ASSEMBLY - complete, Includes: Ref. 2 - 15, Serial Range: -9816912

1шт.

2

D55935

HOUSING

BODY - relief, lower, Serial Range: -9816912

1шт.

3

D55936

HOOK

POPPET - relief, Serial Range: -9816912

1шт.

4

D55931

SPRING

- poppet, Serial Range: -9816912

1шт.

5

D55932

PISTON

SEAT - spring, Serial Range: -9816912

1шт.

6

D55934

HOUSING

BODY - relief, upper, Serial Range: -9816912

1шт.

7

D55933

SCREW

- adjusting, Serial Range: -9816912

1шт.

8

86585245

SPECIAL NUT,JAM, 5/8" - 18

- hex., jam (3/8" - 24 NF), Serial Range: -9816912

1шт.

9

129-526

CROWN NUT,Low, 3/8" - 24

- acorn, low crown (3/8" - 24 NF), Serial Range: -9816912

1шт.

D55937

KIT

- seal, Includes: Ref. 10 - 15, Serial Range: -9816912

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Serial Range: -9816912

1шт.

11

A30825

O-RING,0.364" ID x 0.504" OD x 0.07"

SEAL - "O" ring (1/16" x 3/8" I.D.), Serial Range: -9816912

1шт.

12

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk, Serial Range: -9816912

1шт.

13

W12244

RING

WASHER - backup, Serial Range: -9816912

1шт.

14

L30443

BACK-UP RING,0.547" ID x 0.049" Width

WASHER - backup, Serial Range: -9816912

1шт.

15

A65918

O-RING,0.551" ID x 0.691" OD

SEAL - "O" ring (1/16" x 9/16" I.D.), Serial Range: -9816912

1шт.

D64257

LOCK VALVE

VALVE - relief (Parker #HF 30147), D64257 dual, Includes: Ref. 1 - 7, Start Serial: 9824716

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve, D64257 dual relief, Includes: Ref. 1 - 3, Start Serial: 9824716

1шт.

D64837

LOCK VALVE

RELIEF ASSEMBLY - valve, D64257 dual, Includes: Ref. 2 - 3, Start Serial: 9824716

1шт.

2

NSS

NOT SOLD SEPARAT

RELIEF ASSEMBLY, D64257 dual relief valve, Start Serial: 9824716

1шт.

4

D68924

PLUG

- hex., socket head, D64257 dual relief valve, Includes: Ref. 5, Start Serial: 9824716

2шт.

5

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

SEAL - "O" ring, D64257 dual relief valve, Start Serial: 9824716

1шт.

6

D64838

VALVE SPRING

SPRING - check, D64257 dual relief valve, Start Serial: 9824716

2шт.

7

211-260

BALL

- check, D64257 dual relief valve, Start Serial: 9824716

2шт.

3

218-5004

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, seal, D64257 dual relief valve, Start Serial: 9824716

1шт.

Выбрано товаров: 27
