(162) - HYDRAULIC FILTER

Запчасти Case 1700-SERIES (162) - HYDRAULIC FILTER (35) - HYDRAULIC SYSTEMS

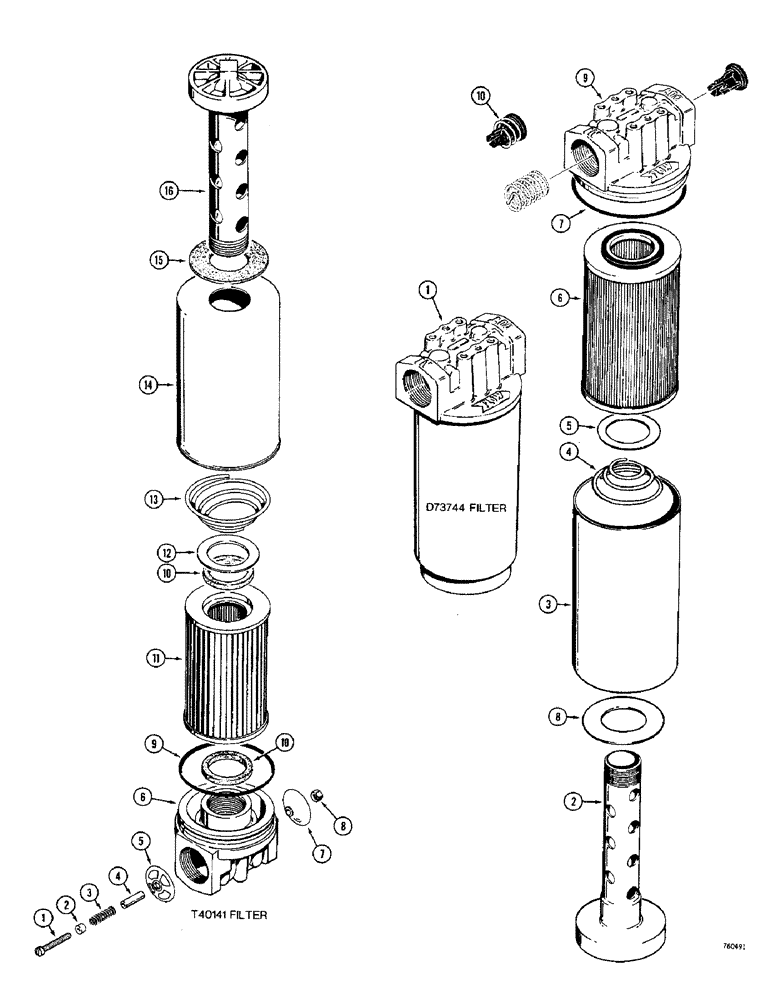

Схема запчастей Case 1700-SERIES - (162) - HYDRAULIC FILTER (35) - HYDRAULIC SYSTEMS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

T40141

FILTER

ASSEMBLY - hydraulic oil, Includes: Ref. 1 - 16

1шт.

1

169-140

SCREW,Sl Fil Hd, #8 - 32 x 1 3/4"

- bypass filter head

1шт.

2

T29780

CYLINDER END CAP

CAP - bypass stem

1шт.

3

T29782

SPRING

- bypass

1шт.

4

T29783

SPACER

- bypass valve

1шт.

5

T29784

GUIDE

- bypass

1шт.

6

NSS

NOT SOLD SEPARAT

HEAD - filter

1шт.

7

T29785

VALVE

- bypass

1шт.

8

131-552

NUT,#8-32

NUT - lock, bypass

1шт.

9

T40150

O-RING

SEAL - "O" ring, housing

1шт.

Part of Element Kit P/N T40153

1шт.

10

T40152

GASKET

2шт.

Part of Element Kit P/N T40153

1шт.

11

NSS

NOT SOLD SEPARAT

ELEMENT - 33 micron

1шт.

Part of Element Kit P/N T40153

1шт.

12

T42195

WASHER

- backup

1шт.

13

T29793

SPRING

- conical

1шт.

14

T29794

HOUSING

- filter

1шт.

15

T40156

GASKET

- center post seal

1шт.

Part of Element Kit P/N T40153

1шт.

16

T40157

POST

- center (Replaces D46226

1шт.

T40153

FILTER

KIT - element, Includes: Ref. 9, 10, 11 and 15

1шт.

1

D73744

FILTER, ENGINE OIL

FILTER - hydraulic oil, 6 mounting holes in head, service replacement

1шт.

L36030

HOUSING

ASSEMBLY - with filter, 6 mounting holes in head, service replacement, Includes: Ref. 2 - 5

1шт.

2

T29796

SUPPORT

CENTER POST - filter, 6 mounting holes in head, service replacement

1шт.

3

T29794

HOUSING

- filter, 6 mounting holes in head, service replacement

1шт.

4

T29793

SPRING

- filter element, 6 mounting holes in head, service replacement

1шт.

5

T42195

WASHER

- backup

2шт.

D73743

ELEMENT

ASSEMBLY, 6 mounting holes in head, service replacement, Includes: Ref. 6 - 7

1шт.

6

NSS

NOT SOLD SEPARAT

ELEMENT, 6 mounting holes in head, service replacement

1шт.

7

W12214

GASKET

SEAL - "O" ring, filter head, 6 mounting holes in head, service replacement

1шт.

8

T29795

GASKET

- post to housing, 6 mounting holes in head, service replacement

1шт.

9

NSS

NOT SOLD SEPARAT

HEAD - filter, 6 mounting holes in head, service replacement

1шт.

10

D73742

VALVE - bypass, 6 mounting holes in head, service replacement

1шт.
