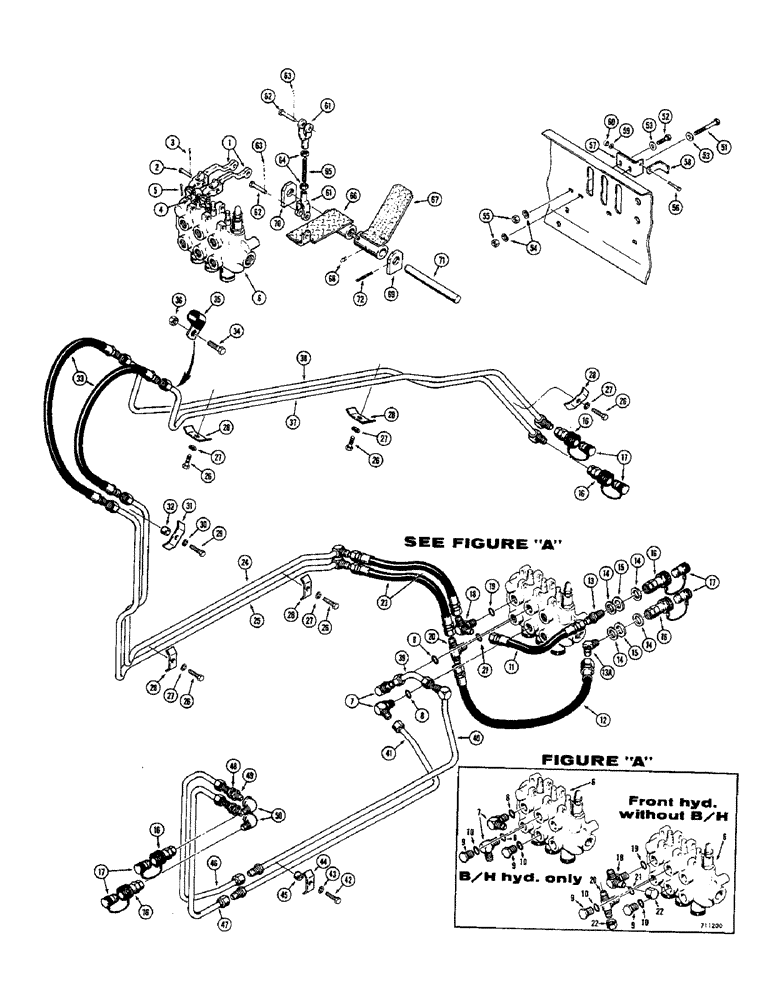

Запчасти Case 1700-SERIES (158) - AUXILIARY HYDRAULICS (35) - HYDRAULIC SYSTEMS

1

T40233

HANDLE

Valve

2шт.

2

T40551

PIN

Clevis (1/2" dia. x 1-3/8")

2шт.

3

132-7

COTTER PIN,1/16" x 3/4"

2шт.

4

36640

DRAG LINK

ASSEMBLY - handle

2шт.

5

132-13

PIN

Cotter (1/16" dia. x 1-1/2")

2шт.

6

REF

INSTRUCTION

VALVE ASSEMBLY - see Figures 172 and 174 for valves

1шт.

7

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Incl. Ref. 8

1шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

9

86512512

PLUG,7/8" - 14 ORB

Valve port, Incl. Ref. 10

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

11

D48532

HOSE ASSY.

Valve to coupling (13-1/64" long)

1шт.

12

D27478

HOSE ASSY.

Valve to coupling (22" long)

1шт.

13

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - straight, male

1шт.

13a

D54815

ELBOW

45 degree male

1шт.

14

T40267

WASHER

SPARE PART BUSHING - 14 ga. steel

4шт.

15

T42340

BUSHING

SPACER - rubber

2шт.

16

T40265

COUPLING, BREAK AWAY

Quick disconnect, female

6шт.

17

T40274

CAP

CUP - dust, coupling

6шт.

18

D53471

TEE

Special (Hydraulics to loader arm only) Top valve port (If used), Includes Ref. 19

1шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

20

218-5184

TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Adjustable, male (Hydraulics to loader arm only) Bottom valve port (If used), Includes: Ref. 21

1шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

22

218-756

CAP,37 Degree, 7/8"-14

Hydraulics, Plug (If used)

2шт.

23

19207

HOSE ASSY.

Valve to tube (19-1/8" long)

2шт.

24

D53460

SPARE PART Auxiliary hydraulic, upper

1шт.

25

D53458

SPARE PART Auxiliary hydraulics, lower

1шт.

26

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

5шт.

27

92-6

LOCK WASHER,3/8"

5шт.

28

A13622

PLATE, LOCKING

CLAMP - tube

5шт.

29

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

30

92-6

LOCK WASHER,3/8"

1шт.

31

A13622

PLATE, LOCKING

CLAMP - tube

1шт.

32

D33552

BUSHING

SPACER - clamp

1шт.

33

D25177

HOSE ASSY.

Auxiliary hydraulics (26" long)

2шт.

34

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

35

NLS

NO LONGER SERVICED

Tube

2шт.

36

25-106

NUT,3/8"-16, G5

Hex

2шт.

37

D53380

SPARE PART At coupling, inner

1шт.

38

D53382

SPARE PART At coupling, outer

1шт.

39

D53564

SPARE PART Hydraulic, upper (At valve)

1шт.

40

D53469

SPARE PART Hydraulic, upper

1шт.

41

D53467

SPARE PART Hydraulic, lower (At valve)

1шт.

42

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

43

92-6

LOCK WASHER,3/8"

1шт.

44

A13622

PLATE, LOCKING

CLAMP - tube

1шт.

45

D33552

BUSHING

SPACER - clamp

1шт.

46

D53566

TUBE

Hydraulic, upper (At coupling)

1шт.

47

D53568

TUBE

Hydraulic, lower (At coupling)

1шт.

48

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

Hex., lock (3/8" NPT)

2шт.

49

D53570

SPARE PART Bulkhead, special

2шт.

50

217-1019

ELBOW,1/2" - 14 Female x 1/2" - 14 Male

Street

2шт.

51

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

1шт.

52

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

53

195-25

WASHER,3/8"

2шт.

54

92-6

LOCK WASHER,3/8"

2шт.

55

25-106

NUT,3/8"-16, G5

2шт.

56

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

57

D53476

SPARE PART BRACKET

1шт.

58

D53477

SPARE PART Valve handle

1шт.

59

195-18

WASHER,1/4"

1шт.

60

131-650

NUT,1/4"-20, GB

1шт.

61

213-6

ADJUSTABLE CLEVIS,1/2"-20 x 3"

YOKE

2шт.

62

T40252

CLEVIS

2шт.

63

132-48

COTTER PIN,1/8" x 1"

2шт.

64

25-118

NUT,1/2"-20, G5

2шт.

65

T40253

ROD

Connecting, linkage

1шт.

66

T42457

PEDAL

Linkage half

1шт.

67

T42452

PEDAL

Flip over half

1шт.

68

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

69

T42449

BRACKET

Pedal, RH

1шт.

70

T42450

BRACKET

Pedal, LH

1шт.

71

T42451

AXLE PIN

SHAFT - pivot

1шт.

72

138-104

LOCK PIN,3/16" x 2", Slotted

1шт.
