Запчасти Case 1700-SERIES (157C) - LOADER BUCKET HYDRAULICS, USED TRACTOR SERIAL NO. 9824716 AND AFTER (35) - HYDRAULIC SYSTEMS

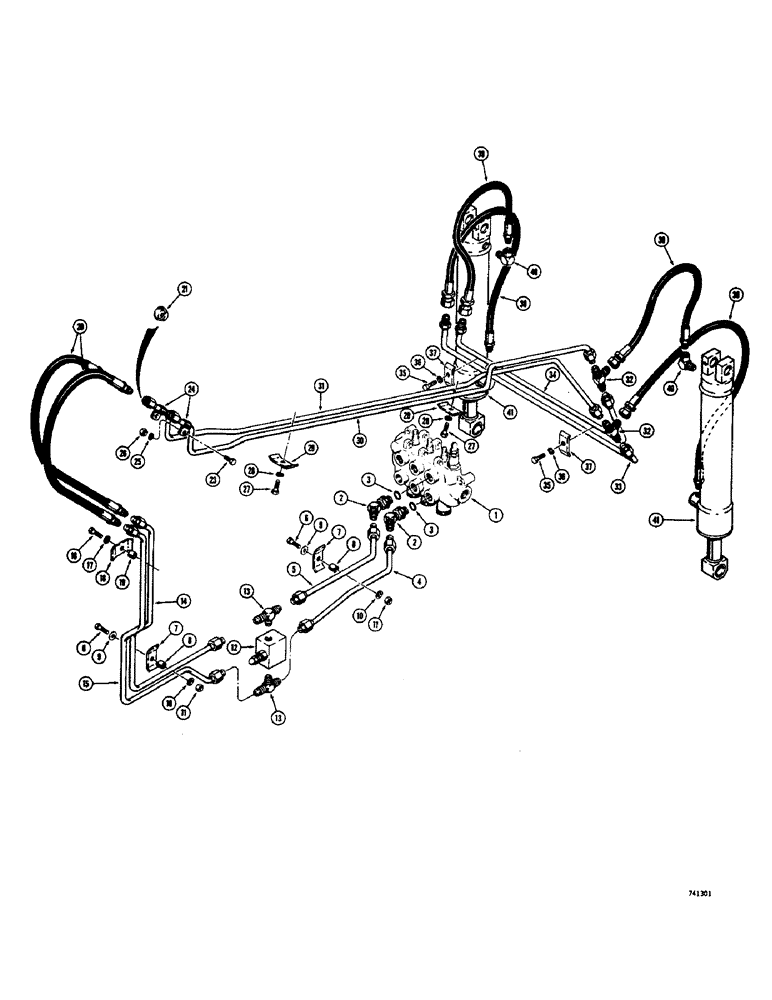

Схема запчастей Case 1700-SERIES - (157C) - LOADER BUCKET HYDRAULICS, USED TRACTOR SERIAL NO. 9824716 AND AFTER (35) - HYDRAULIC SYSTEMS

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

VALVE - bucket, parts list pages 172 and 174

1шт.

2

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Male, Incl. Ref 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

D64406

SPARE PART Tilt, bottom

1шт.

5

D64402

SPARE PART Tilt, top

1шт.

6

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

7

A13622

PLATE, LOCKING

CLAMP - tube

2шт.

8

D33552

BUSHING

SPACER - tube

2шт.

9

195-25

WASHER,3/8"

2шт.

10

92-6

LOCK WASHER,3/8"

2шт.

11

25-106

NUT,3/8"-16, G5

2шт.

12

D64257

LOCK VALVE

ASSEMBLY - dual relief (Parts list Figure 168)

1шт.

13

218-555

TEE,7/8"-14, 37 Degree x 1/2"-14, NPTF Br

Street

2шт.

14

D64410

SPARE PART Tilt, top

1шт.

15

D64408

SPARE PART Tilt, bottom

1шт.

16

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

17

92-6

LOCK WASHER,3/8"

1шт.

18

A13622

PLATE, LOCKING

CLAMP - tube

1шт.

19

D33552

BUSHING

SPACER - tube clamp

1шт.

20

D25177

HOSE ASSY.

Hydraulic, to lift arm (26" long)

2шт.

21

D57062

RESTRICTOR

Disc

1шт.

22

RESERVED

1шт.

23

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

24

49885

CLAMP

Tube

2шт.

25

92-6

LOCK WASHER,3/8"

2шт.

26

25-106

NUT,3/8"-16, G5

2шт.

27

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

28

92-6

LOCK WASHER,3/8"

2шт.

29

A13622

PLATE, LOCKING

CLAMP - tube

2шт.

30

D57387

SPARE PART Loader arm, outer

1шт.

31

D57389

SPARE PART Loader arm, inner

1шт.

32

218-595

TEE,7/8"-14, 37 Degree

Male

2шт.

33

D57402

SPARE PART Crossover, lower

1шт.

34

D57400

SPARE PART Crossover, upper

1шт.

34

D57400

SPARE PART Crossover, upper

1шт.

35

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

36

92-6

LOCK WASHER,3/8"

2шт.

37

A13622

PLATE, LOCKING

CLAMP - tube

2шт.

38

D57313

HOSE ASSY.

At rod end of cylinder (29" long)

2шт.

39

D54403

HOSE ASSY.

At closed end of cylinder (22" long)

2шт.

40

217-1016

ELBOW,3/8" - 18 Female x 3/8" - 18 Male

Street

2шт.

41

REF

INSTRUCTION

CYLINDER - bucket dump (See page 228 for cylinders)

2шт.
