Запчасти Case 1700-SERIES (156) - LOADER BUCKET HYDRAULICS, USED BEFORE TRACTOR SERIAL NO. 9824716 (35) - HYDRAULIC SYSTEMS

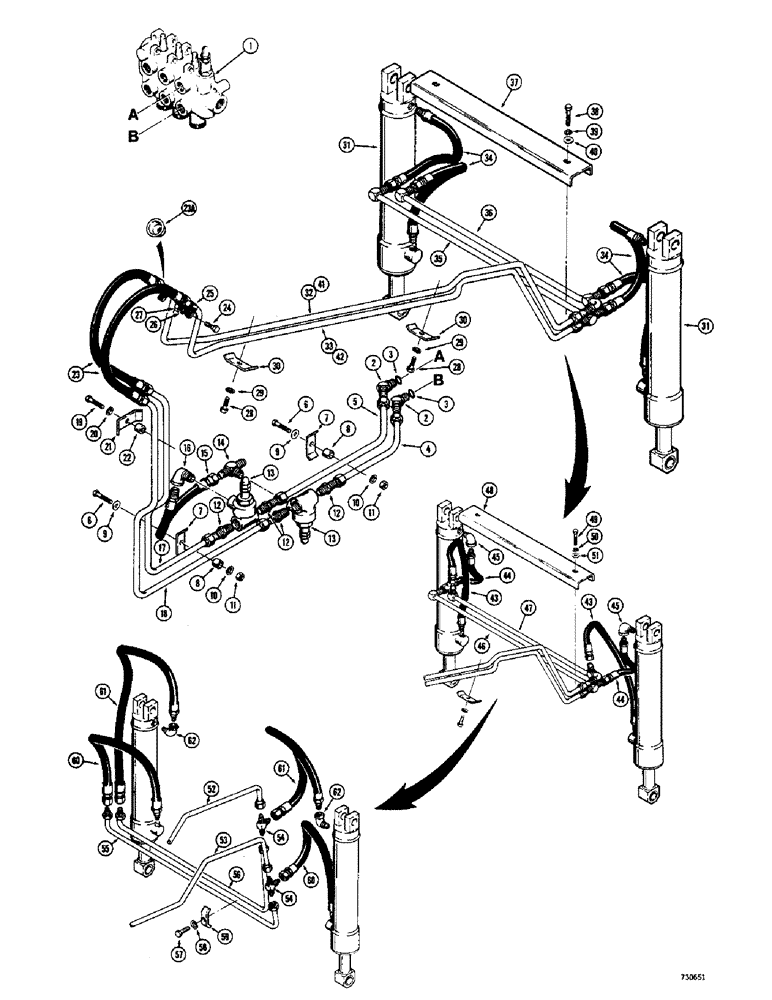

Схема запчастей Case 1700-SERIES - (156) - LOADER BUCKET HYDRAULICS, USED BEFORE TRACTOR SERIAL NO. 9824716 (35) - HYDRAULIC SYSTEMS

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

VALVE - bucket, parts list Figures 172 and 174

1шт.

2

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Male

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

D53371

TUBE

Tilt, bottom

1шт.

5

D53373

TUBE

Tilt, top

1шт.

6

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

7

A13622

PLATE, LOCKING

CLAMP - tube

2шт.

8

D33552

BUSHING

SPACER - tube

2шт.

9

195-25

WASHER,3/8"

2шт.

10

92-6

LOCK WASHER,3/8"

2шт.

11

25-106

NUT,3/8"-16, G5

2шт.

12

218-457

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

ADAPTER - male, straight

4шт.

13

D53480

VALVE

ASSEMBLY - relief (Parts list Figure 166)

2шт.

14

218-555

TEE,7/8"-14, 37 Degree x 1/2"-14, NPTF Br

Adjustable, male female

1шт.

15

36272

HOSE

Relief valve to relief valve (16" long)

1шт.

16

217-1019

ELBOW,1/2" - 14 Female x 1/2" - 14 Male

Street

1шт.

17

D53369

TUBE

Tilt, top

1шт.

18

D53367

TUBE

Tilt, bottom

1шт.

19

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

20

92-6

LOCK WASHER,3/8"

1шт.

21

A13622

PLATE, LOCKING

CLAMP - tube

1шт.

22

D33552

BUSHING

SPACER - tube clamp

1шт.

23

D25177

HOSE ASSY.

Hydraulic, to lift arm (26" long)

2шт.

23a

D57062

RESTRICTOR

Disc, Start Serial: 9821617

1шт.

24

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

25

NLS

NO LONGER SERVICED

Tube

2шт.

26

92-6

LOCK WASHER,3/8"

2шт.

27

25-106

NUT,3/8"-16, G5

2шт.

28

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

29

92-6

LOCK WASHER,3/8"

2шт.

30

A13622

PLATE, LOCKING

CLAMP - tube

2шт.

31

REF

INSTRUCTION

CYLINDER - bucket (See Figure 228 for cylinders)

2шт.

32

D53375

TUBE

Inner, lift arm, Serial Range: -9816912

1шт.

33

D53447

TUBE

Outer, lift arm, Serial Range: -9816912

1шт.

34

D54403

HOSE ASSY.

Bucket cylinders (22" long), Serial Range: -9816912

4шт.

35

D54298

TUBE - crossover, rear, Serial Range: -9816912

1шт.

36

D54299

PIPE

TUBE - crossover, front, Serial Range: -9816912

1шт.

37

D54219

SPARE PART Tube, Serial Range: -9816912

1шт.

38

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

, Serial Range: -9816912

2шт.

39

92-6

LOCK WASHER,3/8"

, Serial Range: -9816912

2шт.

40

195-25

WASHER,3/8"

, Serial Range: -9816912

2шт.

41

D53375

TUBE

Inner, lift arm, Serial Range: 9816912-9818557

1шт.

42

D53447

TUBE

Outer, lift arm, Serial Range: 9816912-9818557

1шт.

43

D55089

HOSE ASSY.

Bucket cylinder, rod end (33" long), Serial Range: 9816912-9818557

2шт.

44

D55088

HOSE ASSY.

Bucket cylinder, closed end (13-1/2" long), Serial Range: 9816912-9818557

2шт.

45

217-1016

ELBOW,3/8" - 18 Female x 3/8" - 18 Male

Street, Serial Range: 9816912-9818557

2шт.

46

D54297

SPARE PART Crossover, rear, Serial Range: 9816912-9818557

1шт.

47

D55091

SPARE PART Crossover, front, Serial Range: 9816912-9818557

1шт.

48

D54219

SPARE PART Tube, Serial Range: 9816912-9818557

1шт.

49

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

, Serial Range: 9816912-9818557

2шт.

50

92-6

LOCK WASHER,3/8"

, Serial Range: 9816912-9818557

2шт.

51

195-25

WASHER,3/8"

, Serial Range: 9816912-9818557

2шт.

52

D57387

SPARE PART Loader arm, outer, Start Serial: 9818557

1шт.

53

D57389

SPARE PART Loader arm, inner, Start Serial: 9818557

1шт.

54

218-595

TEE,7/8"-14, 37 Degree

Male, Start Serial: 9818557

2шт.

55

D57402

SPARE PART Crossover, lower, Start Serial: 9818557

1шт.

56

D57400

SPARE PART Crossover, upper, Start Serial: 9818557

1шт.

57

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

, Start Serial: 9818557

2шт.

58

92-6

LOCK WASHER,3/8"

, Start Serial: 9818557

2шт.

59

A13622

PLATE, LOCKING

CLAMP - tube, Start Serial: 9818557

2шт.

60

D57313

HOSE ASSY.

At closed end of cylinder (29" long), Start Serial: 9818557

2шт.

61

D54403

HOSE ASSY.

At rod end of cylinder (22" long), Start Serial: 9818557

2шт.

62

217-1016

ELBOW,3/8" - 18 Female x 3/8" - 18 Male

Street, Start Serial: 9818557

2шт.

Выбрано товаров: 63
