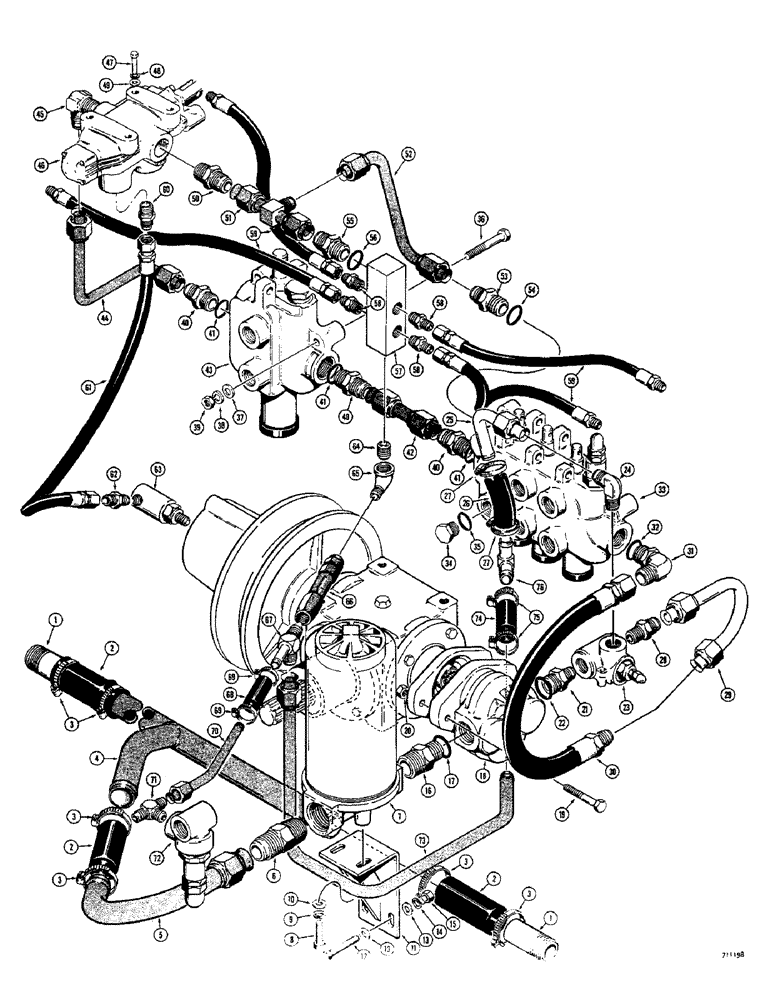

Запчасти Case 1700-SERIES (148) - BASIC TRACTOR HYDRAULICS, USED BEFORE TRACTOR SERIAL NO. 9816912 (35) - HYDRAULIC SYSTEMS

1

D33363

FITTING

STEM - hose

2шт.

2

R13911

HOSE,31.80 mm ID x 101.60 mm ID, SAE 100R3

- low pressure 31.80 mm ID x 101.60 mm ID, SAE 100R3

3шт.

3

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

6шт.

4

D53437

TUBE

- tee, hydraulic suction

1шт.

5

D53438

TUBE

- suction

1шт.

6

218-449

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-1/4" - 11-1/2 Male NPTF

ADAPTER - straight, male

1шт.

7

T40141

FILTER

ASSEMBLY - oil, hydraulic (Parts list Figure 162)

1шт.

8

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

9

92-5

LOCK WASHER,5/16"

2шт.

10

195-21

WASHER,5/16"

- flat () 5/16"

2шт.

11

T41067

BRACKET

- mounting, oil filter

1шт.

12

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

13

195-2034

WASHER,7/16" x 1 1/4" x .134"

- flat (3/8")

4шт.

14

92-6

LOCK WASHER,3/8"

2шт.

15

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

16

218-5016

ADAPTER,1-5/8" - 12 Male ORB x 1-1/4" Male NPTF

- straight, male, Including: Ref. 17

1шт.

17

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

18

D53434

PUMP

- hydraulic oil (Parts list Figure 164)

1шт.

18

87644730R

REMAN-HYD PUMP

1700-SERIES CASE UNI-LOADER SKID STEER LOADER, USED BEFORE TRACTOR SERIAL NO. 9816912, Reman for New PN D53434

1шт.

18

87644730C

CORE-HYDRAULIC PUMP

Return Number

1шт.

18

RR43429

REMAN-HYD PUMP

Remanufactured HYDRAULIC PUMP - N.A. Only

1шт.

18

RC43429

CORE-HYDRAULIC PUMP

Return No, HYDRAULIC PUMP - N.A. Only

1шт.

19

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

HHCS - 1/2" - 13 NC x 2-1/2"

2шт.

20

131-354

LOCK NUT,1/2"-13, GA

NUT - lock (1/2" - 13 NC)

2шт.

21

218-5017

ADAPTER

- straight, male, Including: Ref. 22

1шт.

22

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

23

D55217

LOCK VALVE

VALVE - high pressure relief, external (Parts list Figure 168)

1шт.

24

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- male, 90 degrees

1шт.

25

D55225

TUBE

- relief, Serial Range: valve-tank

1шт.

26

R14170

HOSE

- low pressure

1шт.

27

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

2шт.

28

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

ADAPTER - straight, male

1шт.

29

D53474

TUBE

- hydraulic, Serial Range: pump-valve

1шт.

30

R22173

HOSE

- hydraulic (13-1/2" long)

1шт.

31

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

adjustable, Including: Ref. 32 90º, 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

32

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

33

D53433

VALVE

ASSEMBLY - tilt and auxiliary hydraulics (Parts list Figure 172)

1шт.

34

86512512

PLUG,7/8" - 14 ORB

Including Ref. 35 Hex Hd, 7/8"-14 ORB

4шт.

35

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

36

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

HHCS - 3/8" - 16 NC x 2-3/4"

4шт.

37

195-25

WASHER,3/8"

- flat () 3/8"

4шт.

38

92-6

LOCK WASHER,3/8"

4шт.

39

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

40

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, male, Incl. Ref. 41

3шт.

41

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

42

D53478

TUBE

- hydraulic

1шт.

43

T40137

VALVE

ASSEMBLY - lift (Parts list Figure 170)

1шт.

44

T40278

HYD TUBE

TUBE - lift valve to control valve

1шт.

45

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- male, 90 degrees

1шт.

46

D53435

VALVE

ASSEMBLY - variable speed (Parts list Figure 166)

1шт.

47

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

48

92-6

LOCK WASHER,3/8"

4шт.

49

195-25

WASHER,3/8"

- plain () 3/8"

4шт.

50

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

ADAPTER - male, straight

1шт.

51

D53440

TUBE

- variable, Serial Range: speed-manifold

1шт.

52

D53451

TUBE

- return, to equipment valve

1шт.

53

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER - male, straight, Including: Ref. 54

1шт.

54

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

55

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - male, straight, Incl. Ref. 56

1шт.

56

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

57

T40134

MANIFOLD - hydraulic

1шт.

58

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

ADAPTER - male, straight

4шт.

59

T40300

HYDRAULIC HOSE,0.25" ID x 15.75", SAE 100R3

- Manifold to clutch shaft 0.25" ID x 15.75", SAE 100R3

4шт.

60

218-454

HYD CONNECTOR,9/16" - 18 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - male, straight

1шт.

61

D53436

HOSE,1/4 ID x 14.20", SAE 100R3

to Coupling 1/4 ID x 14.20", SAE 100R3

1шт.

62

218-453

HYD CONNECTOR,9/16" - 18 Male JIC x 1/8" - 27 Male NPTF

CONNECTOR, HYD., , Adapter, Male, straight 9/16"-18, 37º x 1/8"-27, NPTF

1шт.

63

T42355

COUPLING, BREAK AWAY

COUPLING ASSEMBLY - rotary (Parts list Figure 170)

1шт.

64

221-211

PIPE,Nipple, 3/4" NPT x 1 3/8"

NIPPLE - pipe, close (3/4" NPT)

1шт.

65

217-1020

90 ELBOW,3/4" - 14 Female x 3/4" - 14 Male

Street 90º, 3/4"-14 Female x 3/4"-14 Male

1шт.

66

T33711

VALVE

CHECK VALVE - return line

1шт.

67

D53961

TEE

- special

1шт.

68

D35139

HOSE

- low pressure (5/8" I.D. x 3" long)

1шт.

69

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

2шт.

70

D53554

TUBE

- return, from relief valve

1шт.

71

218-555

TEE,7/8"-14, 37 Degree x 1/2"-14, NPTF Br

- adjustable, male female

1шт.

72

D53480

VALVE

ASSEMBLY - relief (Parts list Figure 166) For related parts see page 156

1шт.

73

D53550

TUBE

- return, hydraulic oil

1шт.

74

D38435

HOSE,1" ID x 1 1/2" OD 3.5" L

- low pressure (1" I.D. x 3-1/2" long)

1шт.

75

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

76

D55221

TEE - special

1шт.
