Запчасти Case 1700-SERIES (120) - FRONT AXLE BRAKES (33) - BRAKES & CONTROLS

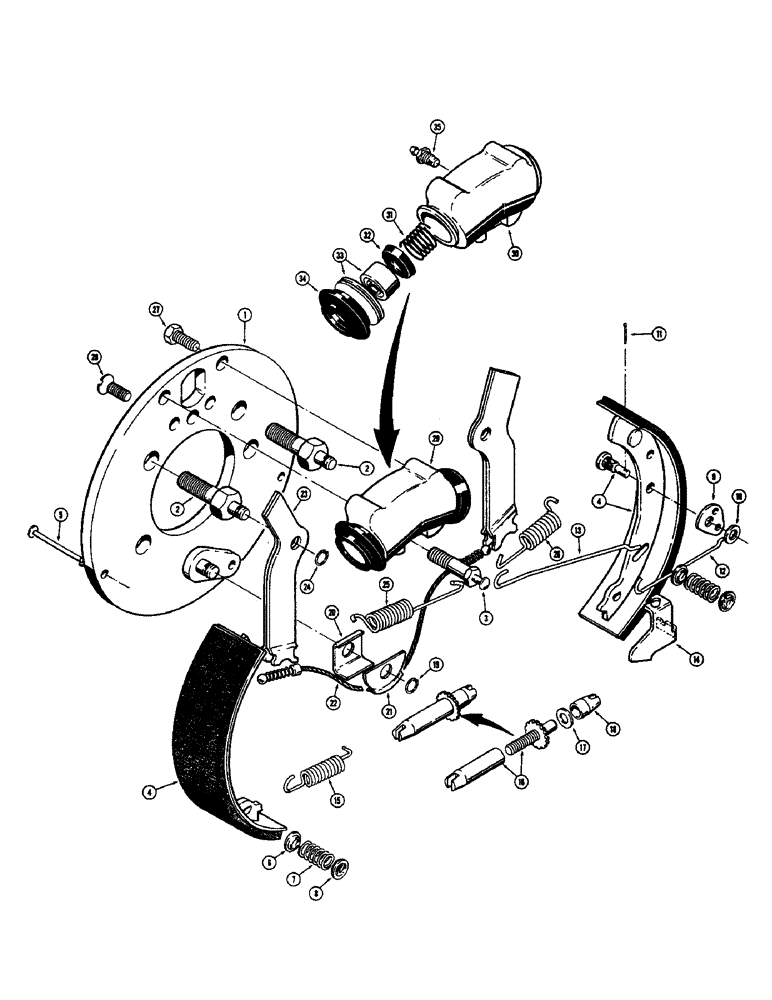

Схема запчастей Case 1700-SERIES - (120) - FRONT AXLE BRAKES (33) - BRAKES & CONTROLS

Артикул

Название

Примечание

Количество

D53783

BRAKE LINE

BRAKE ASSEMBLY - complete (L.H.), Including: Ref. 1 - 35

1шт.

D53782

BRAKE LINE

BRAKE ASSEMBLY - complete (R.H.), Including: Ref. 1 - 35

1шт.

1

D54162

PLATE ASSEMBLY - support (D53782 brake)

1шт.

1

D54163

PLATE ASSEMBLY - support (D53783 brake)

1шт.

2

D53709

BOLT (SPREADER)

BOLT - special

2шт.

3

D53899

BOLT

BOLT - special

2шт.

4

D53703

KIT

- shoe and lining

1шт.

5

D53718

PIN

- holddown, shoe

2шт.

6

D53896

WASHER

CUP - spring, bottom

2шт.

7

D53908

VALVE SPRING

SPRING - holddown

2шт.

8

T29876

COVER ASSY

CUP - spring, top

2шт.

9

D53907

LEVER - toggle

1шт.

10

D53906

WASHER - special

1шт.

11

132-376

PIN - cotter, 3/63" x 1/2"

1шт.

12

D53905

LINK - lower

1шт.

13

D53904

DRAG LINK

LINK - upper, maroon (D53782 brake only)

1шт.

13

D53903

DRAG LINK

LINK - upper, gray (D53783 brake only)

1шт.

14

D53713

LEVER

- automatic adjustment (D53782 brake only)

1шт.

14

D53714

LEVER

- automatic adjustment (D53783 brake only)

1шт.

15

D53712

VALVE SPRING

SPRING - automatic adjustment

1шт.

16

D53705

SCREW

ASSEMBLY - adjusting (D53782 brake only)

1шт.

16

D53706

NO LONGER SERVICED,Hex, 5/8" - 18 x 3"

SCREW ASSEMBLY - adjusting (D53783 brake only)

1шт.

17

D53900

WASHER

- special

1шт.

18

D53715

SOCKET

- adjusting screw

1шт.

19

D53902

RING, SNAP,#55, Ext

1шт.

20

D53898

RETAINER - sheave

1шт.

21

D53897

SHEAVE

- cable

1шт.

22

D53708

CABLE PULLING GRIP

CABLE ASSEMBLY - parking brake

1шт.

23

D53707

LEVER

- parking brake

2шт.

24

A39489

SNAP RING,#43, Ext

Ring, Snap, #43, Ext

2шт.

25

D53716

VALVE SPRING

SPRING - return, #35 (Maroon)

1шт.

26

D53717

VALVE SPRING

SPRING - return, #35 (Gray)

1шт.

27

D53710

BOLT - special

2шт.

28

D53711

SCREW

- special

2шт.

29

D53704

CYLINDER BLOCK

CYLINDER ASSEMBLY - wheel, Including: Ref. 30 - 35

1шт.

30

D53704

CYLINDER BLOCK

BODY - cylinder (Replaces D53909)

1шт.

31

D53913

VALVE SPRING

SPRING - piston

2шт.

32

D53911

CUP ASSY.

CUP - spring

2шт.

33

D53910

PISTON ASSY.

PISTON ASSEMBLY - cylinder

2шт.

34

D53912

PLATE ASSY.

BOOT - piston

2шт.

35

D53914

SCREW

- bleeder

1шт.

Выбрано товаров: 41
