Запчасти Case 1700-SERIES (116) - FRONT AND REAR AXLE ASSEMBLY WITHOUT BRAKE (23) - FOUR WHEEL DRIVE SYSTEM

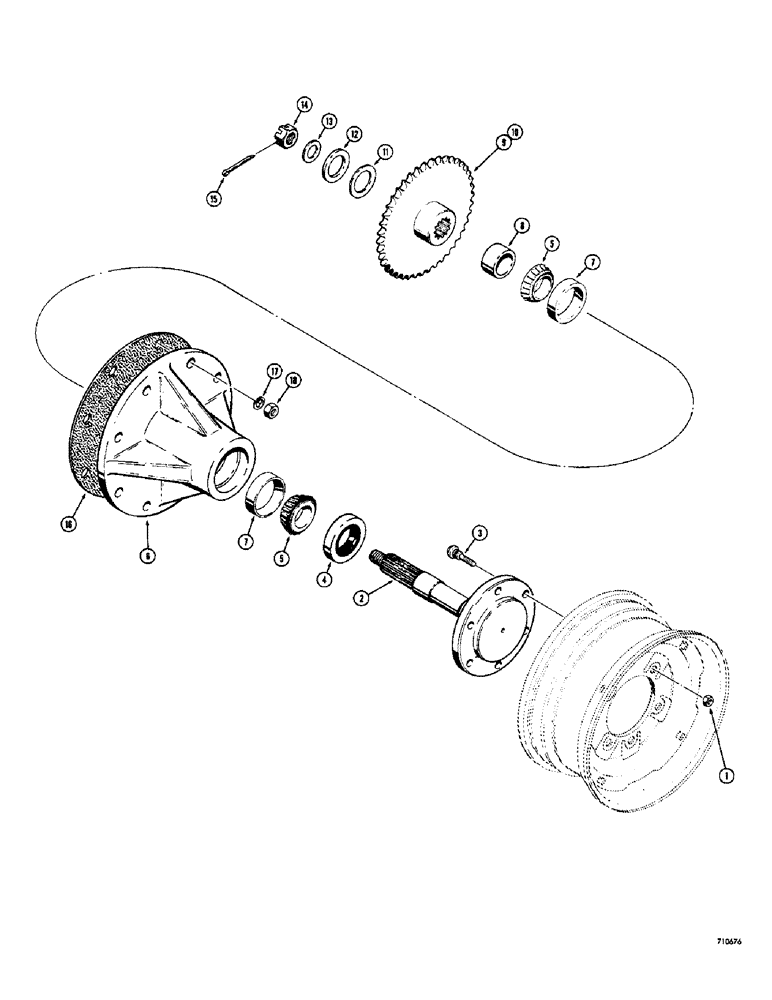

Схема запчастей Case 1700-SERIES - (116) - FRONT AND REAR AXLE ASSEMBLY WITHOUT BRAKE (23) - FOUR WHEEL DRIVE SYSTEM

Артикул

Название

Примечание

Количество

1

F23214

WHEEL NUT

- wheel, special

24шт.

D53761

SHAFT ASSY.

AXLE ASSEMBLY - with bolts, Including: Ref. 2 - 3

4шт.

2

NSS

NOT SOLD SEPARAT

AXLE - wheel

1шт.

3

T40045

WHEEL BOLT

BOLT - wheel, special

6шт.

4

D53767

OIL SEAL,57.15mm ID x 85.75mm OD x 11mm Thk

- oil

4шт.

5

D53766

TAPERED BEARING,1.7812" ID x 0.78"

CONE - bearing

8шт.

D53763

HUB

ASSEMBLY - axle, Including: Ref. 6 - 7

4шт.

6

NSS

NOT SOLD SEPARAT

HUB - axle

1шт.

7

D53762

BEARING CUP,2.892" OD x 0.62"

CUP - bearing

2шт.

8

D53784

BUSHING

SPACER - axle

4шт.

9

D53024

DRIVE SPROCKET

SPROCKET - front axle, #80 chain

2шт.

10

D53025

DRIVE SPROCKET

SPROCKET - rear axle, #80 chain

2шт.

11

T40257

WASHER

- special, 14 ga.

1шт.

12

T40258

WASHER

- special, 10 ga.

1шт.

13

D53273

WASHER,23.02mm ID x 57.15mm OD x 1.41mm Thk

- special

4шт.

14

425-1914

SLOTTED NUT,7/8"-14, G5, Thk

NUT, SLOTTED, , Castle 7/8"-14, G5, Thk

4шт.

15

132-52

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

4шт.

16

T42395

GASKET

- hub

4шт.

17

92-9

BEARING WASHER,9/16"

32шт.

18

25-119

NUT,9/16"-18, G5

- hex. (9/16" - 18 NF)

32шт.

B93176

BEARING,45.24mm ID x 73.46mm OD

KIT wheel, consists of: (2) Ref. 7 cup, Ref. 5 cone and Ref. 4 seal, one kit per wheel

1шт.
