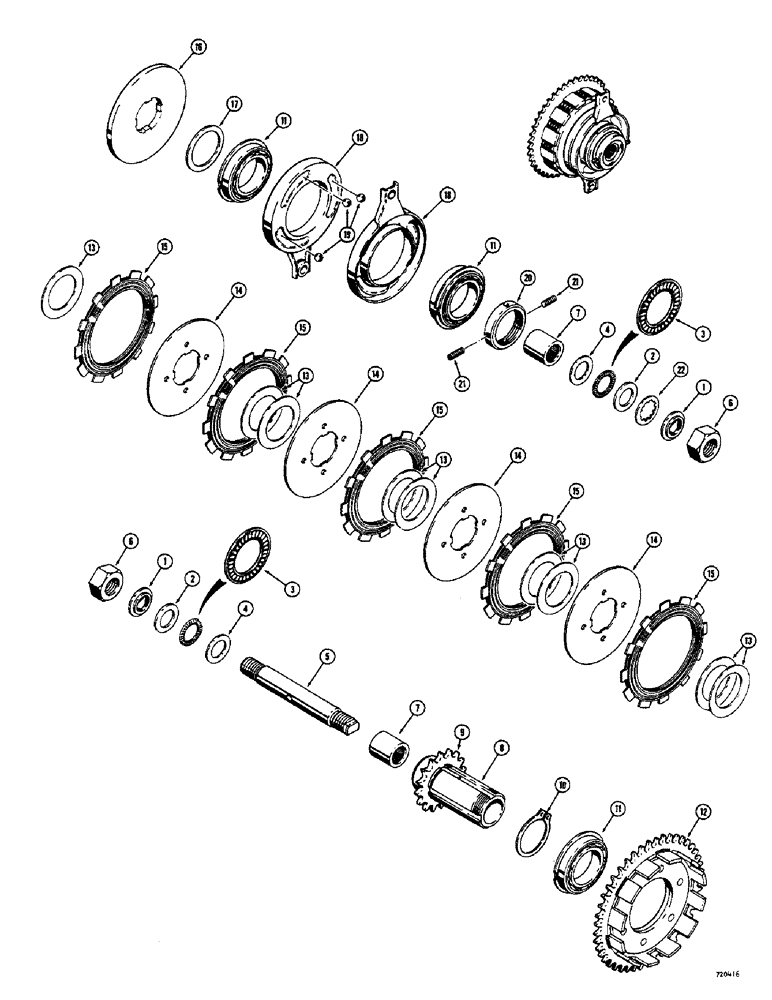

Запчасти Case 1700-SERIES (127A) - 5 DISC CLUTCH AND SHAFT ASSEMBLY, SERVICE REPLACEMENT FORMSPRAG CLUTCH (18) - CLUTCH

1

T40065

WASHER

- seal (7/8")

8шт.

2

G46081

BEARING WASHER

RACE - thrust washer

8шт.

3

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

BEARING, THRUST

8шт.

4

T40066

WASHER,25.58mm ID x 39.17mm OD x 1.56mm Thk

RACE - thrust

8шт.

5

T40024

SHAFT

- clutch

4шт.

For identification, Ref. 5 is stamped with letter "F" and Ref. 18 cam is not painted.

1шт.

6

25-1114

NUT,7/8"-14, G5

- hex. (7/8" - 14 NF)

8шт.

D55802

CLUTCH

ASSEMBLY, Including: Ref. 7 - 21

4шт.

7

T40012

NEEDLE BEARING

BEARING - needle

2шт.

D55928

HUB

KIT - hub and sprocket, Including: Ref. 8 - 10

1шт.

8

D55819

HUB CAP

HUB - clutch

1шт.

9

D55820

SPROCKET ASSY.

SPROCKET - clutch

1шт.

10

49478

TABLE

Ring, Snap, #196, Ext

1шт.

11

40027

BALL BEARING,49.99mm ID x 80mm OD x 16mm W

- cam

3шт.

12

D53324

CUP ASSY.

CAP - drive

1шт.

13

T42270

KIT

SPRING SET - release (Set of 9)

1шт.

14

D54830

DISC

separator, has slots not holes

4шт.

15

T40018

DISC

- friction

5шт.

16

T40019

PLATE ASSY.

PLATE - pressure

1шт.

17

T40020

BUSHING

SPACER - pressure plate

1шт.

18

D54633

CAM

2шт.

For identification, Ref. 5 is stamped with letter "F" and Ref. 18 cam is not painted.

1шт.

19

211-12

BALL,7/16 Dia

- cam

3шт.

20

D55171

COLLAR

NUT - adjusting

1шт.

21

83-412

SET SCREW,Socket, 1/4" - 20 x 3/4", AST

- 1/4" - 20 NC x 3/4" (Adjusting nut)

2шт.

22

T40067

LOCK

RING - clutch retainer

4шт.
