Запчасти Case 1700-SERIES (113A) - JACKSHAFT & BEARINGS, MODELS W/O BRAKES, S/N 9818936 & AFTER, MODELS W/ BRAKES, S/N 9818849 & AFTER (14) - MAIN GEARBOX & DRIVE

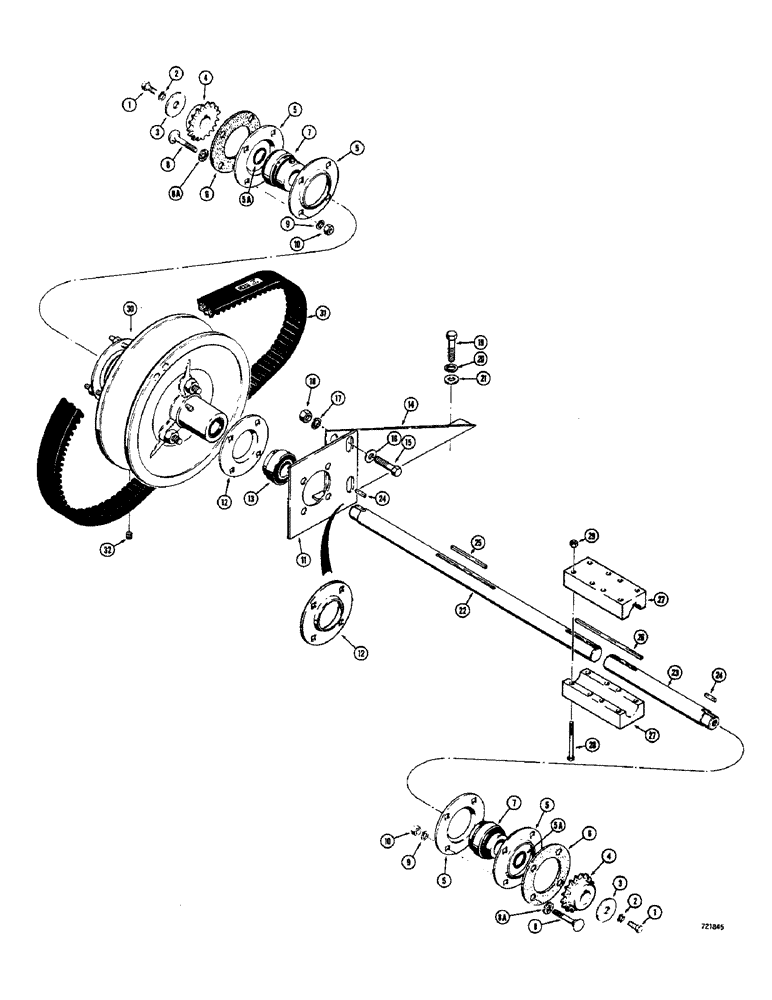

Схема запчастей Case 1700-SERIES - (113A) - JACKSHAFT & BEARINGS, MODELS W/O BRAKES, S/N 9818936 & AFTER, MODELS W/ BRAKES, S/N 9818849 & AFTER (14) - MAIN GEARBOX & DRIVE

Артикул

Название

Примечание

Количество

1

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

2

92-8

LOCK WASHER,1/2"

2шт.

3

T40255

WASHER

Special (1/2" x 1-3/4")

2шт.

4

T40069

DRIVE SPROCKET

17 tooth

2шт.

5

D57237

FLANGE

Bearing

4шт.

5a

A59066

O-RING,1.239" ID x 1.379" OD

SEAL

2шт.

6

D57246

GASKET

Flange

2шт.

7

F86298

BEARING ASSY

Shaft

2шт.

8

111-316

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5

12шт.

8a

D58844

CYLINDER HEAD GASKET

Bolt head

8шт.

9

92-6

LOCK WASHER,3/8"

12шт.

10

25-106

NUT,3/8"-16, G5

Hex

12шт.

11

D57245

PLATE ASSY.

Support, bearing

1шт.

12

D57342

FLANGED BEARING,4.44" OD x 0.28"

FLANGE

2шт.

13

D57393

BEARING

Shaft

1шт.

14

D57244

BRACKET

Mount, shaft bearing

1шт.

15

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

16

195-33

WASHER,1/2"

2шт.

17

92-8

LOCK WASHER,1/2"

2шт.

18

25-106

NUT,3/8"-16, G5

NUT - hex. (1/2"-13 NC)

2шт.

19

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

20

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

21

195-33

WASHER,1/2"

2шт.

22

D54819

JACKSHAFT

Long

1шт.

23

T40078

JACKSHAFT

Short

1шт.

24

T33565

BUCKET TOOTH KEY

Square, 1/4" x 1"

2шт.

25

B18322

KEY

Square, 1/4" x 3-1/2"

1шт.

26

T40079

KEY

Square, 1/4" x 7"

1шт.

27

T40080

CLAMP

ASSEMBLY - jackshaft

1шт.

28

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

8шт.

29

131-179

LOCK NUT,3/8"-16, GA

Hex

8шт.

30

REF

INSTRUCTION

VARIABLE SPEED DRIVE ASSEMBLY - see page 110

1шт.

31

D58998

V-BELT,1.81" W x 51.70" L

Variable Drive

1шт.

32

178-857

SET SCREW,Hex Soc, 1/2"-13 x 5/8"

Cup point

1шт.

Выбрано товаров: 34
