Запчасти Case 1700-SERIES (108) - 9 INCH VARIABLE SPEED DRIVE ASSEMBLY, BEFORE TRACTOR SERIAL NO. 9819054 (14) - MAIN GEARBOX & DRIVE

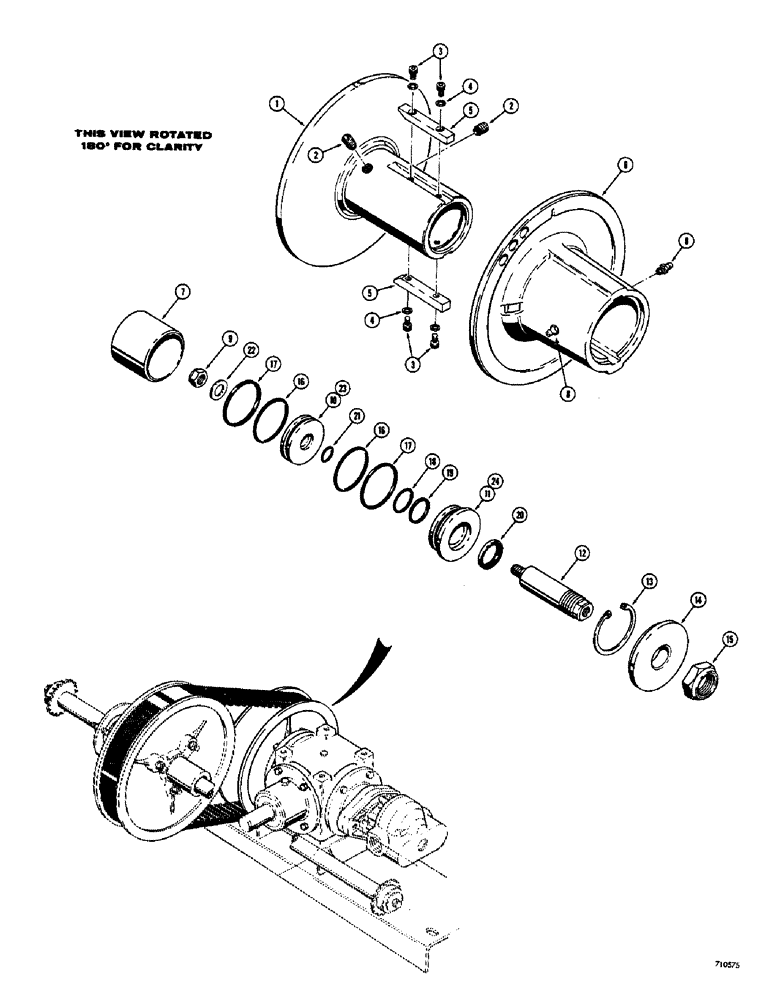

Схема запчастей Case 1700-SERIES - (108) - 9 INCH VARIABLE SPEED DRIVE ASSEMBLY, BEFORE TRACTOR SERIAL NO. 9819054 (14) - MAIN GEARBOX & DRIVE

Артикул

Название

Примечание

Количество

D53038

SHEAVE

VARIABLE SPEED DRIVE ASSEMBLY - complete, Includes: Ref. 1 - 24

1шт.

T42641

SHEAVE

KIT - variable speed drive, Includes: Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

SHEAVE - male, 9" (1-3/8" bore)

1шт.

2

178-855

SET SCREW,Hex Soc, 3/8"-16 x 1"

SETSCREW - 3/8" - 16 NC x 1/2", self-locking

2шт.

3

T40088

SCREW

SETSCREW - #10 - 24 NC x 1/2", special

4шт.

4

193-111

LOCK WASHER,Ext Tooth, #10

WASHER - lock, #10 (Internal Shakeproof)

4шт.

5

T40087

KEY

- sheave

2шт.

6

NSS

NOT SOLD SEPARAT

SHEAVE - female, 9"

1шт.

7

T41589

TUBE SPACER,2.002" ID x 2.308" OD x 2.011" L

TUBE - cylinder

1шт.

8

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease, straight (1/4" - 28 NF)

2шт.

9

131-578

NUT,1/2"-20

1/2 - 20 NF; Thin Height

1шт.

10

D53322

PISTON

- variable speed drive

1шт.

11

D53323

GUIDE

- ram

1шт.

12

T40092

CYLINDER

RAM - variable speed drive

1шт.

13

T40094

RING

SNAP RING - variable speed drive

1шт.

14

T40093

WASHER

- special

1шт.

15

131-39

NUT,1"-14

NUT - hex., lock (1" - 14 NF)

1шт.

D53325

PACKAGE, REPAIR

KIT - service, variable speed drive, Includes: Ref. 16 - 21

1шт.

T42640

SEAL KIT

KIT - seal, variable speed drive, Includes: Ref. 16 - 21

1шт.

16

NSS

NOT SOLD SEPARAT

SEAL - "O" ring, 2" O.D.

2шт.

17

NSS

NOT SOLD SEPARAT

RING - backup, 2" O.D.

2шт.

18

NSS

NOT SOLD SEPARAT

SEAL - "O" ring, 1-1/4" O.D.

1шт.

19

NSS

NOT SOLD SEPARAT

RING - backup, 1-1/4" O.D.

1шт.

20

NSS

NOT SOLD SEPARAT

WIPER - plug

1шт.

21

NSS

NOT SOLD SEPARAT

SEAL - "O" ring, 13/16" O.D.

1шт.

22

195-2065

WASHER,33/64" x 7/8" x .049"

- piston

1шт.

23

D53322

PISTON

1шт.

24

D53323

GUIDE

- ram

1шт.

Выбрано товаров: 28
