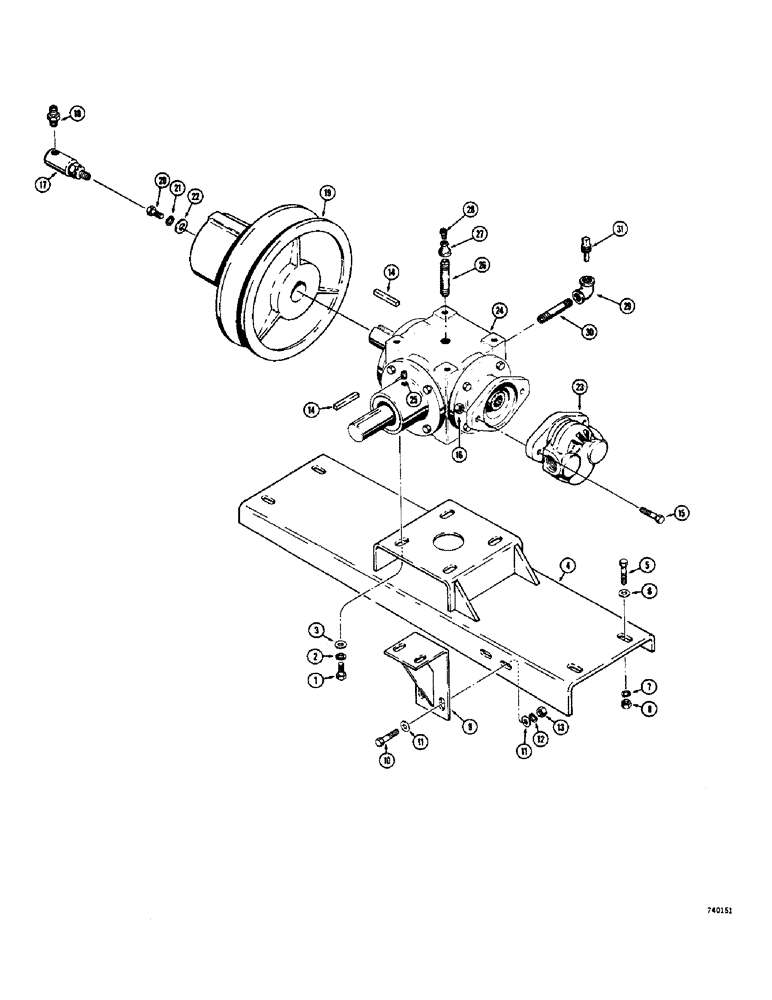

Запчасти Case 1700-SERIES (106) - GEAR BOX MOUNTING PARTS (14) - MAIN GEARBOX & DRIVE

1

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

2

92-8

LOCK WASHER,1/2"

4шт.

3

95-8

WASHER,1/2"

4шт.

4

T41064

MEMBER

CROSS - gear box (When stock is exhausted use, D57501 crossmember)

1шт.

4

D57501

MEMBER

CROSS - gear box

1шт.

5

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

6

95-8

WASHER,1/2"

8шт.

7

92-8

LOCK WASHER,1/2"

4шт.

8

25-108

NUT,1/2"-13, G5

Hex

4шт.

9

T41067

BRACKET

BRACE - filter

1шт.

10

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

11

195-2034

WASHER,7/16" x 1 1/4" x .134"

(1-1/4" x 7/16" x 10 ga.)

4шт.

12

92-6

LOCK WASHER,3/8"

2шт.

13

25-106

NUT,3/8"-16, G5

2шт.

14

B18323

KEY

Square, 5/16" x 2"

2шт.

15

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

2шт.

16

131-354

LOCK NUT,1/2"-13, GA

2шт.

17

T42355

COUPLING, BREAK AWAY

ASSEMBLY - rotary (Parts list Figure 170)

1шт.

18

218-453

HYD CONNECTOR,9/16" - 18 Male JIC x 1/8" - 27 Male NPTF

Adapter, Rotary coupling

1шт.

19

D53038

SHEAVE

9 inch, used before tractor S/N 9819054 or models without 3/8" tapped hole in gear box shaft (Parts list Figure 108)

1шт.

19

D57638

PULLEY

SHEAVE - 9", used tractor S/N 9819054 thru 9824922 or models with 3/8" hole in gear box shaft (Parts list Figure 109A)

1шт.

19

D65422

NO LONGER SERVICED

SHEAVE - 9", used tractor S/N 9824922 thru 9826921 on 1737 and 1740; Used tractor S/N 9824922 thru 9826560 on 1737S (Parts list Figure 109A)

1шт.

19

D66564

PULLEY

SHEAVE - 9", used tractor S/N 9826922 and after on 1737 and on 1740; Used tractor S/N 9826561 and after on 1737S (Parts list Figure 109C)

1шт.

20

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

(D57638 sheave)

1шт.

21

92-6

LOCK WASHER,3/8"

1шт.

22

D57636

DISC

WASHER - D53038, D57638 and D65422 sheaves

1шт.

22

D66922

WASHER

D66922 sheave

1шт.

23

REF

INSTRUCTION

PUMP - hydraulic (Parts list Figure 164)

1шт.

24

REF

INSTRUCTION

GEAR BOX ASSEMBLY - see Figures 102 or 104 for correct gear box

1шт.

25

221-11

PLUG,Sq Hd, 1/8"-27

Pipe, Start Serial: 9822387

1шт.

Part of Dipstick Kit P/N D17711

1шт.

26

221-192

PIPE,Nipple, 1/2" NPT x 3"

, Start Serial: 9822387

1шт.

Part of Dipstick Kit P/N D17711

1шт.

27

221-347

COUPLING,Pipe, 1 /2" x 1/8" NPT

REDUCER - bushing, Start Serial: 9822387

1шт.

Part of Dipstick Kit P/N D17711

1шт.

28

R11152

FITTING

BREATHER - gear box, Start Serial: 9822387

1шт.

29

221-377

ELBOW,90 Degree, 1/2" NPT

(Pipe), Start Serial: 9822387

1шт.

Part of Dipstick Kit P/N D17711

1шт.

30

221-197

PIPE,Nipple, 1/2" NPT x 5 1/2"

1/2" x 5", Start Serial: 9822387

1шт.

Part of Dipstick Kit P/N D17711

1шт.

31

D63529

DIPSTICK

, Start Serial: 9822387

1шт.

Part of Dipstick Kit P/N D17711

1шт.

D17711

KIT

Dipstick, Includes: Ref. 25, 26, 27, 29, 30 and 31, and P/N 321-2745 decal and instructions, Start Serial: 9822387

1шт.
