Запчасти Case 1700-SERIES (103A) - VON RUDEN GEAR BOX, USED TRACTOR SERIAL NO. 9823868 AND AFTER (14) - MAIN GEARBOX & DRIVE

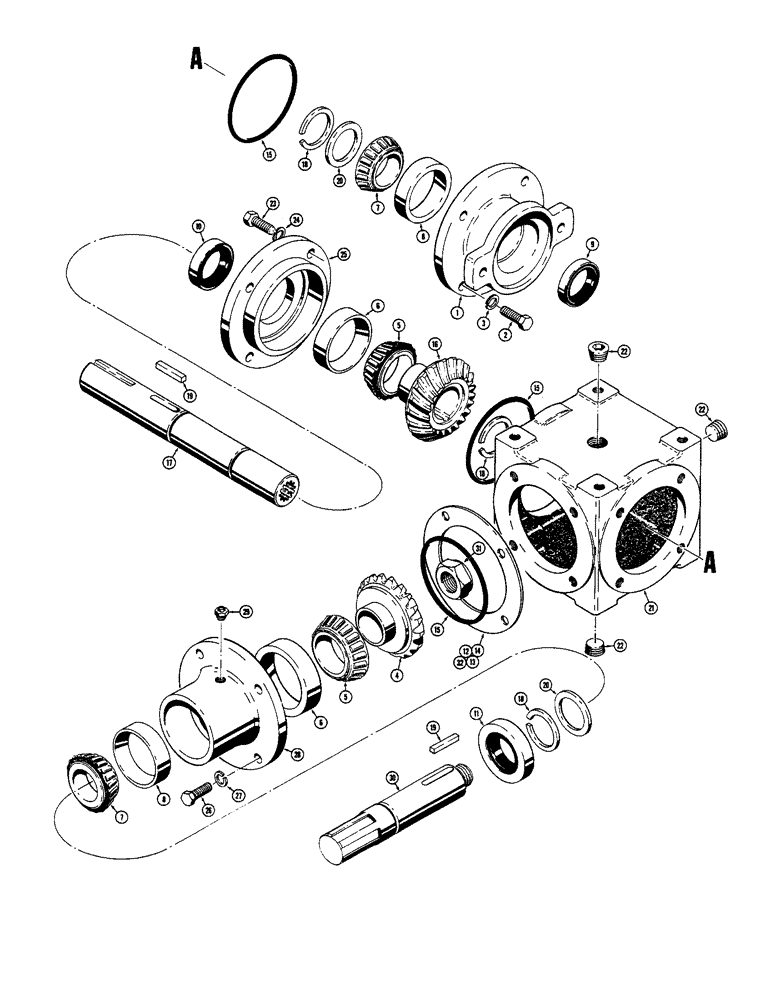

Схема запчастей Case 1700-SERIES - (103A) - VON RUDEN GEAR BOX, USED TRACTOR SERIAL NO. 9823868 AND AFTER (14) - MAIN GEARBOX & DRIVE

Артикул

Название

Примечание

Количество

1

D64061

GEAR

BOX - Von Ruben #52223, Includes: Ref. 1 - 31

1шт.

1

D63378

FLANGE

- mounting

1шт.

2

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

3

92-6

LOCK WASHER,3/8"

4шт.

D65108

GEAR

KIT - bearing, gear and seal, Includes: Ref. 4 - 15

1шт.

4

D53663

GEAR-SET

GEAR - bevel, pinion shaft

1шт.

5

A61447

ROLLER BEARING,2.1651" ID x 0.9045" Thk

CONE - bearing

2шт.

6

A61446

BEARING CUP

CUP - bearing

2шт.

7

A29976

ROLLER BEARING

CONE - bearing

2шт.

8

A29977

BEARING CUP

CUP - bearing

2шт.

9

D53668

OIL SEAL

- output shaft, pump end

1шт.

10

D53666

SEAL

- output shaft, sheave end

1шт.

11

D53675

SEAL

- pinion shaft

1шт.

12

D63380

SHIM,.001" Thk

1шт.

13

D63381

SHIM,.003" Thk

1шт.

14

D63382

SHIM,.005" Thk

1шт.

15

G46888

O-RING,3.737" ID x 3.943" OD

SEAL - "O" ring

3шт.

D65109

SHAFT

KIT - cross shaft and gear, Includes: Ref. 16 - 19

1шт.

16

D53679

GEAR

- bevel, output shaft

1шт.

17

D56907

SHAFT

- output

1шт.

18

D56051

SNAP RING,#137. Ext

Ring, Snap, #137, Ext, replaces FH740613

3шт.

19

D53677

KEY

- square

2шт.

20

D53673

WASHER

- special, backup

2шт.

21

D53662

CASE - gear box

1шт.

22

221-844

PLUG,Hex Soc, 1/2"-14

- pipe, hex. socket head

3шт.

23

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

24

92-6

LOCK WASHER,3/8"

4шт.

25

D63379

PLATE

- case, output

1шт.

26

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

27

92-6

LOCK WASHER,3/8"

4шт.

28

D63383

HOUSING

- pinion shaft

1шт.

29

R11152

FITTING

VENT - breather

1шт.

30

D53676

SHAFT

- pinion

1шт.

31

131-39

NUT,1"-14

NUT - hex., lock (1" - 14 UNS)

1шт.

32

D63806

SHIM,.010" Thk

(If required) .010" Thk

1шт.

32

D63807

SHIM,.020" Thk

(If required) .020" Thk

1шт.

Выбрано товаров: 36
