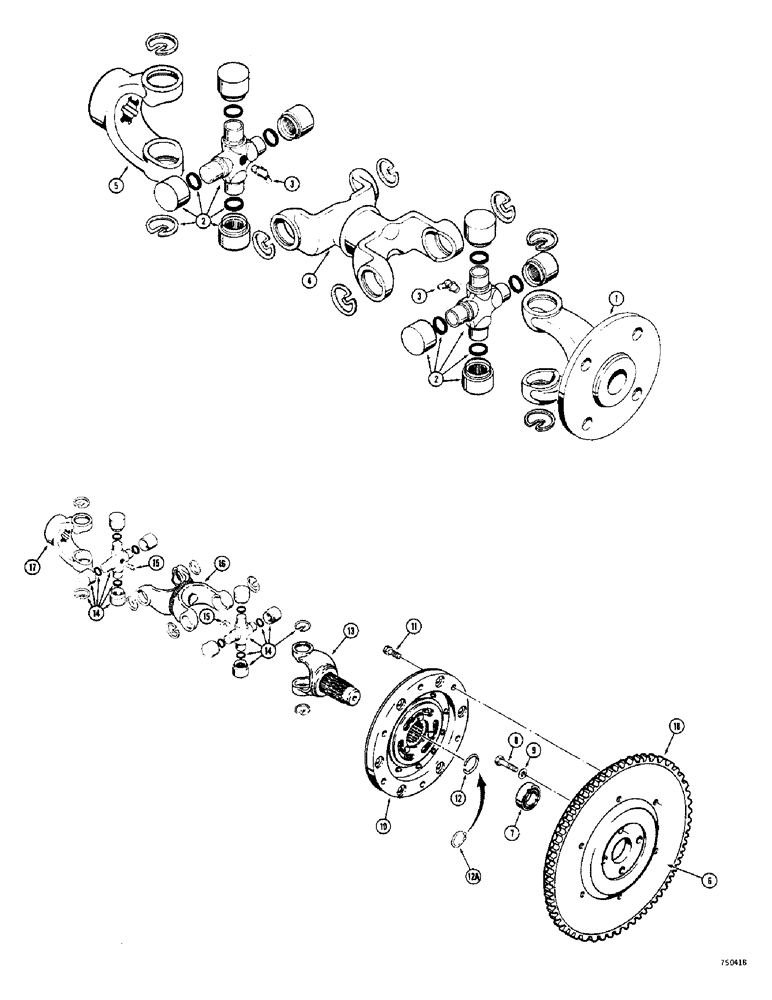

Запчасти Case 1700-SERIES (100) - UNIVERSAL DRIVE SHAFT (14) - MAIN GEARBOX & DRIVE

D53935

JOINT

DRIVE SHAFT ASSEMBLY - complete, model 1737 and 1737S, Includes: Ref. 1 - 5

1шт.

1

D54570

YOKE

UNIVERSAL JOINT YOKE Flywheel end, model 1737 and 1737S

1шт.

2

T40106

KIT

SPIDER AND BEARING ASSEMBLY - drive shaft, model 1737 and 1737S, Includes: Ref. 3

2шт.

3

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

67-1/2 degrees, model 1737 and 1737S

1шт.

4

D54569

YOKE

UNIVERSAL JOINT YOKE Shaft, center, model 1737 and 1737S

1шт.

5

D54296

FORK

YOKE - pump end, model 1737 and 1737S

1шт.

6

A39851

SPARE PART Complete, model 1740, Includes: Ref. 7

1шт.

7

T17390

BALL BEARING,1.1811" ID x 2.1654" OD x 0.5118"

Flywheel, model 1740

1шт.

8

121-300

LOCK BOLT,Lock Place, Hex, 7/16" - 20 x 1 1/8", Gr 8

7/16"-20 NF x 1-7/8", model 1740

4шт.

9

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

Special, model 1740

4шт.

10

D64523

DRIVE PLATE

ADAPTER ASSEMBLY - drive plate, model 1740

1шт.

11

165-134

HEX SOC SCREW,Prev Torque, 3/8" - 16 x 3/4"

Model 1740

6шт.

12

D54560

RING, SNAP

RING SNAP Retaining (If used), model 1740

1шт.

12a

A7409

SNAP RING,#137, Ext

If used, model 1740

1шт.

D54556

JOINT

DRIVE SHAFT ASSEMBLY - complete, model 1740, Includes: Ref. 13 - 17

1шт.

13

D54869

YOKE

UNIVERSAL JOINT YOKE Fly wheel end, model 1740

1шт.

14

T40106

KIT

SPIDER AND BEARING ASSEMBLY - driveshaft, model 1740, Includes: Ref. 15

2шт.

15

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

67-1/2 degrees, model 1740

1шт.

16

D54868

YOKE

UNIVERSAL JOINT YOKE Center, model 1740

1шт.

17

D54867

YOKE

UNIVERSAL JOINT YOKE Pump end, model 1740

1шт.

18

REF

INSTRUCTION

GEAR - ring (Parts list Figure 42), model 1740

1шт.
