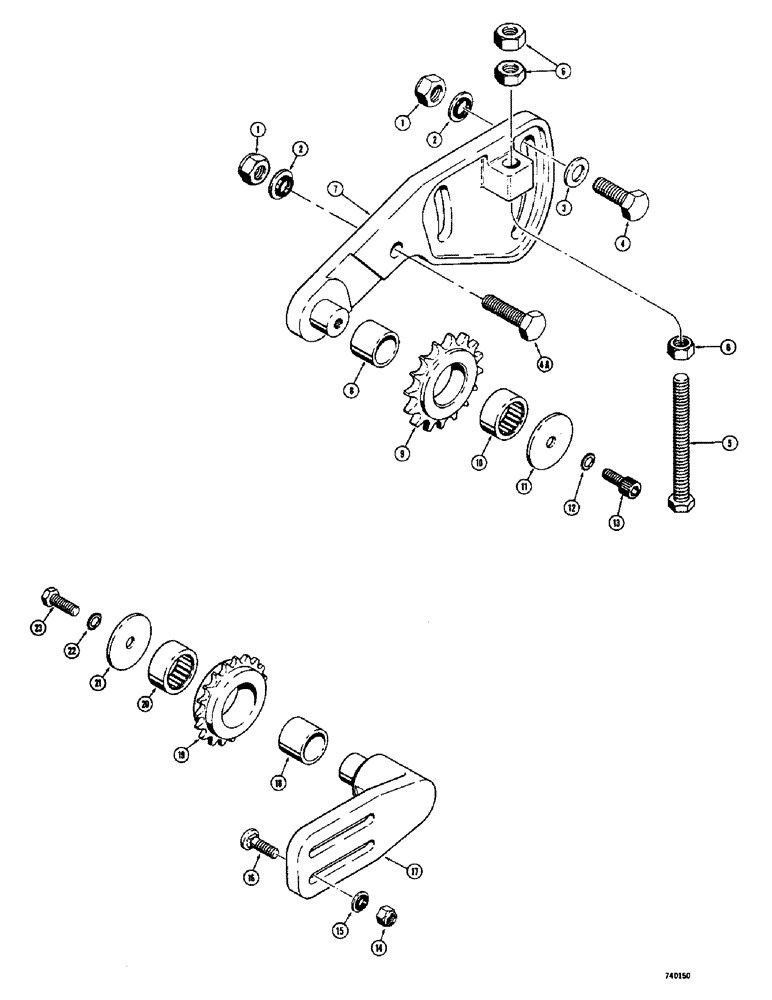

Запчасти Case 1700-SERIES (098) - CHAIN TIGHTENERS (14) - MAIN GEARBOX & DRIVE

1

131-496

NUT,9/16"-18, GB

- hex., lock (9/16" - 18 NF) Stainless, 1737S model

6шт.

1

131-675

LOCK NUT,9/16"-18, GB

NUT - hex., lock (9/16" - 18 NF) 1737 and 1740 models

6шт.

2

T42479

WASHER

- special, sealing

6шт.

3

D53272

WASHER

- special, heat treated

4шт.

4

14-924

BOLT,Hex, 9/16" - 18 x 1-1/2", Gr 5, Full Thd

HHCS - 9/16" - 18 NF x 1-1/2"

4шт.

4a

14-928

BOLT,Hex, 9/16" - 18 x 1-3/4", Gr 5, Full Thd

HHCS - 9/16" - 18 NF x 1-3/4"

2шт.

5

113-469

BOLT,Hex, 1/2" - 13 x 5", Gr 5, Full Thd

2шт.

6

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

6шт.

T41077

BRACKET

ASSEMBLY - tightener, R.H., no. 50 chain tightener bracket, Inlcudes: Ref. 7 - 8

1шт.

T41079

BRACKET

ASSEMBLY - tightener, L.H., no. 50 chain tightener bracket, Inlcudes: Ref. 7 - 8

1шт.

7

NSS

NOT SOLD SEPARAT

BRACKET - tightener, no. 50 chain tightener bracket

1шт.

8

T40032

BEARING

RACE - bearing, inner, no. 50 chain tightener bracket

1шт.

8a

195-2121

WASHER,1 5/16" x 2" x .065"

- flat, 1-5/16" (D54829 sprocket)

2шт.

T42468

SPROCKET ASSY.

SPROCKET ASSEMBLY - tightener, .687" thick sprocket (When stock of T42468 is exhausted, use D54829 sprocket assembly and 195-2121 washer for service), no. 50 chain tightener bracket, Inlcudes: Ref. 9 - 10

1шт.

9

NSS

NOT SOLD SEPARAT

SPROCKET - tightener, .687" thick, no. 50 chain tightener bracket

1шт.

10

T42467

BRONZE BUSHING,1.2555" ID x 1.504" OD x 0.625"

BEARING - sprocket, no. 50 chain tightener bracket

1шт.

D54829

SPROCKET ASSY.

SPROCKET ASSEMBLY - tightener, .630" thick, no. 50 chain tightener bracket, Inlcudes: Ref. 9 - 10

2шт.

9

NSS

NOT SOLD SEPARAT

SPROCKET - tightener, .630" thick, no. 50 chain tightener bracket

1шт.

10

T42467

BRONZE BUSHING,1.2555" ID x 1.504" OD x 0.625"

BEARING - bronze, no. 50 chain tightener bracket

1шт.

11

T40254

WASHER

- flat, 13/32" I.D. x 2" O.D. x 10 gauge

2шт.

12

193-10

LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 3/8"

2шт.

13

61-616

HEX SOC SCREW,3/8"-16 x 1"

HSCS - 3/8" - 16 NC x 1" (Grade 8)

2шт.

14

131-494

LOCK NUT

NUT - hex., lock (3/8" - 16 NC) Stainless, 1737S model

4шт.

14

131-6

LOCK NUT,3/8"-16, GC

NUT - hex., lock (3/8" - 16 NC) 1737 and 1740 models

4шт.

15

T42589

WASHER

- special, sealing

4шт.

16

111-320

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

4шт.

T41073

BRACKET

ASSEMBLY - tightener, no. 40 chain, Inlcudes: Ref. 17 - 18

2шт.

17

NSS

NOT SOLD SEPARAT

BRACKET - tightener, no. 40 chain

1шт.

18

G15209

BEARING

RACE - bearing, inner, no. 40 chain tightener bracket

1шт.

T41074

SPROCKET ASSY.

SPROCKET ASSEMBLY - tightener, no. 40 chain bracket, Inlcudes: Ref. 19 - 20

2шт.

19

NSS

NOT SOLD SEPARAT

SPROCKET - tightener, no. 40 chain bracket

1шт.

20

F19478

NEEDLE BEARING,Needle, 31.75mm ID x 41.27mm OD x 19.05mm W

BEARING - needle, no. 40 chain tightener bracket

1шт.

21

T40254

WASHER

- flat, 13/32" I.D. x 2" O.D. x 10 gauge

2шт.

22

193-10

LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 3/8"

2шт.

23

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.
