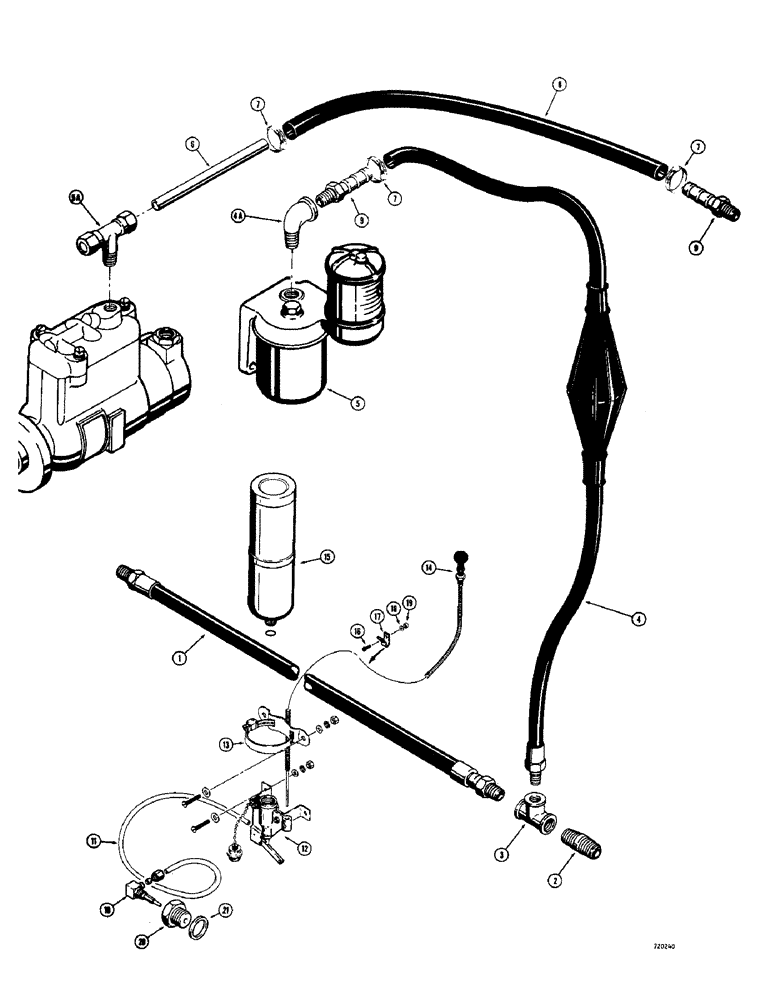

Запчасти Case 1700-SERIES (092) - FUEL SYSTEM 1740, BULB TYPE FUEL PRIMER, USED BEFORE TRACTOR SERIAL NO. 9821903 (10) - ENGINE

1

D53484

HOSE

Fuel equalizer (29" long)

1шт.

2

221-134

NIPPLE, LUBE

NIPPLE Pipe (1/4" x 1-1/2")

1шт.

3

221-430

TEE,1/4" NPT x 1/4 NPT Br

Female

1шт.

4

D53522

PRIMER PAINT

Fuel line (24" long), Use D17341 primer for service - see Figure 090

1шт.

4a

221-375

ELBOW

Street (1/4" NPT)

1шт.

5

REF

INSTRUCTION

FILTER - fuel (Parts list page 056)

1шт.

5a

222-72

TEE,1/4" Flex Tube Run x 1/8" NPTF Br

At injection pump (See page 050 for parts list and related parts)

1шт.

6

T42371

TUBE,0.25" OD x 3" L

Fuel return

1шт.

7

214-252

HOSE CLAMP,#08, 0.5" - 0.91", Type F Worm

3шт.

8

D53521

FUEL HOSE

Fuel return (1/4" I.D. x 12-1/2")

1шт.

9

217-154

FITTING,1/4" Hose Barb x 1/4" Male NPTF

Adapter - hose stem, return hose

2шт.

D55691

KIT

Cold starting aid (Machinery item), Includes: Ref. 10 - 15

1шт.

10

D55946

JET

ASSEMBLY - starting aid (Includes 1/8" compression fitting), cold

1шт.

11

D55947

TUBE

ASSEMBLY - 60" long [Includes two 1/8" compression fittings), cold starting aid

1шт.

12

D55948

VALVE

ASSEMBLY - actuator (Includes plug, chain and hardware), cold starting aid

1шт.

13

D55949

BRACKET

CLAMP - cylinder to bracket (Includes hardware), cold starting aid

1шт.

14

D55950

CABLE

CONTROL ASSEMBLY - cable, cold starting aid

1шт.

15

D55767

CYLINDER

Cold starting fuel, aid

1шт.

D55951

REPAIR KIT

Overhaul (2 "O" rings, 1/8" compression fitting and 3/32" drive pin), cold starting aid

1шт.

16

173-205

X

SCREW - slot head (#10 - 24 NC x 5/8") Zinc plated

1шт.

17

T40341

CLAMP,1/4", 1/4" Bolt

Cable, cold starting aid

1шт.

18

195-513

WASHER,#10

1шт.

19

129-17

NUT,Hex, #10 - 24

1шт.

20

D54833

PLUG

Manifold, cold starting aid

1шт.

21

A20916

MANIFOLD GASKET

WASHER - special

1шт.
