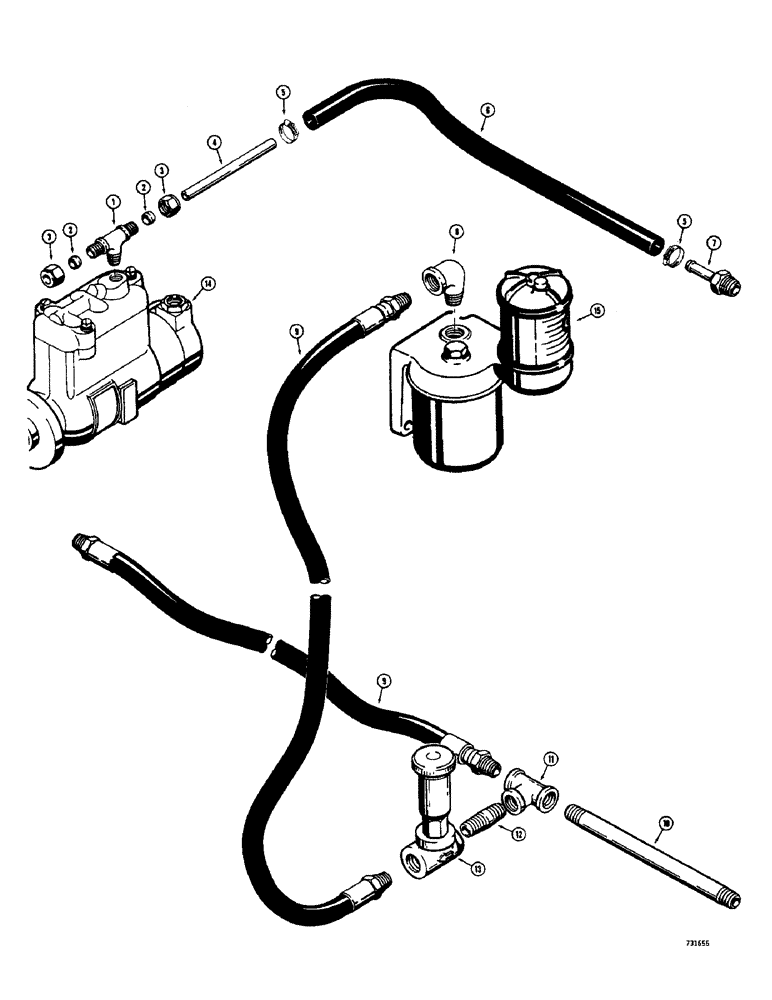

Запчасти Case 1700-SERIES (090) - FUEL SYSTEM 1740, PLUNGER TYPE FUEL PRIMER, USED TRACTOR SERIAL NO. 9821903 AND AFTER (10) - ENGINE

222-72

TEE,1/4" Flex Tube Run x 1/8" NPTF Br

- compression fitting, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

TEE - body

1шт.

2

222-102

SLEEVE,1/4" Tube

Compression 1/4" Tube

2шт.

3

87017024

TUBE NUT,1/2"-24

NUT - compression

2шт.

4

T42371

TUBE,0.25" OD x 3" L

- fuel return

1шт.

5

214-252

HOSE CLAMP,#08, 0.5" - 0.91", Type F Worm

CLAMP - hose

2шт.

6

D53521

FUEL HOSE

HOSE - fuel return (1/4" I.D. x 12-1/2")

1шт.

7

217-154

FITTING,1/4" Hose Barb x 1/4" Male NPTF

ADAPTER - hose stem

1шт.

8

221-375

ELBOW

- street (1/4" NPT)

1шт.

9

D53484

HOSE

- fuel (29" long)

2шт.

Part of Primer Kit P/N D17341

1шт.

10

221-144

NIPPLE, LUBE

NIPPLE - pipe (1/4" x 5-1/2")

1шт.

Part of Primer Kit P/N D17341

1шт.

11

221-422

TEE,Pipe, 1/4" NPT

- female

1шт.

Part of Primer Kit P/N D17341

1шт.

12

221-134

NIPPLE, LUBE

NIPPLE - pipe (1/4" x 1-1/2")

1шт.

Part of Primer Kit P/N D17341

1шт.

13

A60042

PUMP

PRIMER - fuel, plunger type

1шт.

Part of Primer Kit P/N D17341

1шт.

13

A60042R

REMAN-FUEL LIFT PUMP

PRIMER - fuel, plunger type

1шт.

13

A60042C

CORE-FUEL LIFT PUMP

Return Number

1шт.

D17341

KIT

- primer, Includes: Ref. 9, 10, 11, 12 and 13 and instructions

1шт.
