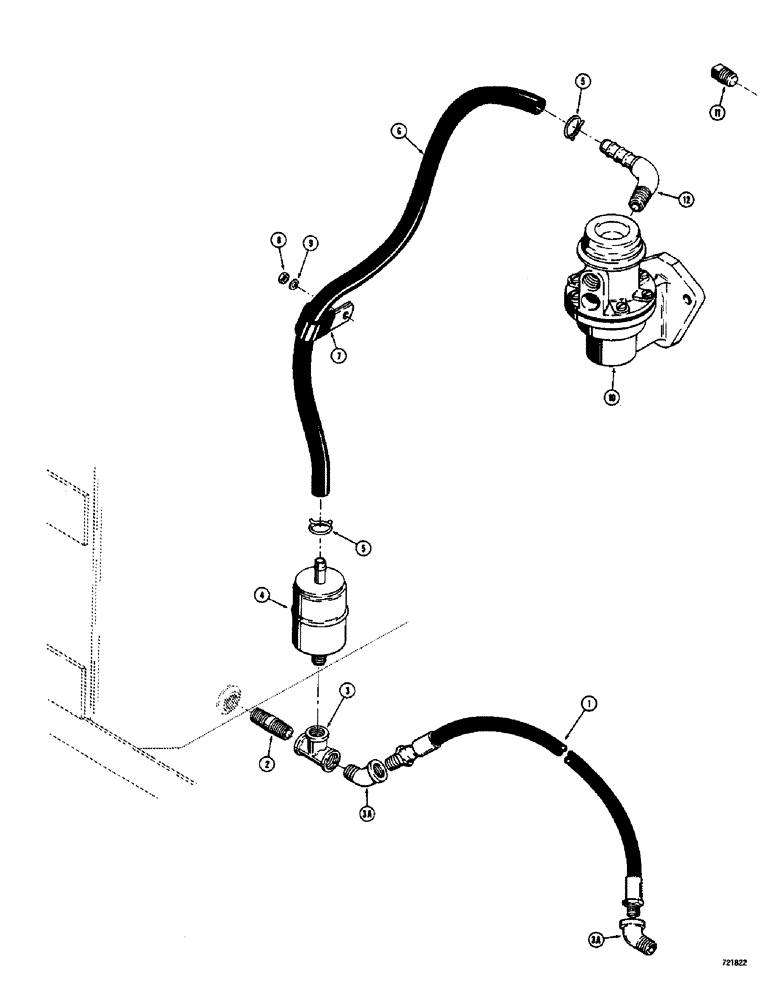

Запчасти Case 1700-SERIES (088) - FUEL SYSTEM, 1737 AND 1737S (10) - ENGINE

1

D53484

HOSE

Fuel equalizer (29" long)

1шт.

2

221-134

NIPPLE, LUBE

NIPPLE Pipe (1/4" x 1-1/2")

1шт.

3

221-430

TEE,1/4" NPT x 1/4 NPT Br

Female

1шт.

3a

221-402

ELBOW,45 Degree, 1/4"-27, NPT

Street

2шт.

4

D53499

FILTER

ASSEMBLY - fuel

1шт.

5

214-104

HOSE CLAMP,#9, 9/16", Spring

2шт.

6

D53485

SPARE PART Fuel (5/16" I.D. x 22" long)

1шт.

7

49771

CLAMP

Fuel line, at flywheel guard

1шт.

8

25-1010

NUT,5/8"-11, G5

1шт.

9

92-10

LOCK WASHER,5/8"

1шт.

10

REF

INSTRUCTION

PUMP - fuel (Parts list Figure 024)

1шт.

11

221-12

PLUG,Sq Hd, 1/4"-18

Pipe

1шт.

12

217-131

ELBOW - 90 degrees

1шт.
